2020 Blind Joint Jig
SKU 3DPW-pr-773015
$30.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~46 g
- Print time
- ~2.5 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

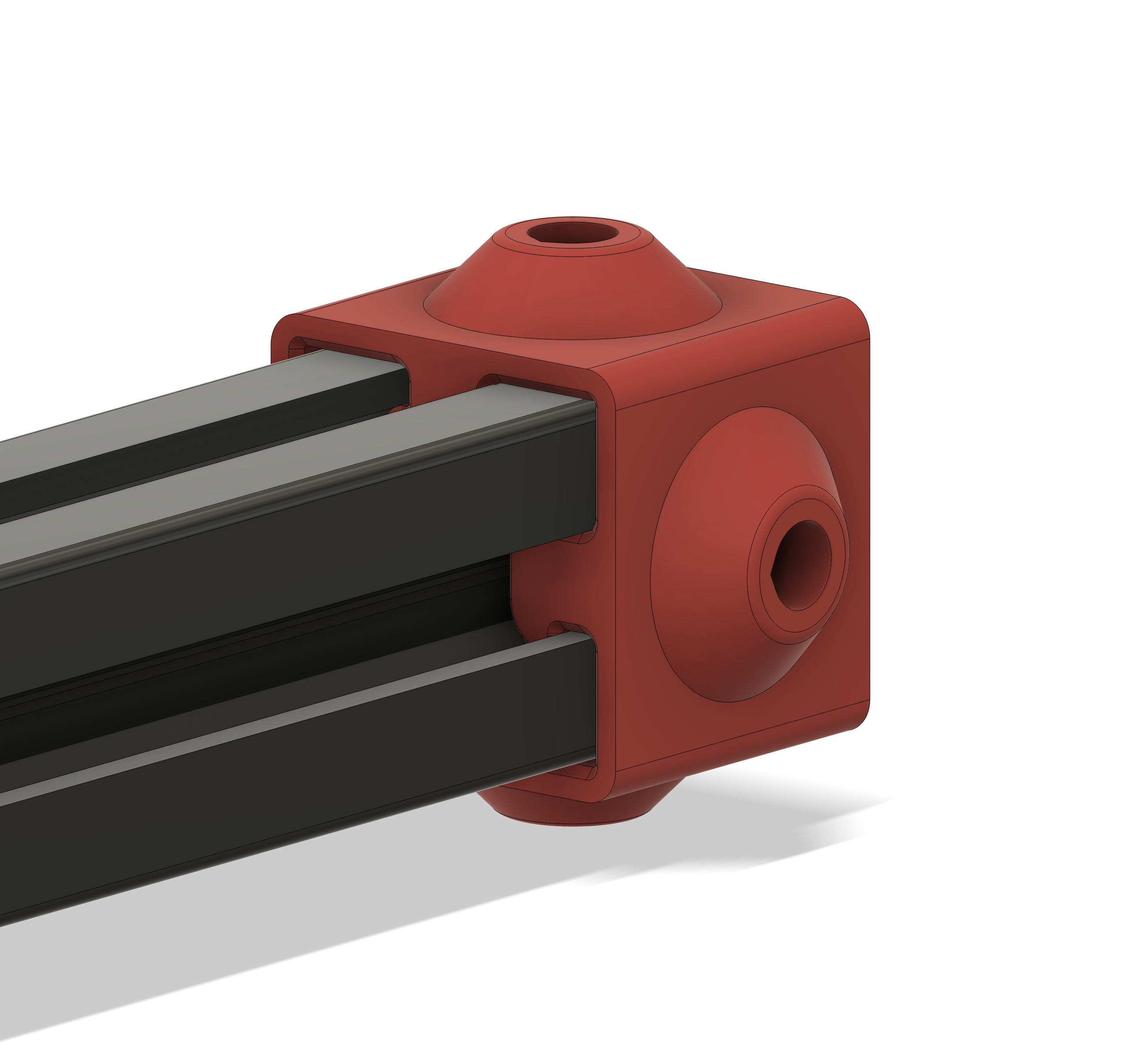

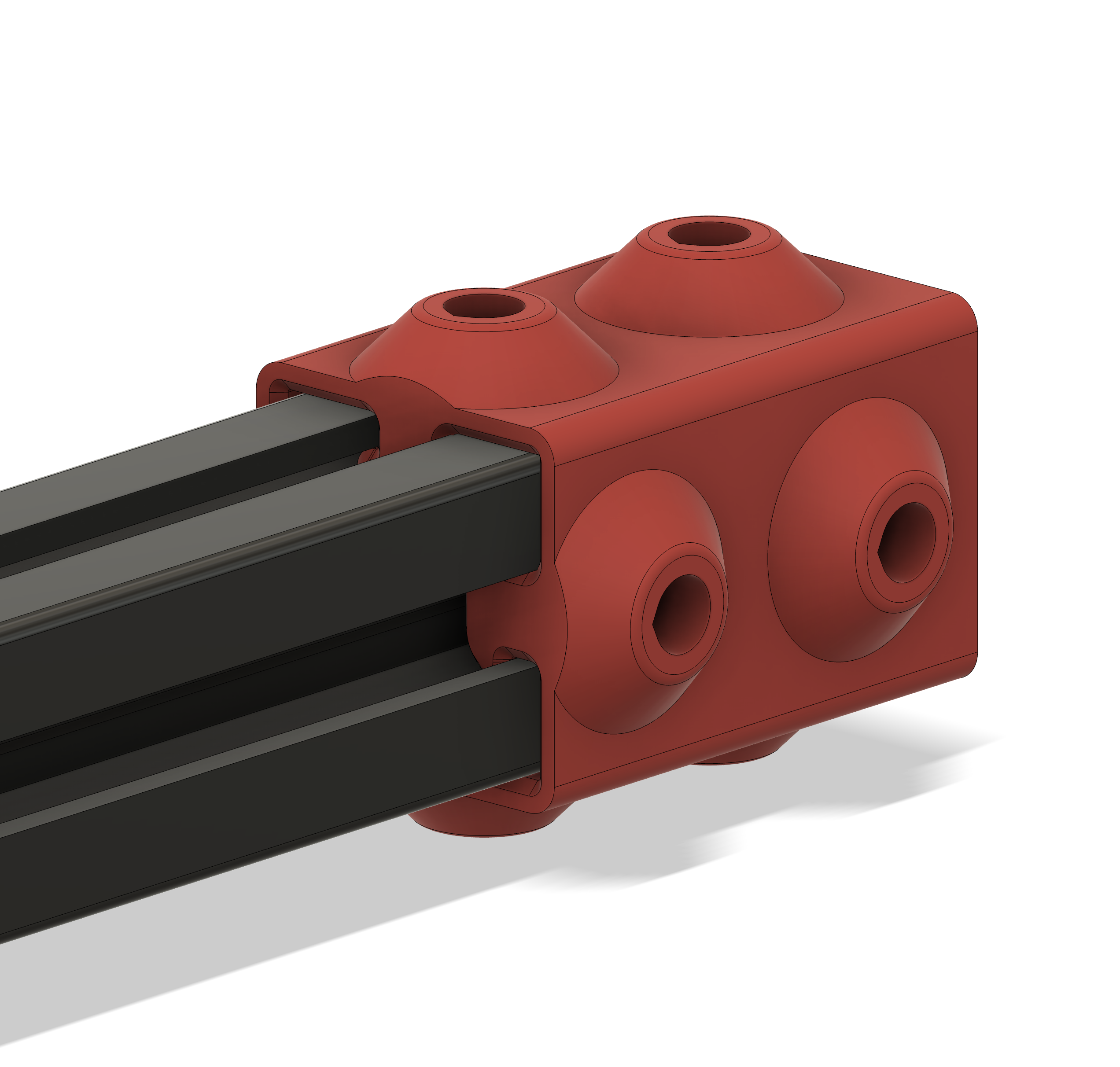

V2) Update: Designed a new one based on what I've learned from using the first design. The drill bit insert holes are now stronger and print better.The tolerance is improved, and it should go in easier.It uses less materials and prints faster.Added a 2020 to 2040 jig as well. Use this jig to accurately drill holes into 2020 aluminum extrusions for blind joints. Just insert firmly and it will friction-fit in place firmly. Use 5mm or 3/16" drill bit to make the holes. If the fit is too loose or too tight, adjust your extrusion percentage accordingly. Can also be secured with an M5 screw from the top.
Tags: joint, jig, 2020, 2040, blindjoint, resin print, nz made, made to order
Design credit: Original design by Monfared - licensed under CC0.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
2020 Blind Joint Jig is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
