2020 Extrusion Drill Jig
SKU 3DPW-pr-825090
$16.50NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Print time
- ~0.6 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

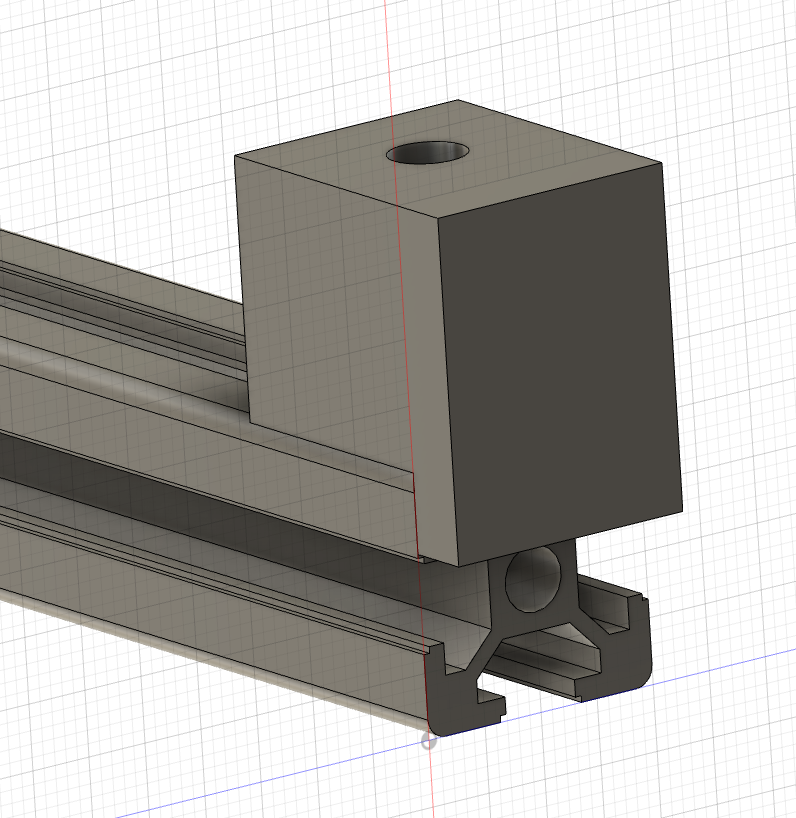

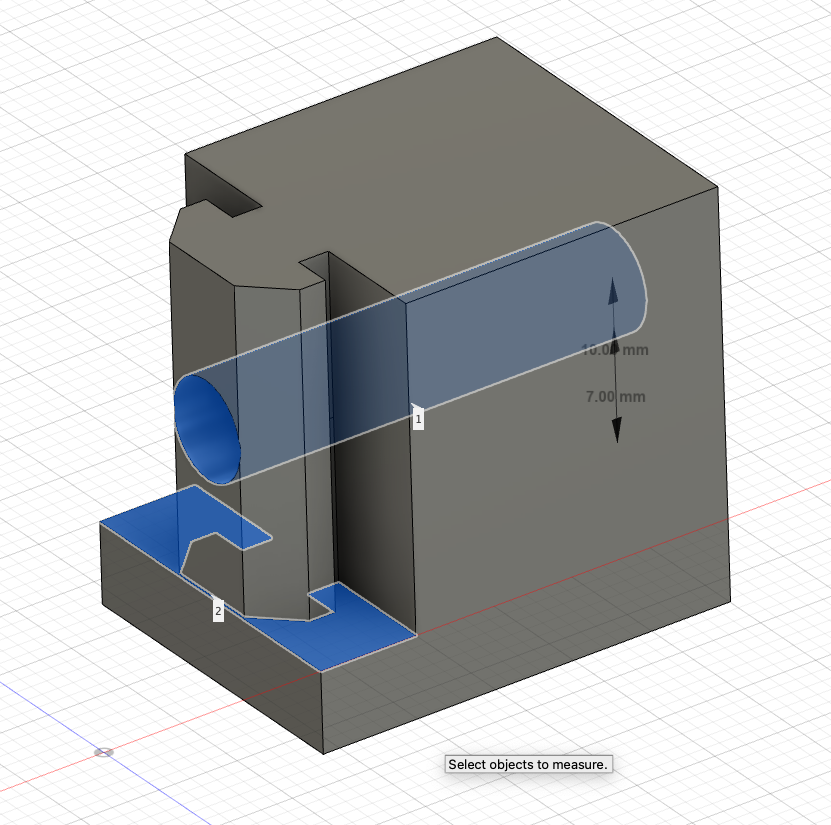

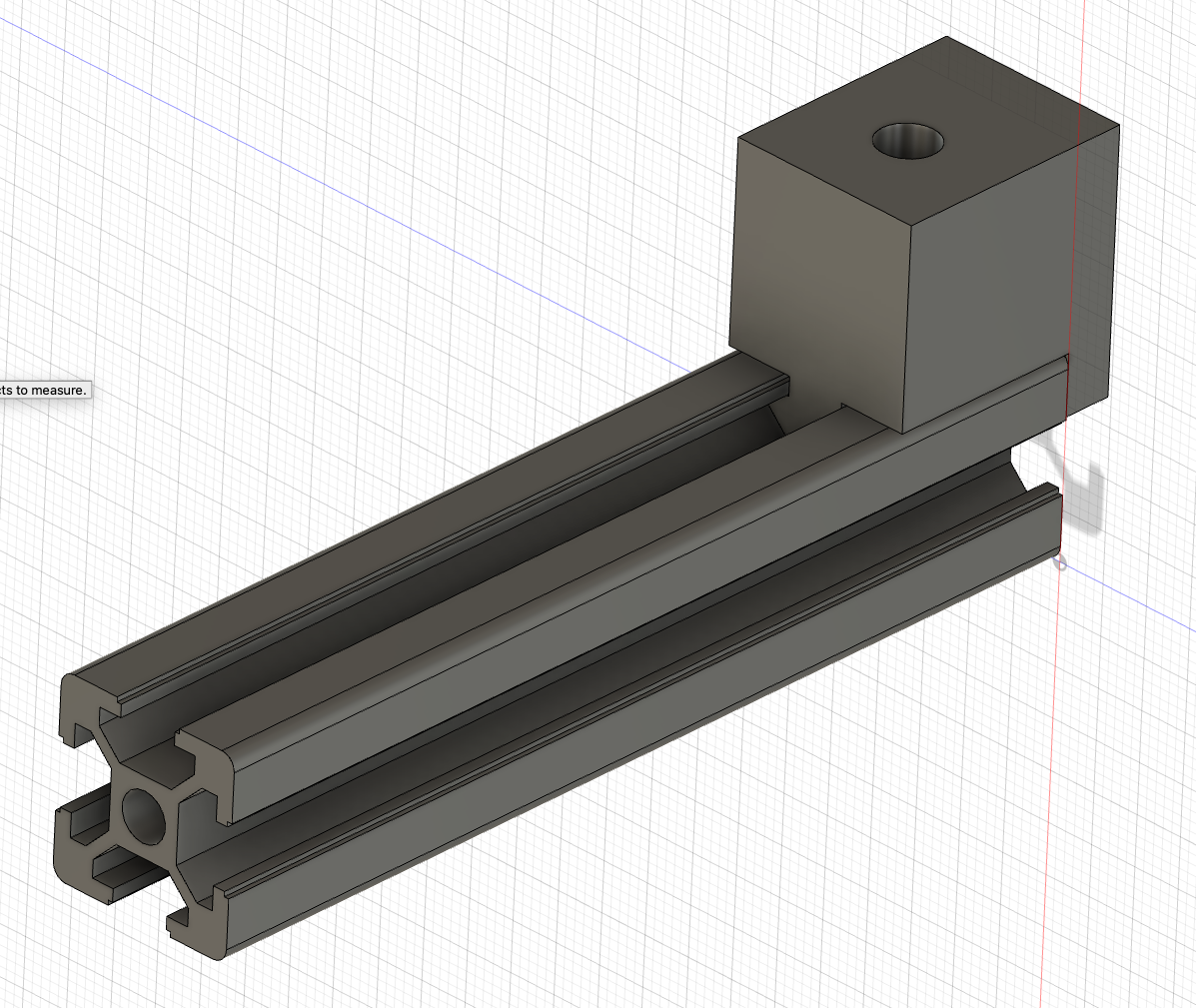

Drill Jig, for the 2020 extrusion so that it can be drilled at the end of the extrusion, make threads on the other extrusion, and bolt them together. 10 mm from the end of the extrusion6mm drill sizePlease note that this is quite a tight tolerance to the extrusion so that there is no play when fitting it in and drillingI would recommend putting at least 4 perimeters since when drilling aluminum will rub out the plastic and the drill will have some play, probably a better design for durability would be to add a metal busingPlease let me know if you need any other size If you like this model? Hit a Like above and Make Also, feel free to check out my other uploads
Tags: drill, jig, 2020, 2020extrusion, voron, resin print, nz made, made to order
Design credit: Original design by CinIs2Fast4u - licensed under CC-BY-SA.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
2020 Extrusion Drill Jig is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
