50mm air hose, vacuum, or pipe system: Adapter, angle, connector, and clip collection, threaded

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

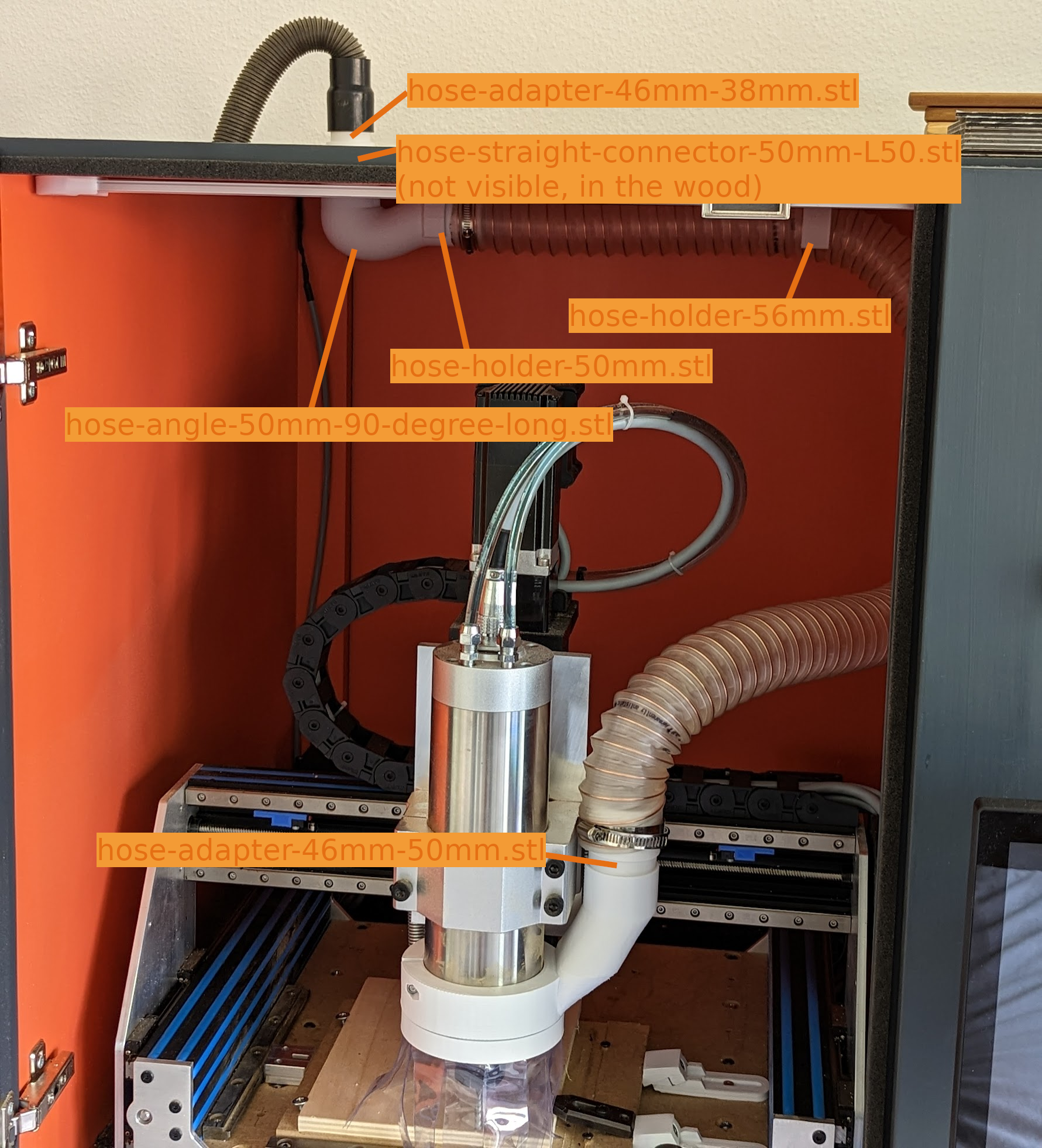

I made these models to route an air hose with a 50mm inner diameter. It can also be used with my CNC spindle dust shoe or with my vacuum nozzle. Part listhose-adapter-46mm-38mm.3mf Simple straight adapter. Both dimensions are outer diameters. The 46mm end is made to fit into the hose-straight-connector-50mm.3mf (see below).hose-adapter-46mm-50mm.3mf Simple straight adapter. Both dimensions are outer diameters.hose-angle-50mm-90-degree-long.3mf Angled long adapter as shown in the title photo. Short end: 50mm inner diameter. Long end: 50mm outer diameter.hose-angle-50mm-90-degree-short.3mf Same as before, but shorter.hose-holder-50mm.3mf Clip to secure the hose-angle-50mm-90-degree-long or anything else with an outer diameter of 50mm to a wall or ceiling.hose-holder-56mm.3mf Clip to attach the hose (~56mm outer diameter) to a wall or ceiling.hose-straight-connector-50mm-L40.3mf Straight pipe with 50mm outer diameter and 40mm length, with a lip to attach it to a wall.hose-straight-connector-50mm-L50.3mf Slightly longer (50mm length in total) version of before.Added April 2024Threaded hose adapter to 46mm outer diameterThreaded hose adapter to 38mm outer diameter (for my small Makita vacuum hose)If you are missing any piece let me know and if it isn't too much work maybe I will help out. I also included the FreeCAD source file, so you can edit it on your own without any proprietary software. Please share the models if you make your own. If you are in the EU and want to support my work, I can also print and send these models to you. Please contact me for an offer in that case. Or you can support me by buying something from my shop.
