Jigs & Guides
Bambu Lab Nozzle Wiper ptfe jig
SKU 3DPW-pr-276071
$57.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~40 g
- Print time
- ~4.5 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

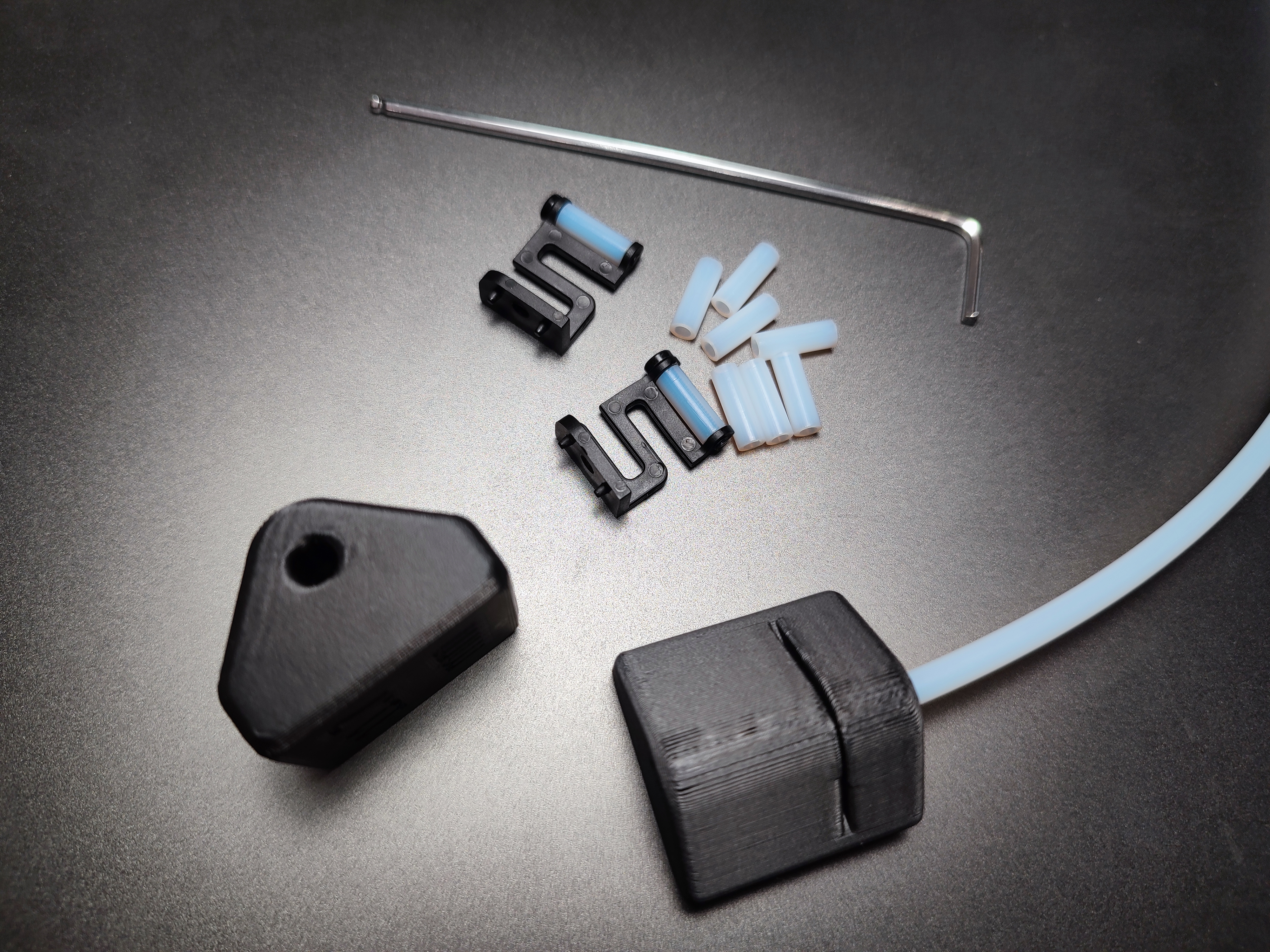

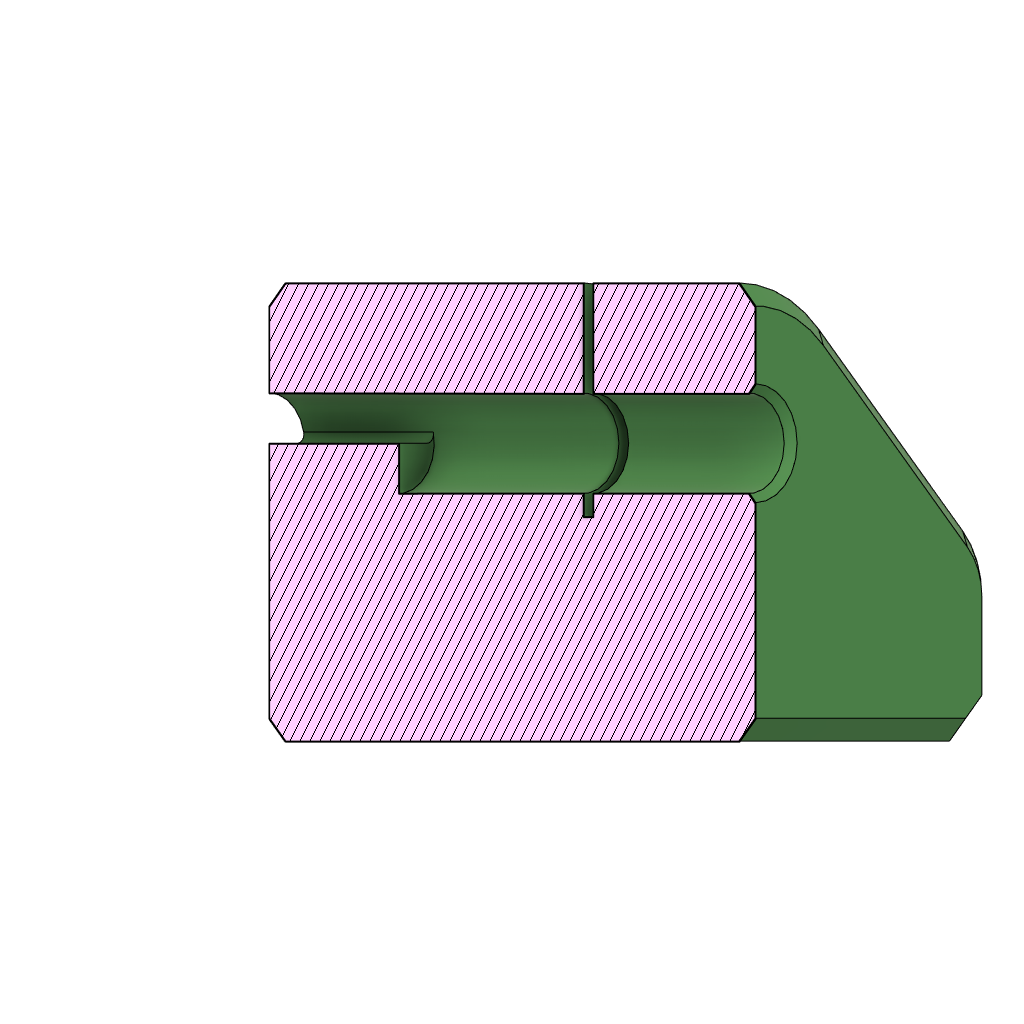

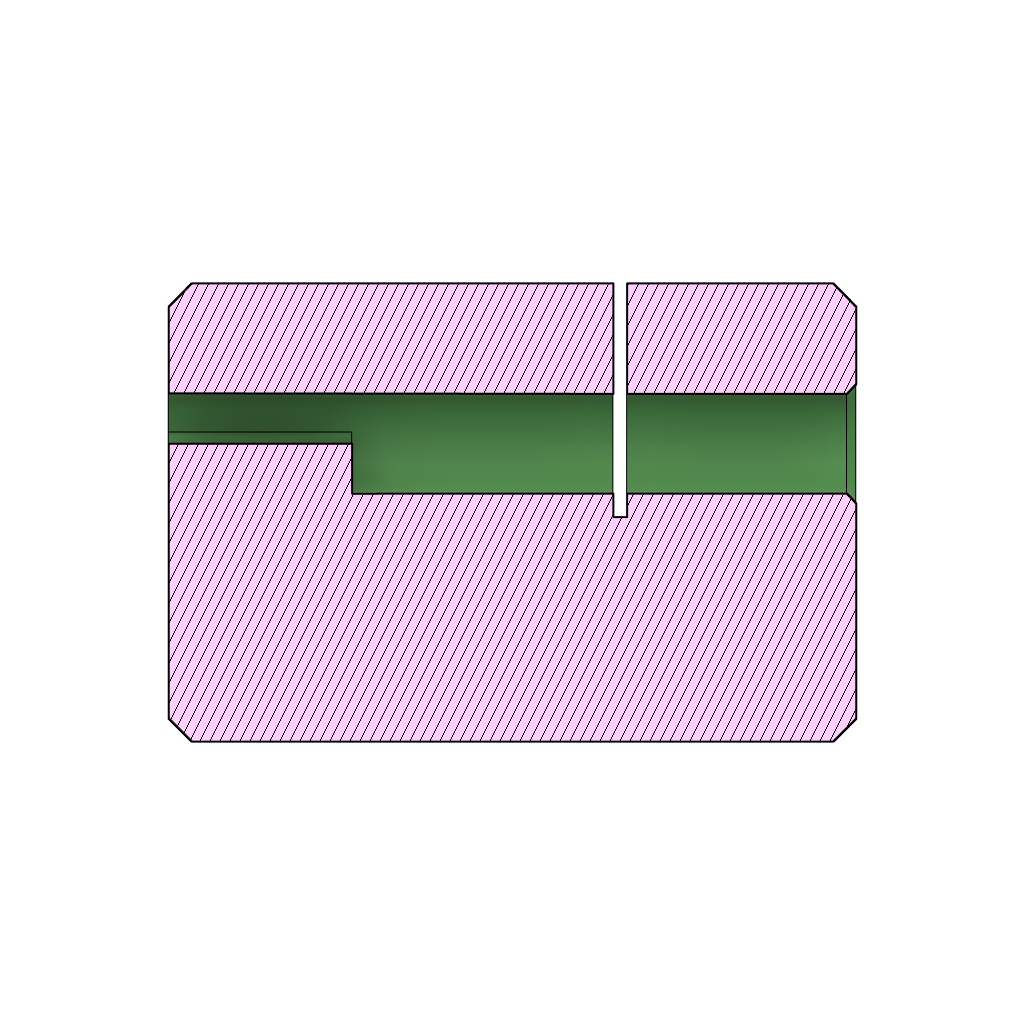

Update 22 April 2023I have made some minor edits to the design and also included the STEP file if anyone needs it to do some editing. All the best. INTRODUCTIONThe nozzle wiper on the X1/X1C is one of the most abused parts of the printer. Especially if you are printing multi-colours. It gets smacked left-right by a hardened steel nozzle. The PTFE tube gets scarred very quickly, making the wiping less efficient. Instead of throwing away after replacing it with one of the spares. You can straighten it up and replace the PTFE tube. The length needed is around 11.7 - 11.8mm. This is a small jig for cutting the tube (OD4mm ID2.5mm) to replace the used ones on the nozzle wiper. If you like my designs and want to contribute to my coffee addiction, a donation of $2 to Ko-fi or paypal.me will be greatly appreciated. CaveatAs with all my designs, it may and may not work for you. So print and install at your own discretion.
Tags: recycle, nozzle, jig, ptfe, wiper, resin print, nz made, made to order
Design credit: Original design by thrutheframe - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Bambu Lab Nozzle Wiper ptfe jig is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
