Bosch Professional GOP Dust Extractor / Vacuum Adapter

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

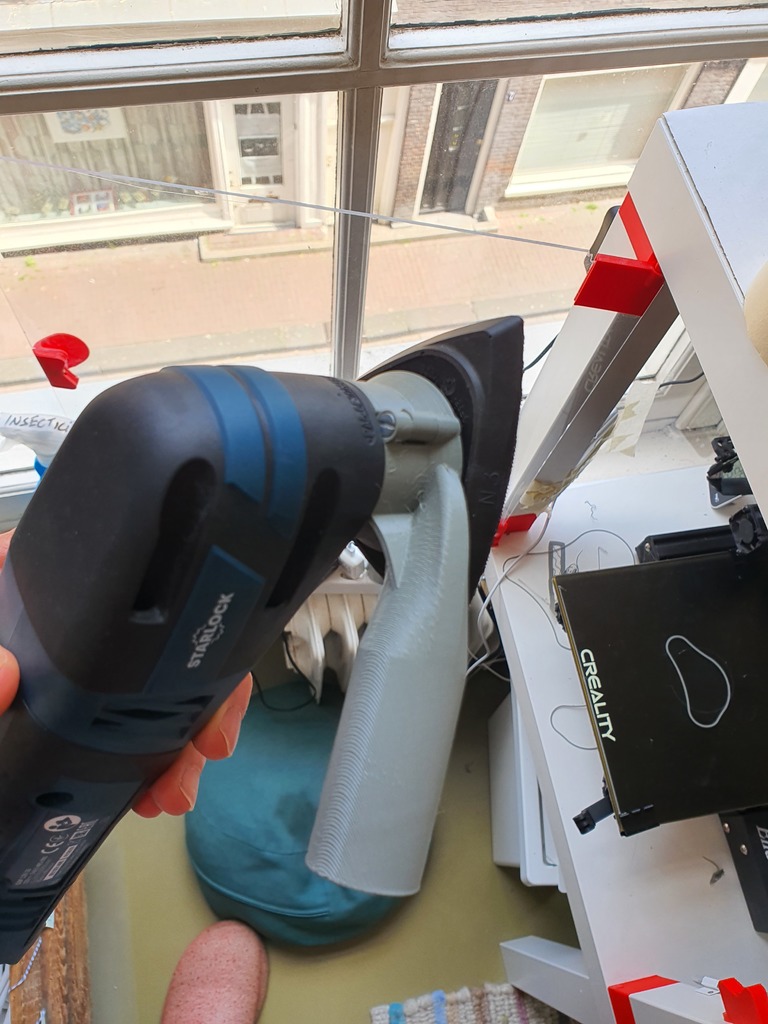

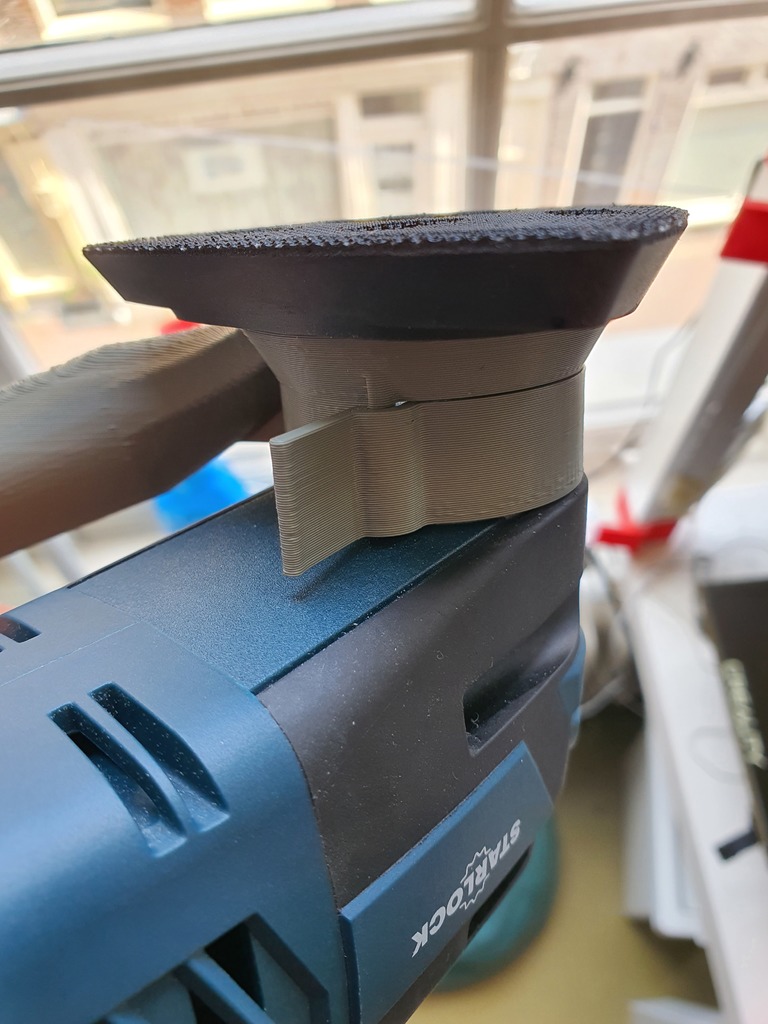

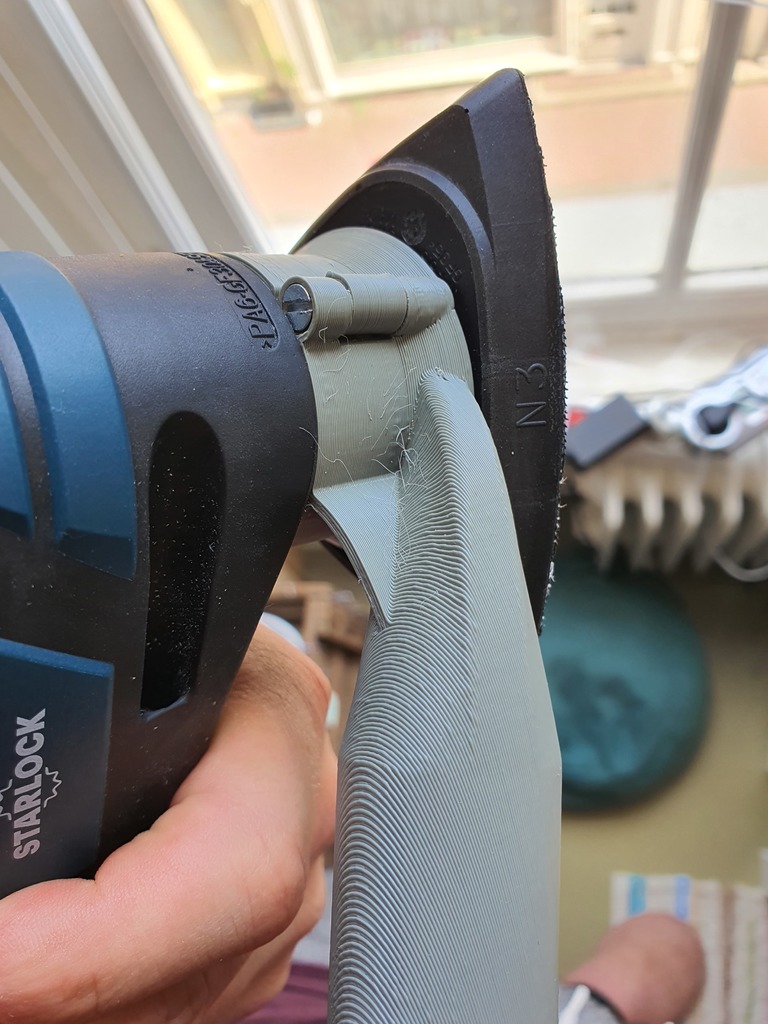

This is a simple part which allows you to connect a vacuum cleaner to your multitool when using the sanding pad. This part covers the holes of the pad and allows the vacuum cleaner to suck the dust in. I used it so far only to sand down a large cutting board in my kitchen and it worked great and way better than I ever anticipated. See a demo here: https://youtu.be/GLz9XJINvN8 I used a GOP 12V-28 but this part should be compatible with all Bosch GOP versions as Bosch is selling a similar part using the same mounting mechanism: https://www.boschtools.com/us/en/boschtools-ocs/oscillating-multi-tool-attachments-osc005-144104-p/ The clip is sometimes a little hard to click into place. Push not on the end of the little lever but directly on the body. Pull the little lever to release. You'll figure it out! Once it's mounted you can hang the tool from the adapter, it's very strong. The hose adapter has an outer diameter of 27.1mm which allows me to connect my Phillips vacuum cleaner to it. LET ME KNOW IF YOU NEED AN OTHER DIAMETER )or edit it in the Fusion file, it's a parameter). For assembly you need one 20mm M3 screw with a countersunk head (a "normal" head might work as well but doesn't look as sexy). You need supports under the pipe part for printing, the insight does not need support! The model already contains custom support for the hinge, remove it with pliers to make space for the lever :) Category: Machine Tools
