BROR Enclosure V2

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

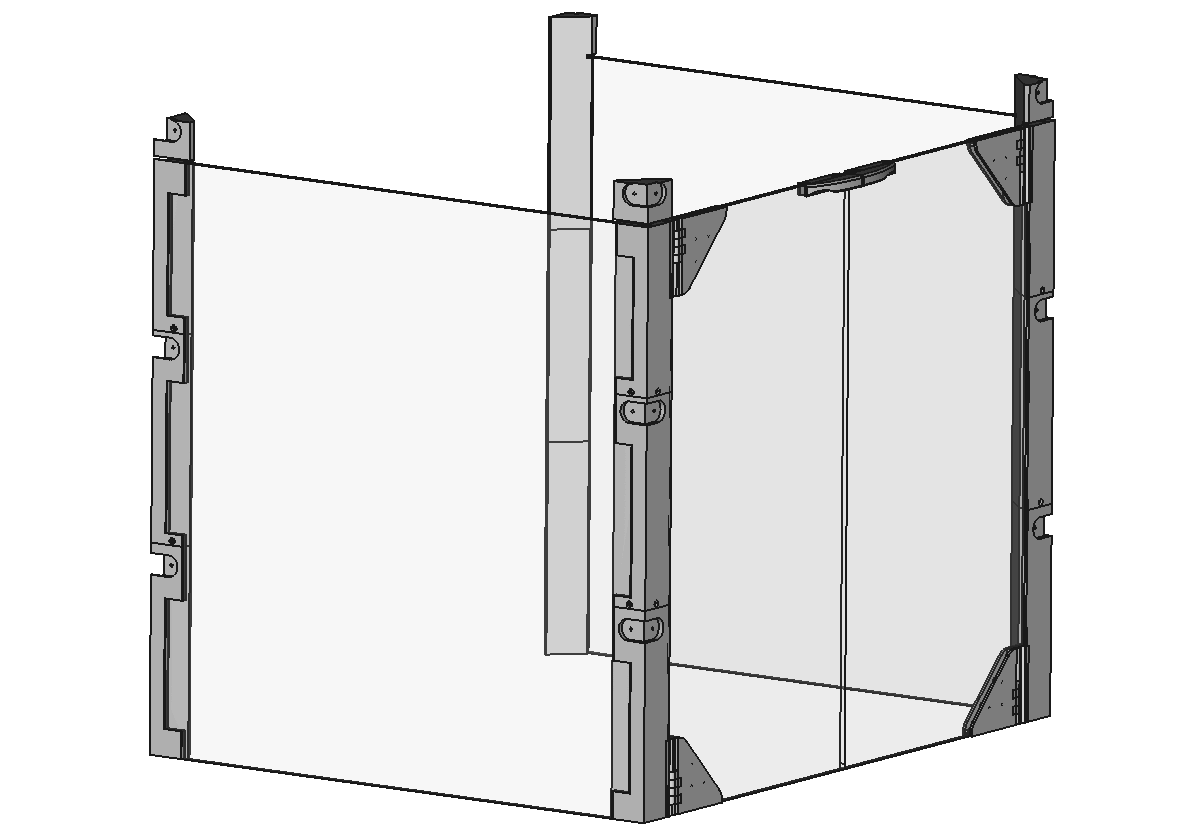

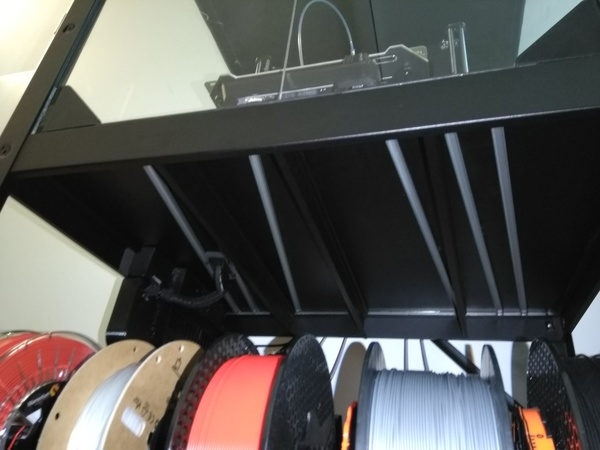

UPDATE Shelf support holder I added optional holder brackets for the two additional support beams (see instruction pdf page 1). Those can be used when the supports are not held securily by simply quenching them into the frame. If used, print 8 copies of it, add a M3x5mmx4mm heat insert into each of those into the exterior side of the screw hole and install an M3x8mm hex screw flush into each bracket. Insert the bracket in the frame to sit flush with the support beam and then lock it in place by tensioning the screw as much as needed. Add a bracket to both sides of the support beam at the front and at the back. UPDATE V2 I modified the pillars so that they are now modular. The original design was for an enclosure 3 levels high. With the updated version the height is modular, with a minimum of 2 levels. For every additional level you can add one more “mid”-pillar piece in between the “bottom” and “top” pillar piece. The pillars are also compatible with the wider BROR shelf. The supplied dxf files are still designed for the standard height of 3 levlels. If you choose a different dimension for your BROR enclosure please adjust the panel cuts accordingly. You will also need a custom cut backplate or an adapter plate in combination with the upright shelf floor. If you want to build the standard size, the instruction guideline from V1 still applies. The original version V1 files are still attached in an zip file. ________________________________________________________________________________________________________________ BROR, the powder coated steel enclosure alternative to LACK. This is the first version of my custom BROR enclosure designed for MK3s+MMU2s. If you want to add the air filter unit including fan control look first for the air filter upgrade here: https://www.prusaprinters.org/prints/36190-bror-enclosure-v1-air-filter-upgrade Assembly instructions are here: https://files.printables.com/media/prints/34759/other_files/3926688_7395a062-7f8d-49b4-8e27-22223d18aa57/bror-enclosure-v1-assembly-instructions-v2.pdf The model files are supplied as is, if you find some problems please let me know and I will try to resolve the issue. This version does not include yet the spool holder visible on the pictures. Print instructionsPrint list (stl files): All objects have to be printed in the original form and as mirrored version. Of the two hinge objects, original and mirror have to be each printed in duplicates. Pillars have to be printed vertically; Settings: PETG black, 0.2 mm resolution, 1 cm brim, 4 perimeters, 30% infill, 60% infill around hinge extensions of front pillars. Support where needed. Hinges and door handle have to be printed on their flat side, PETG black, 0.1 mm resolution 4 perimeters, 100% infill. Print slow. Cutting list (dxf files): 2x Side wall cut out 1x front door cut out Additional necessary mods: Prusa i3 MK3 60 degree heatbed cable cover (screws) Prusa i3 MK3s Frame brace instead of black PSU Purchase list: 1x Bror Post, black 110 cm (IKEA, 003.332.78) 4x Bror Shelf, black 64x54 cm (IKEA, 403.827.85) 4x 60 mm M3 screw with counterbore head (for example: https://www.amazon.de/gp/product/B07MKMBPBW/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1) 12x 8 mm M3 screws with countersink head M3 screws with counterbore head and washers (black) assorted lengths (for example: https://www.amazon.de/gp/product/B07QFLQTLD/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1) NBR strips (4 mm x 10 mm, 8 mm x 15 mm) EPDM strips (2mm x 10 mm) EPDM round cord (2 mm diameter, 2 m) 5x40x40 cm stone plate, black (~15 kg, from a hardware store) Custom cut PMMA plates: 2x PLEXIGLAS® XT clear 0A000 GT, thickness: 5 mm; Dimensions 540 x 560 mm 1x PLEXIGLAS® XT clear 0A000 GT, thickness: 5 mm; 650 x 560 mm For example from here: https://www.plexiglas-shop.com/at/produkte/plexiglas-xt/pl0a000gt.html?varselid[0]=9358966f9129b43c36e38779d75f37bf Necessary equipment: Laser cutter
