CLIPGEAR - Infinite Modular Snap-Together Gear System

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

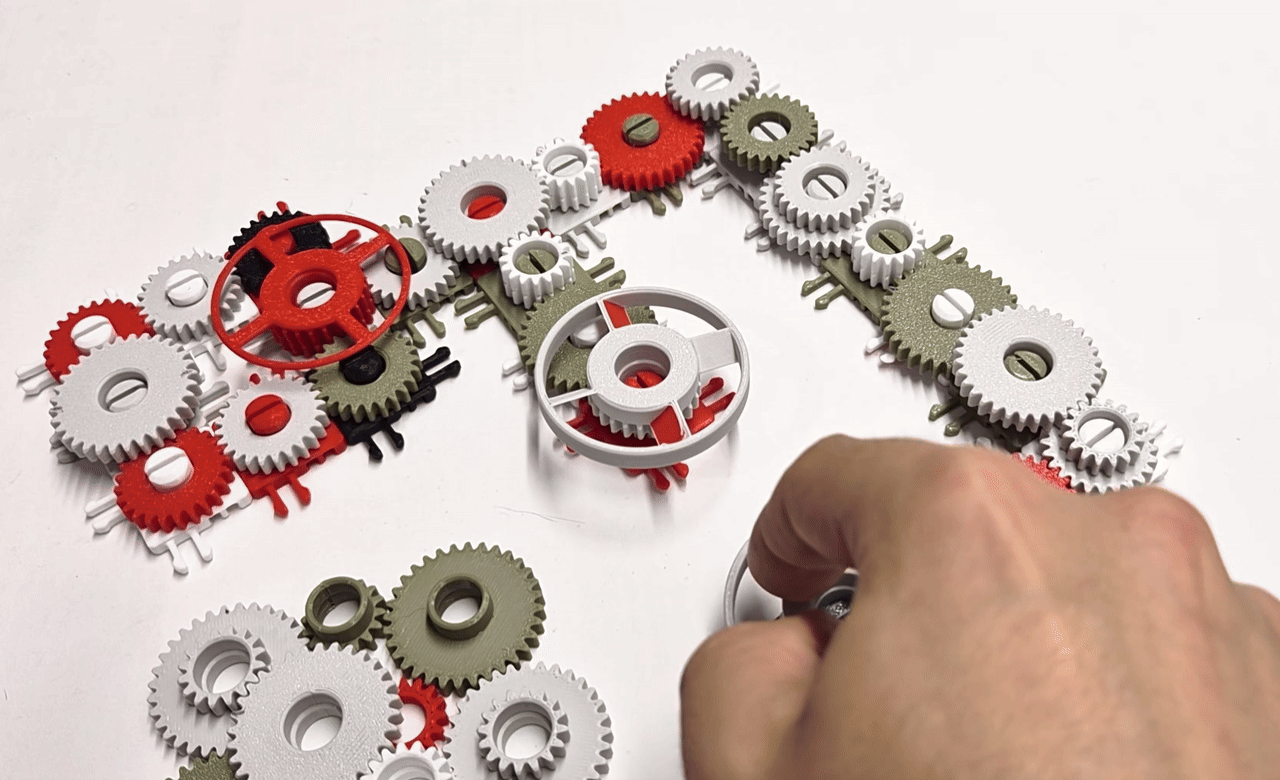

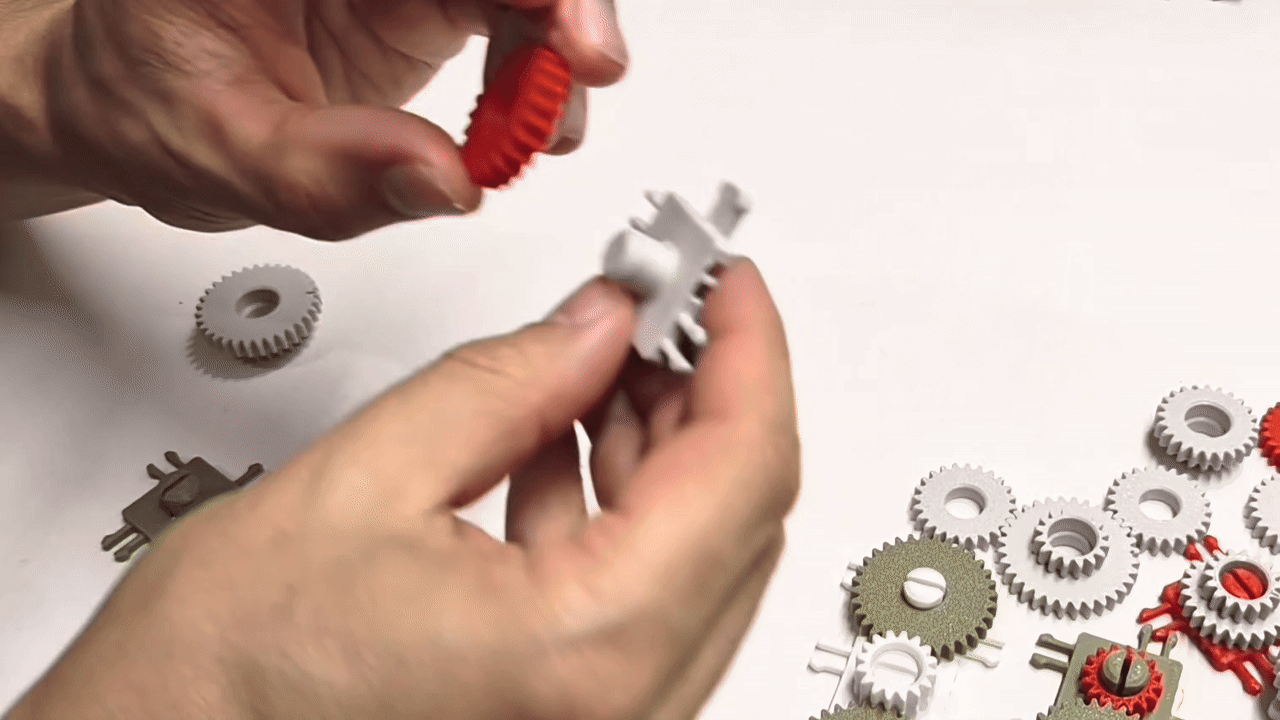

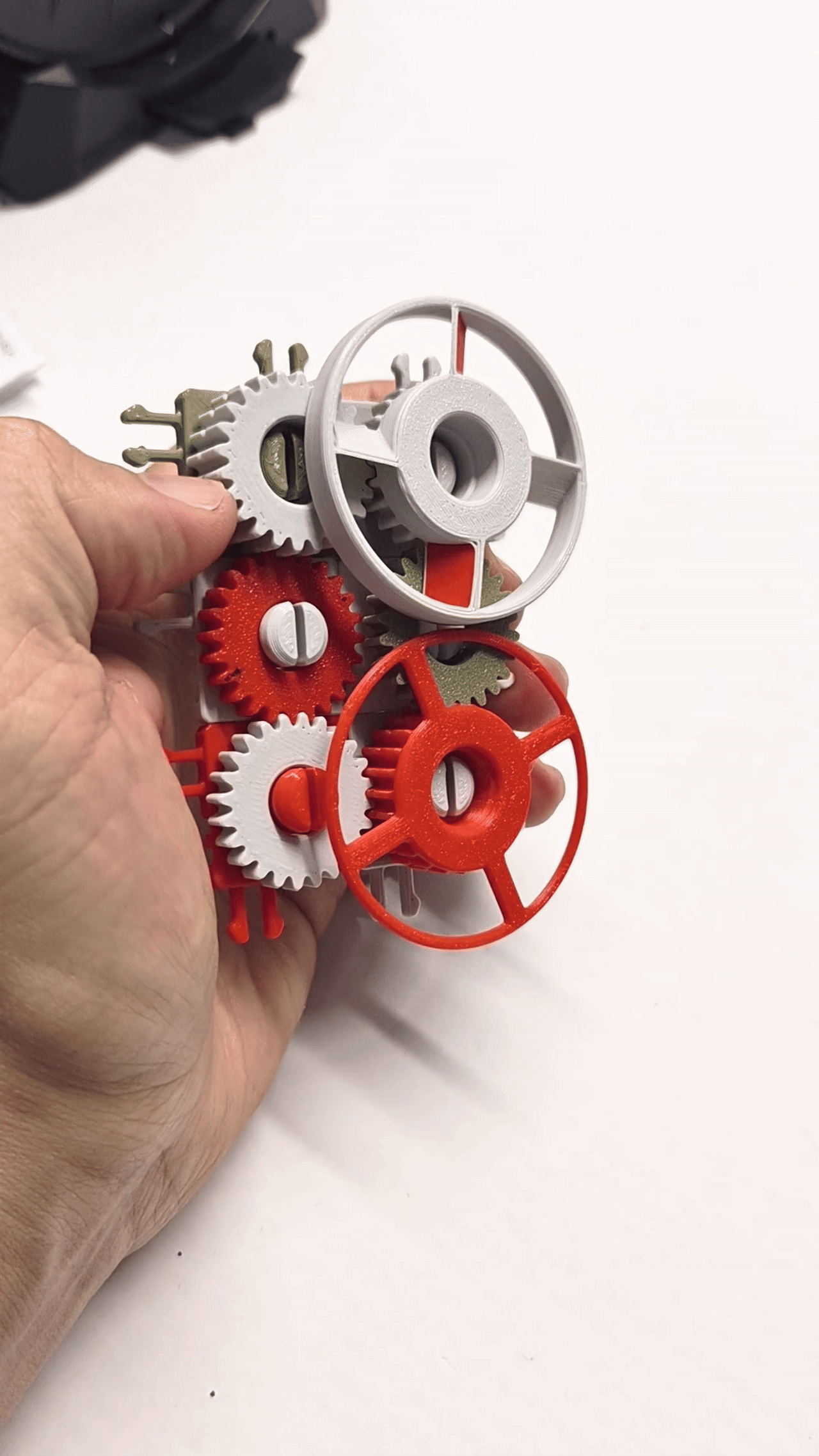

CLIPGEAR is an infinitely expandable, modular gear system. Snap the bases together, clip the gears on, and build your own mechanical creations - or simply use it as a satisfying fidget! The system is designed to be simple, lightweight, and endlessly expandable. It supports 1:2 and 2:1 gear ratios, allowing you to trade speed for torque, or torque for speed. It also includes a variety of gears and special parts, including gears with a wheel and a fan, with more possibilities to come. A Multiboard-compatible base is also available: https://www.printables.com/model/1810595-multiboard-base-for-clipgear Gear Sizes & FilesGears are available in 16, 24, and 32 teeth. Files are named Gear X-Y, where: X = bottom gear Y = top gear For example, Gear 16-32 contains a 16-tooth bottom gear and a 32-tooth top gear. PrintingNo supports required 0.20 mm layer height recommended PLA or PETG both work well. PETG on the base makes the connections easier Low infill required Updates2026-08-22Added a variation of the base with a tighter gear pin, to reduce wobbly. Added a new two-part crank! No supports needed!
