Complicated Hinge

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

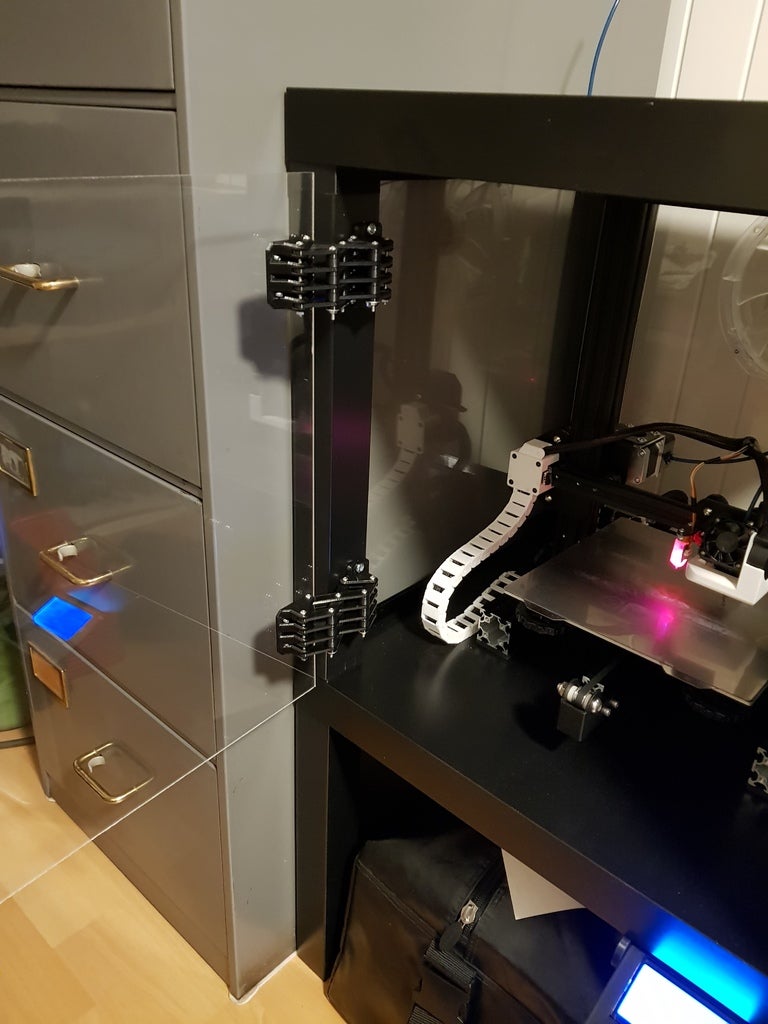

A form over function hinge designed for my Ender 3 enclosure. Due to my specific case the hinge is 47mm in depth from the door-mount, which works well when using a 3mm plexiglass door with an IKEA Lack enclosure. If you want to edit the hinge, a .step file is included. Since Fusion apparently didn't care how I oriented parts before export, remember to lay them flat before printing. Parts for a complete assembly: Printed: Door-mount: 1 Wall-mount: 1 Short Finger: 6 Long Finger: 6 Spacer: 9 Short Spacer: 6 Short Finger - top: 1 Long Finger - top: 1 (The "top"-variants don't have the friction-reducing bulge on the exposed holes.) Bought: 50mm M3 machine screws: 7 5mm wood screw: 2 M3 screw (length depends on door thickness): 4 Print instructionsPrinter Brand: Creality Printer: Ender 3 Rafts: No Supports: No Resolution: 0.12 to 0.2 Infill: 16% Filament: Clas Ohlson PETG Black Notes: Print with 3 perimeters for strength. PETG recommended for reduced friction and stronger parts.
