D&D Fold-Out Dice Tray

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~64 g

Print time

~3.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

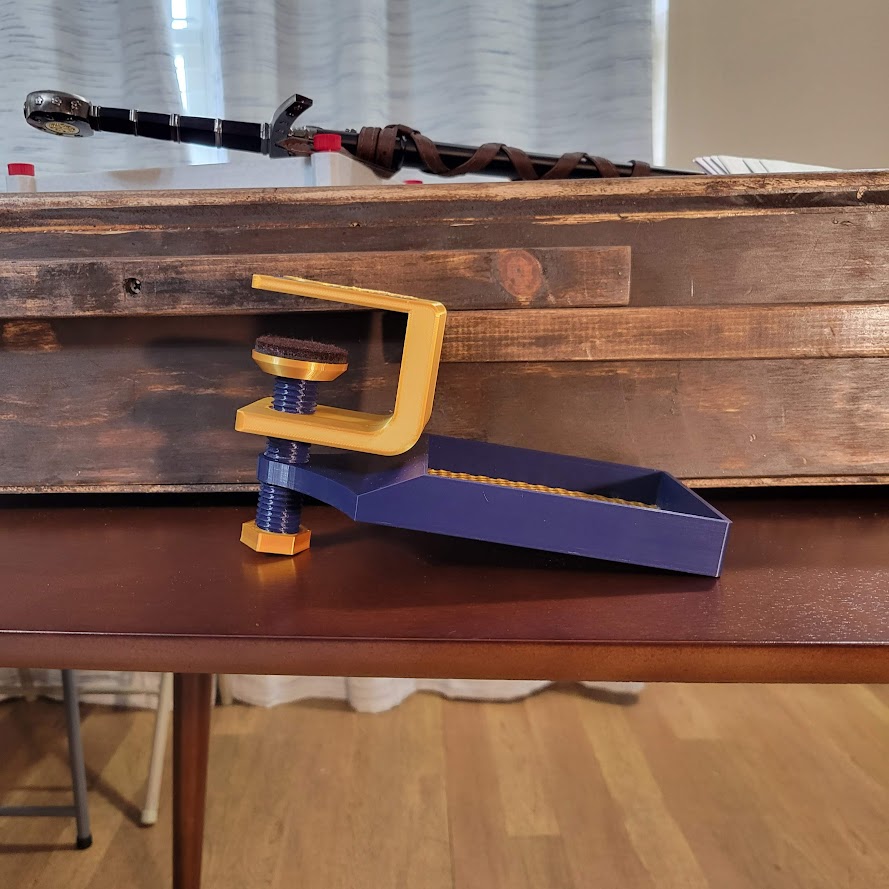

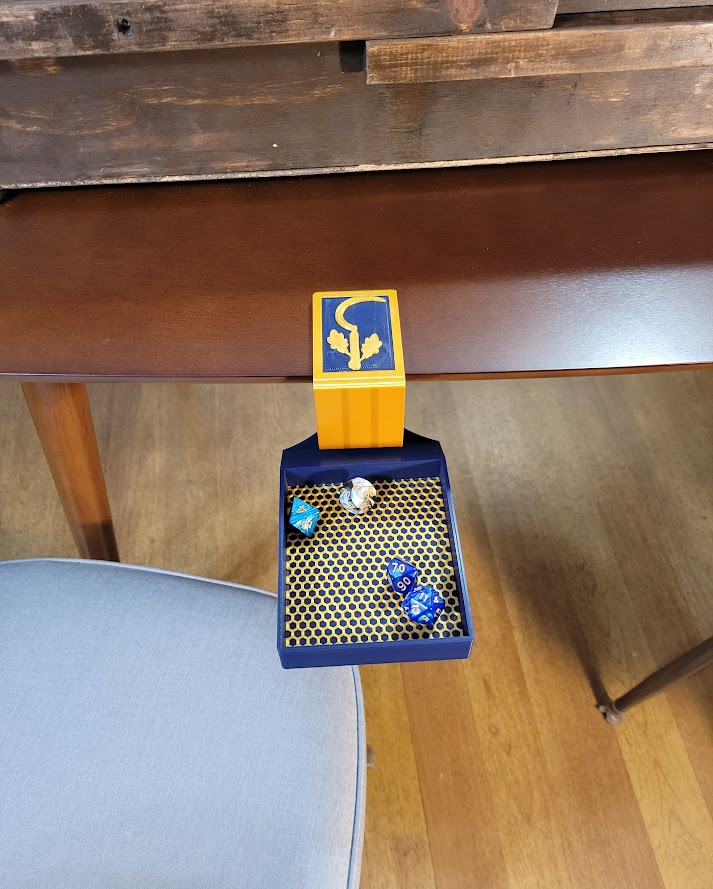

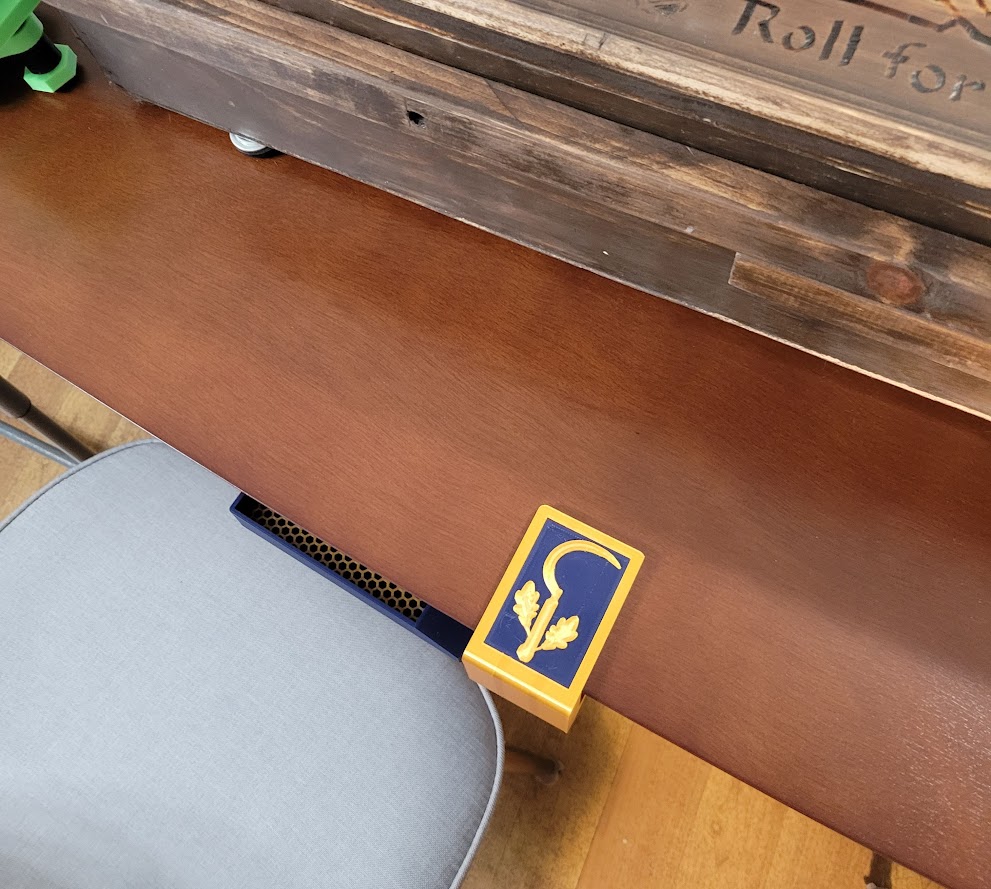

This Dice Tray is designed to attach onto your table and easily swivel underneath the table to clear up space when needed. My friends and I have D&D at my house every other week and with 7 players things can get a bit crowded. I wanted to create a Dice tray that would allow people plenty of space to roll their dice without taking up too much space on the table. Very happy with how these came out. I think they look great and they work exactly how I wanted. I would love to see others makes, I've also included the F360 files in the description of the parts for easier remixing. Vice Toppers:I've included Symbol toppers for all of the 13 major D&D classes. I have also included Topper_Blank in case anyone would like to remix their own symbols. It's just a 59.2 x 39.3 x 1.5 mm box. Tips:I printed the Vice_Screw and Dice_Tray with Rafts. During my tests any significant amount of elephants foot occurring on the threaded areas caused the screw to bind. Rafts completely resolved that issue.I found that printing Vice_Body without supports led to the best overall print. My tests with both standard supports and tree supports messed up the threads and made the print unusable. I designed Vice_Top to fit 1 ½ inch Felt pads that I had laying around to protect the bottom of my table. I added some craft foam to the bottom of the vice to protect the top of my tableI've included two different screws (Vice_Screw_Short, Vice_Screw_Long) to accommodate different Table sizes without having too much of the screw jutting out from the bottom. Print Settings:Printer: Creality Ender 3 Build Plate Adhesion: Rafts Strongly Recommended for anywhere that the threads touch the build surface (Dice_Tray & Vice_Screw) Supports: No Resolution: 0.16mm Infill: 20% Filament: eSUN PLA+, 3D Solutech PLA, TTYD3D Silk Gold
