E-Paper Display Tap Handle

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

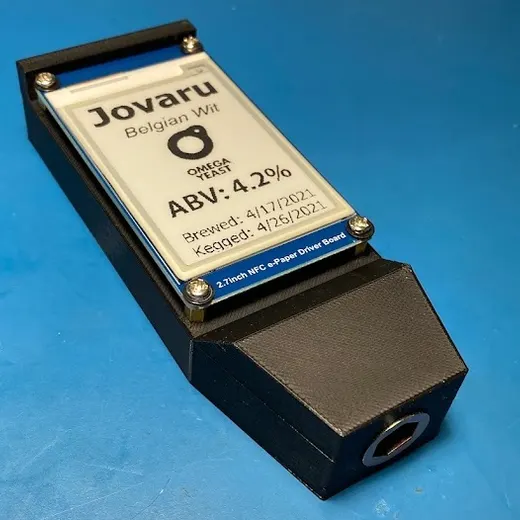

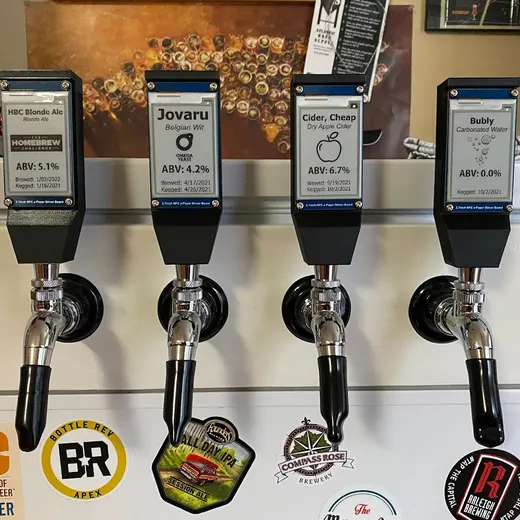

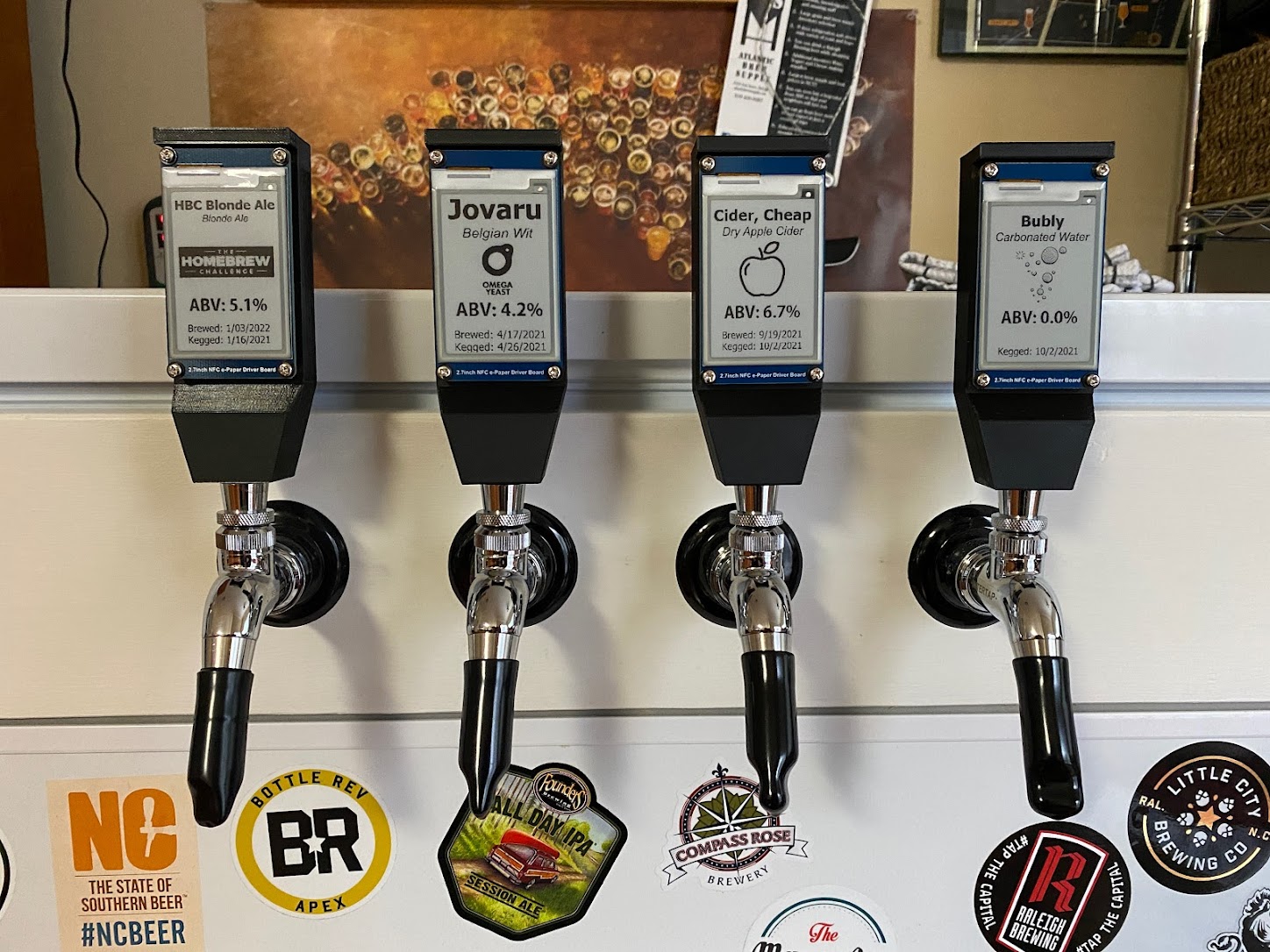

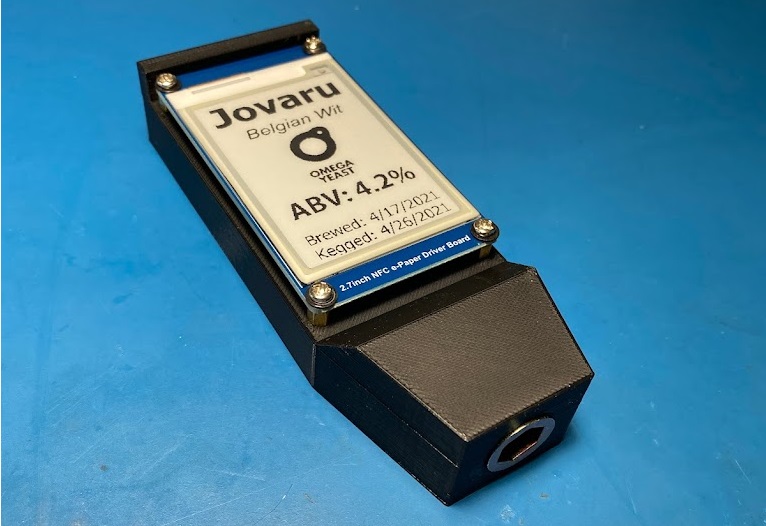

The e-Paper module used in this build requires no power, and is updated via NFC using a phone app (I used ‘NFC E-Tag’ on iOS) or stand-alone NFC writer. The resolution is low (176x276px), but the high contrast makes these displays very readable. The print as pictured was done in PETG with 15% infill. The holes for the m3 standoffs are intended to allow for a friction fit, but your millage may vary depending on print settings/conditions. Either way, nothing a little glue can't fix ;) The threaded insert is secured with a 2-part epoxy. Note that this design is likely not robust enough for a commercial setting, and is intended for a home kegerator/keezer setup. Bill of Materials (in addition to the print) 1 - eInk Module: https://www.waveshare.com/wiki/2.7inch_NFC-Powered_e-Paper_Module (Amazon link for display module) 1 - 3/8''-16 threaded insert: https://www.ezlok.com/ezhex-insert-903816-25 4 - M3*6+6 threaded standoffs 4 - M3*6 screws 4 - M3 washers (6mm OD) 2-part epoxy for threaded insert
