Eibos Cyclops Hinge

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~46 g

Print time

~2.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

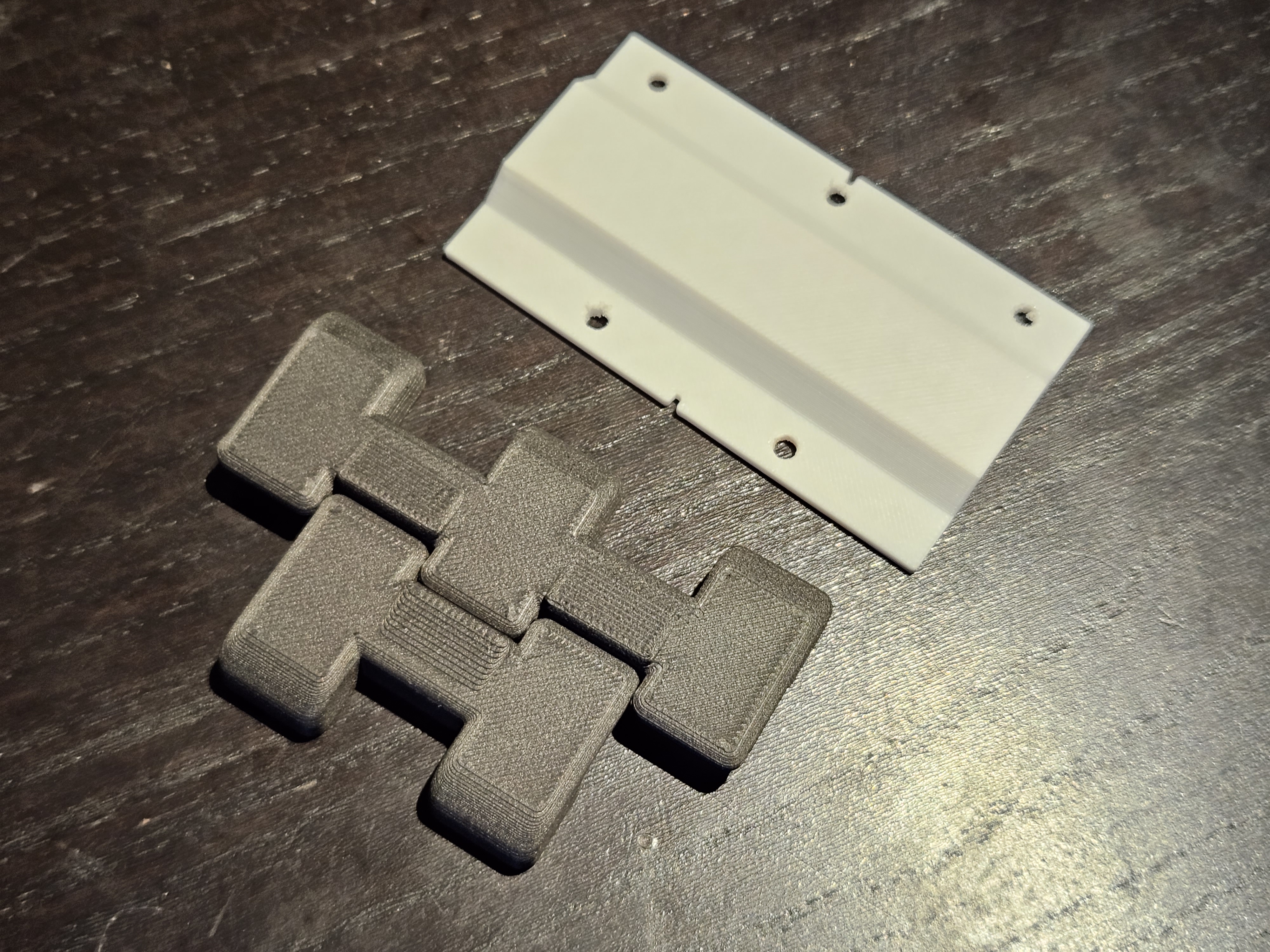

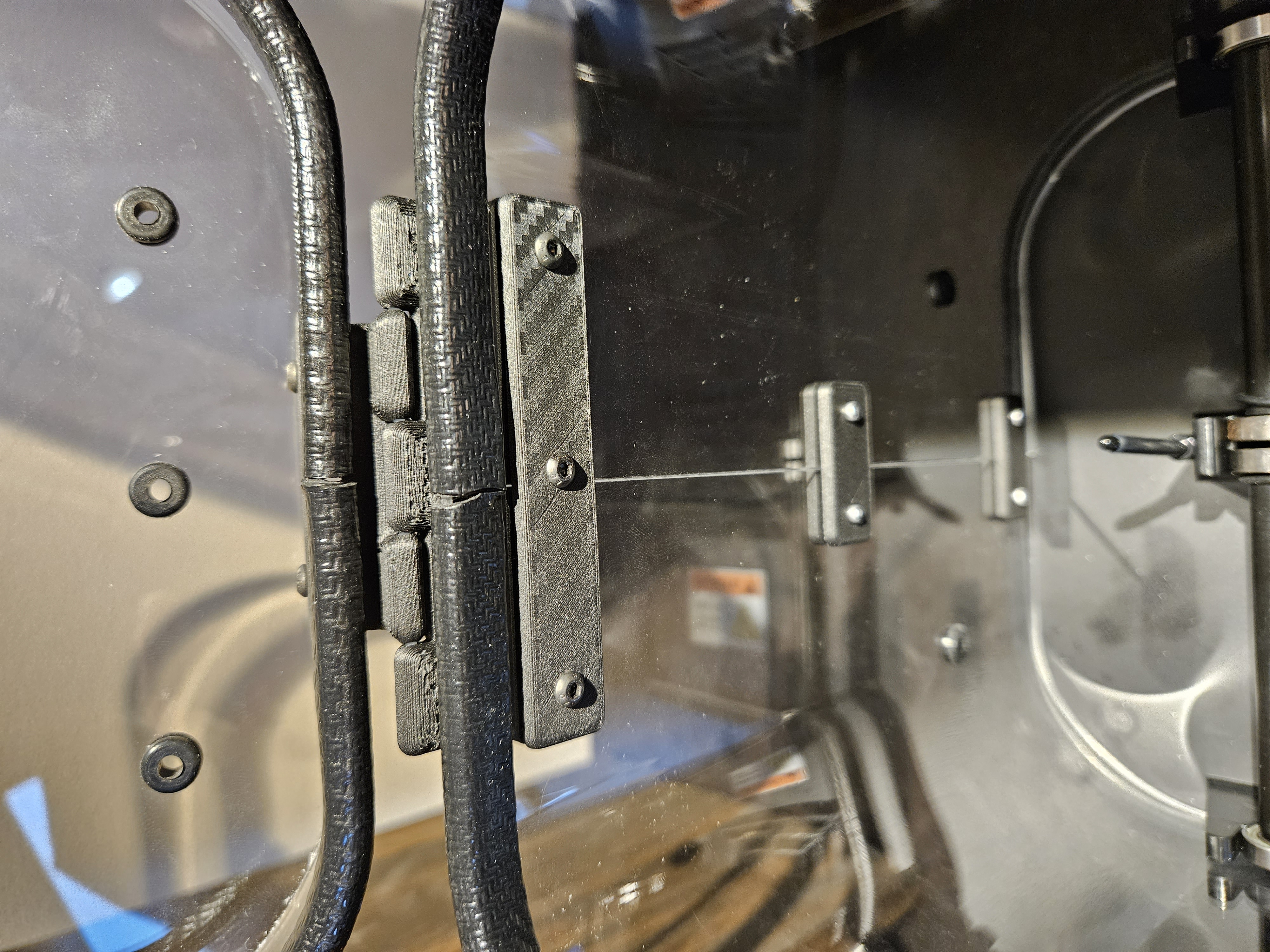

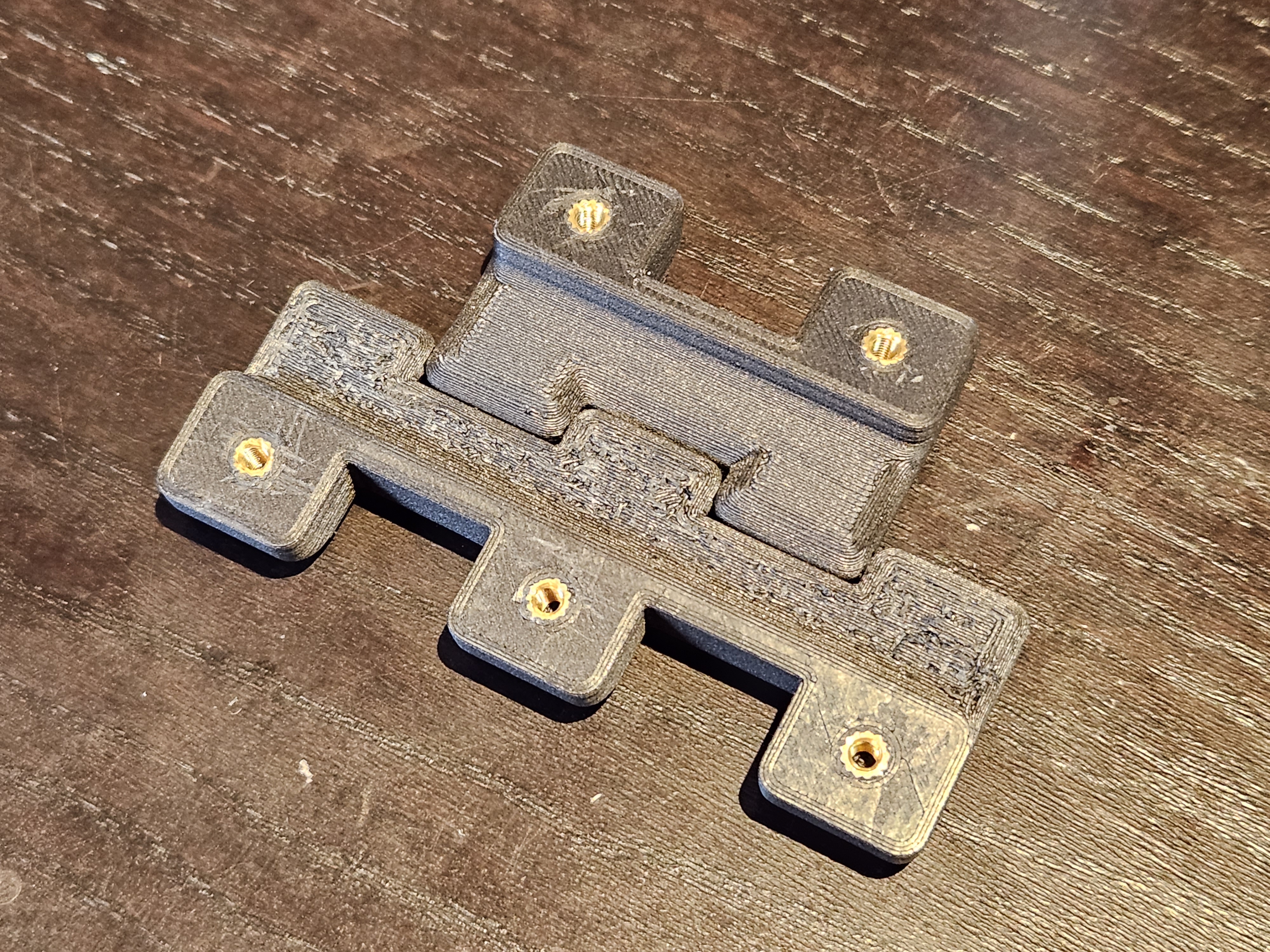

The far too fragile back soldering of the plastic cover of my Eibos Cyclopes broke. As I find this filament dryer very unpractical, I've decided that it was the opportunity to improve it at the same time. I cut the top of the cover with my Dremel, added car door protection to protect edges and designed a hinge in order to be able to load the spools from the top, and especially to facilitate the filament loading on top holes. I've designed a drill guide to make it easier to drill the plastic parts accurately. I've also made a simple reinforcement part to strengthen the broken case, used pop rivets to link them. I strongly advise to print all parts in PA-CF to ensure strength and heat resistance. You'll need 5x M3x10 screws and 5x M3 insert too. To link the hinge parts together I've used a nylon 1.75mm filament.
