Gear lever knob for tractor - e.g. for FENDT

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

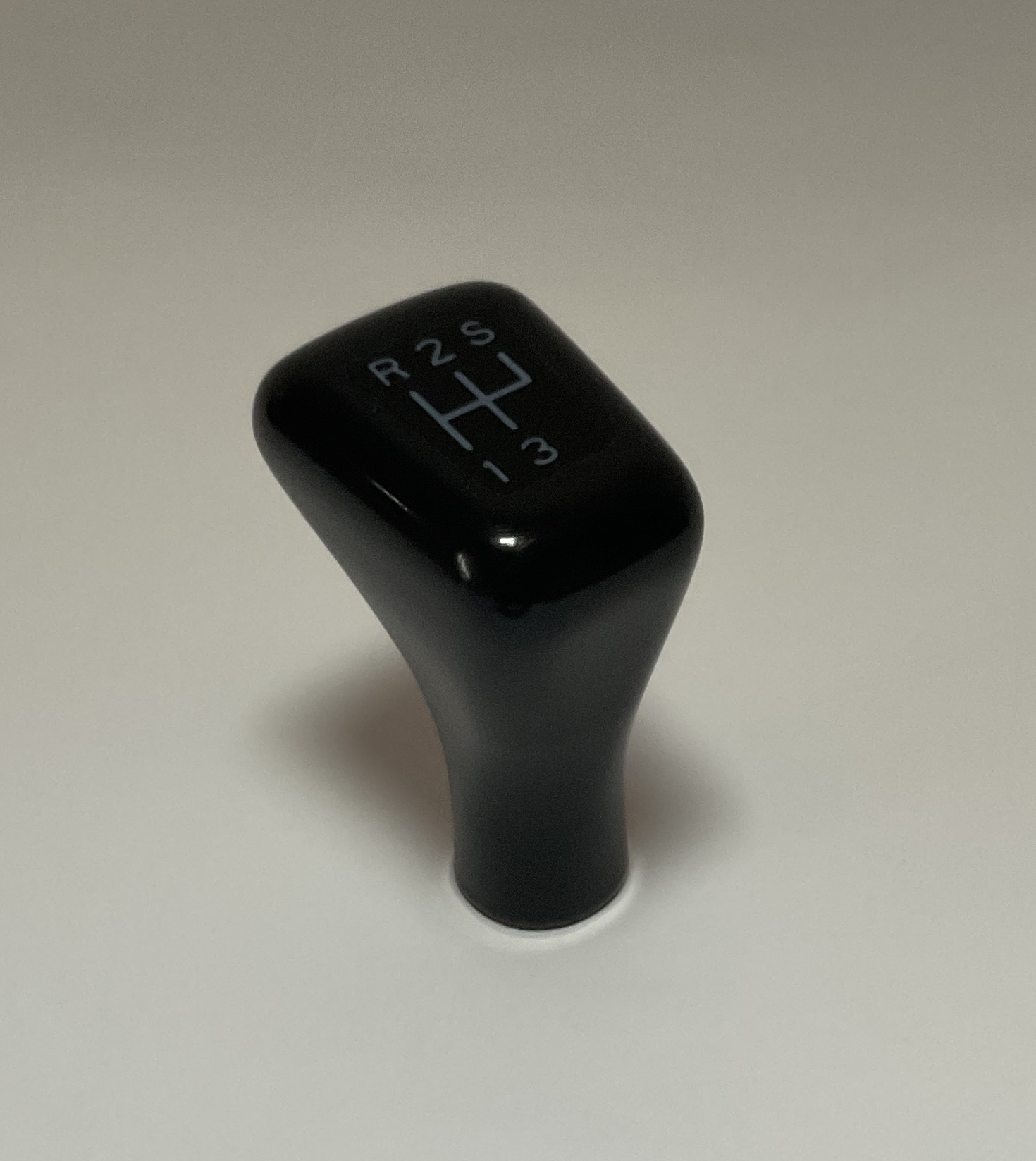

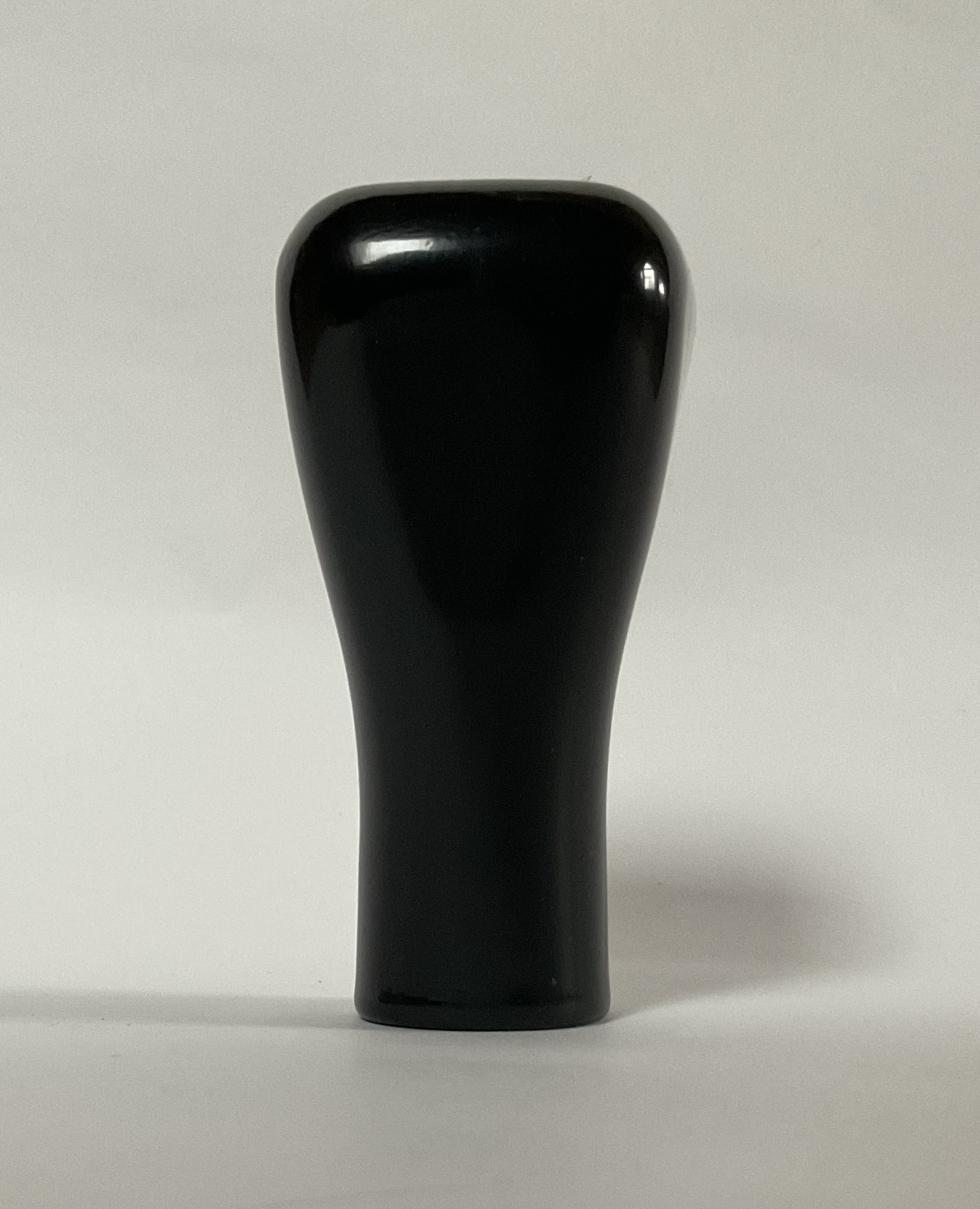

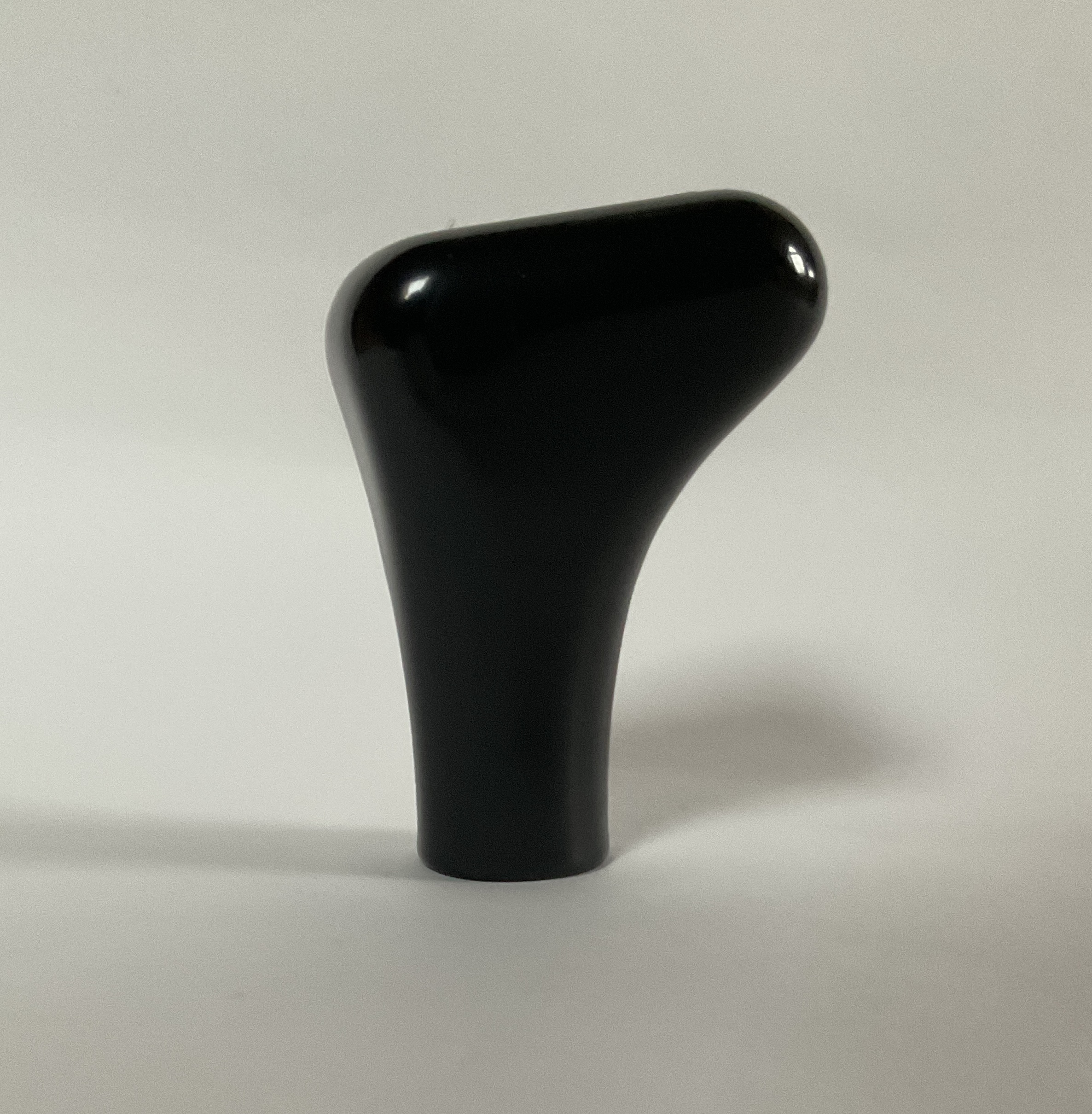

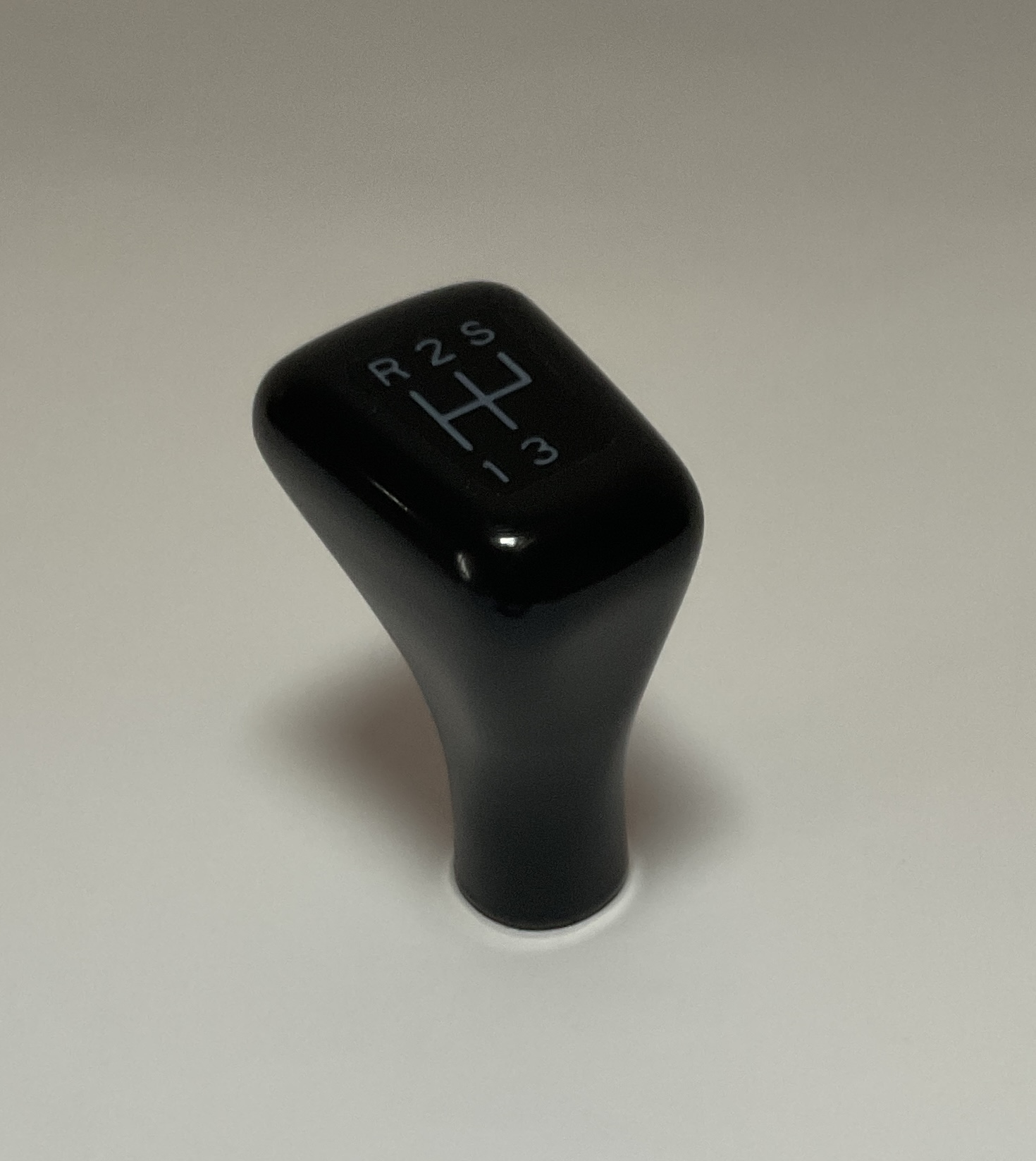

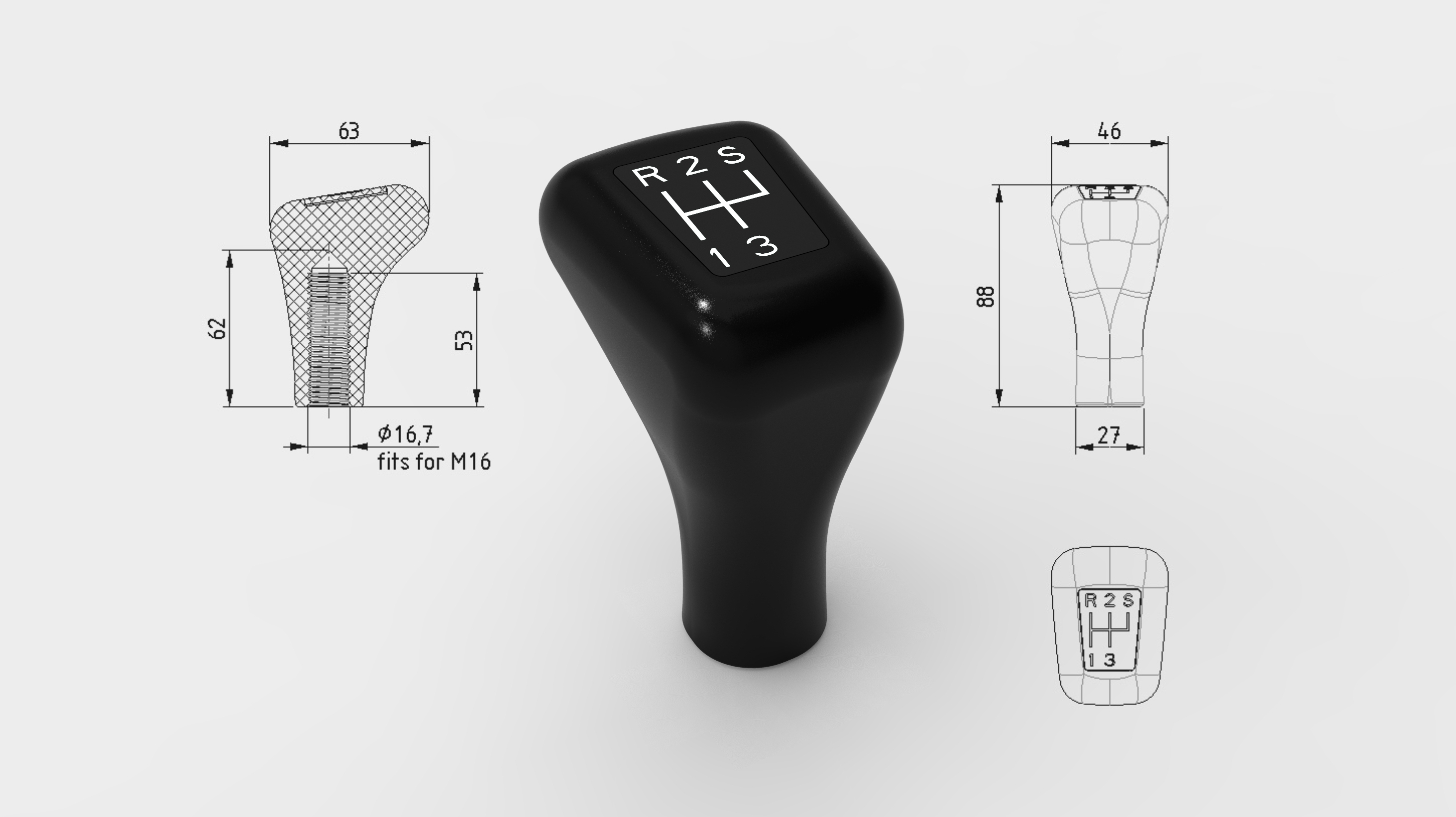

The gear lever knob is designed for multipurpose use and not only for a special tractor. Thats the reason why the gearshift pattern is a seperate printed part. I didnt want to make several tests for a clamped part, so I connected the parts by bonding. The interface of the printed knob to the shift lever is a metric thread M16. To adapt to your tractor you have to manufacture an adapter. Use a thread bar with a length of about 50mm and add the required inner thread. Afterwards connect the adapter and the gear lever knob by bonding. Disclaimer: The replacement part is not approved by any tractor parts manufacturer, use at your own risk. Further details: Gear lever knob (material: ASA)Printed in vertical position as shown on the photo. I recommend to add a brim. If you want to smooth the part with aceton, you should grind the part with fine water sand paper to remove visible lines of the printed part. If you do not grind the gear lever knob, you should adapt the height of the gearshift pattern. Without grinding the parts wouldnt be on one level - adjust the thickness in the slicer if needed. Gearshift patternPrinted in two steps. At first the text is printed with white filament and afterwards the rest is printed in black. Place the .stl file on the bed between the reference points to avoid a collision by printing the second step (text and plate are in one file). To get a smooth surface without cracks, I recommend to increase the bed temperature by 5-10°C after first two layers are printed. If you need a gearshift pattern with 6 speed, follow the link: Gearshift pattern - 6 speed von H3dSprint | Kostenloses STL-Modell herunterladen | PrusaPrinters
