Gripper lamp 95mm

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~108 g

Print time

~5.9 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

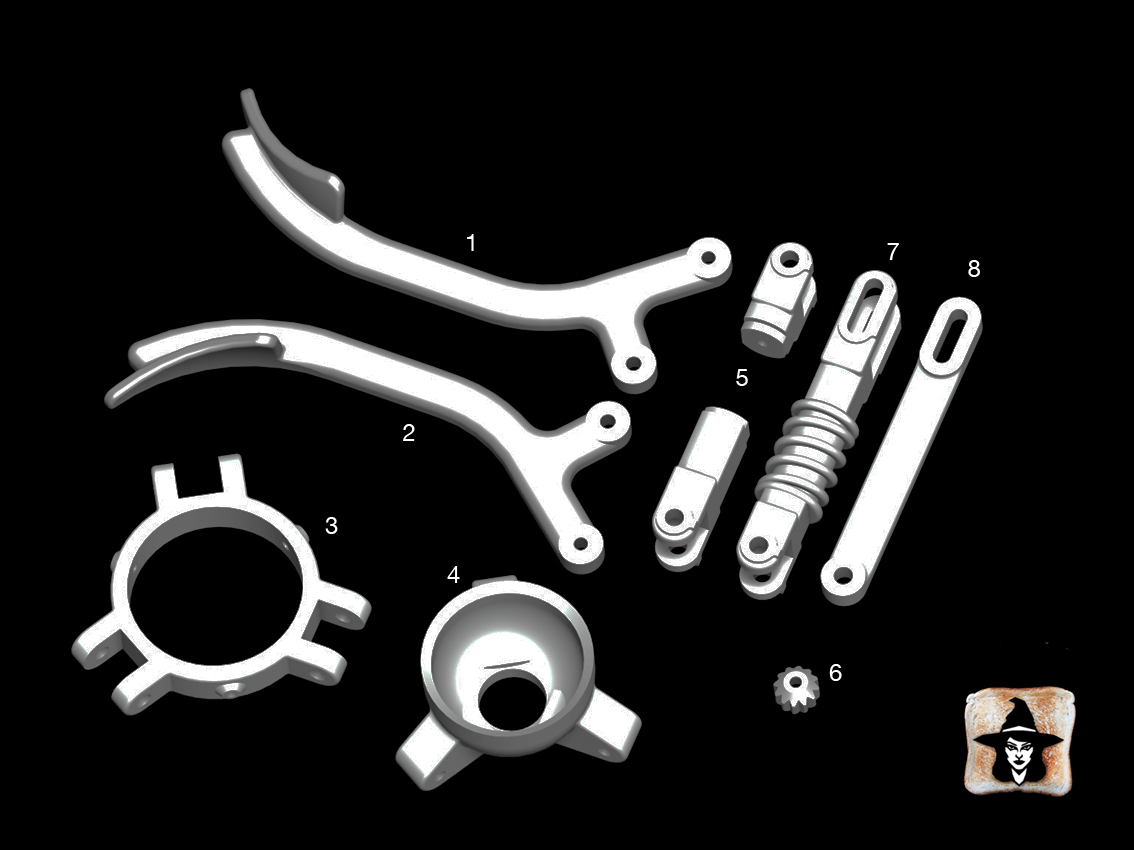

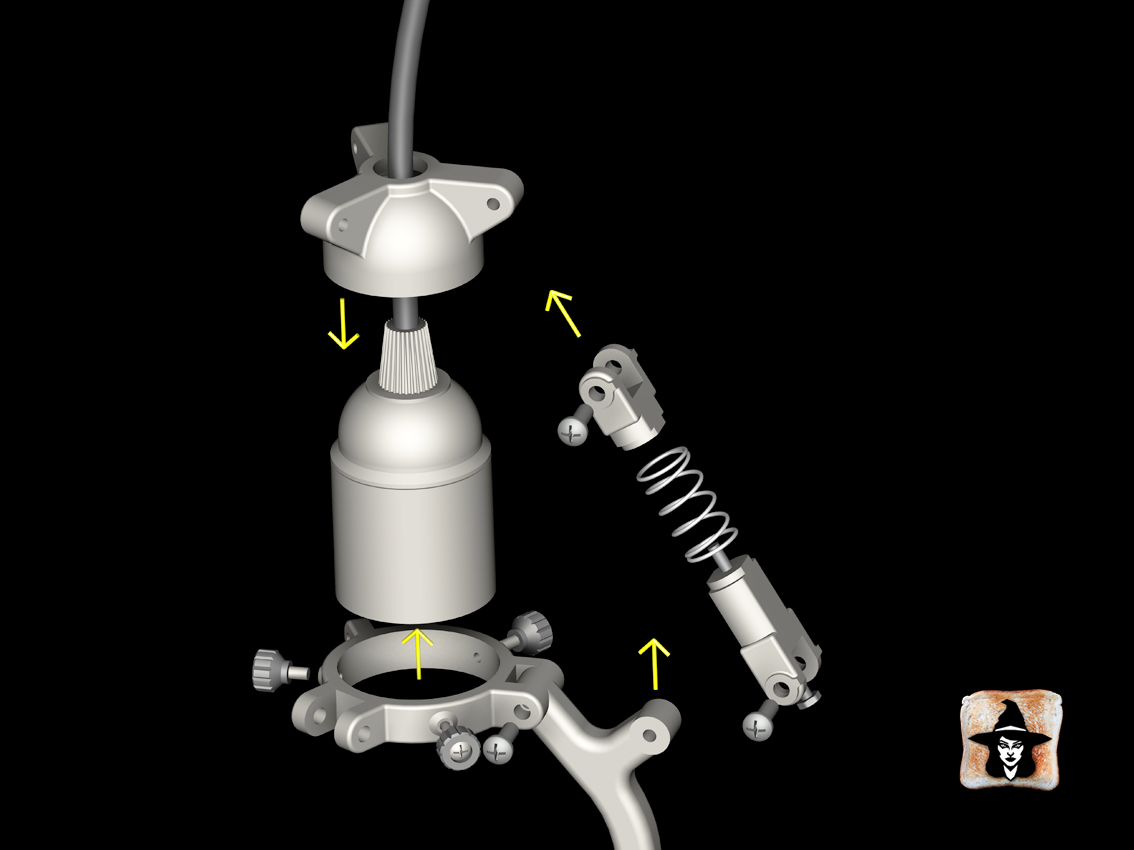

Gripper lamp based on a toy gripper like you see at fair grounds. (The final model is slightly different from the photo.) You also need: Bulb E27 95mm LED. E27 fitting. (38mmø) Screws M4x10. M3x10 for thumb screws (knobs). Thread rod M3 length 45mm. M3 nuts. Tap M3 and M4. Glue (Hard plastic type) Spring for linkage: Outside diameter 14mm Length ±30mm. Pitch 4mm. Wire thickness 1mm, I painted it with Hammerite Ultima Silver. Printing parts: 1. Gripper arm left: 3 pcs. 2. Gripper arm right: 3 pcs. (Glue gripper arm parts together) 3. Lower ring: 1 pcs, 4. Dome: 1 pcs. 5. Linkage for spring: 3 sets. 6. Knob for thumb screws: 3 pcs. Alternatives for link with spring: 7. Linkage with fake spring: 3 pcs. 8. Linkage strip: 6 pcs.
