Hinge tolerance test (build-in-place)
SKU 3DPW-pr-894447
$28.50NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~42 g
- Print time
- ~2.3 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

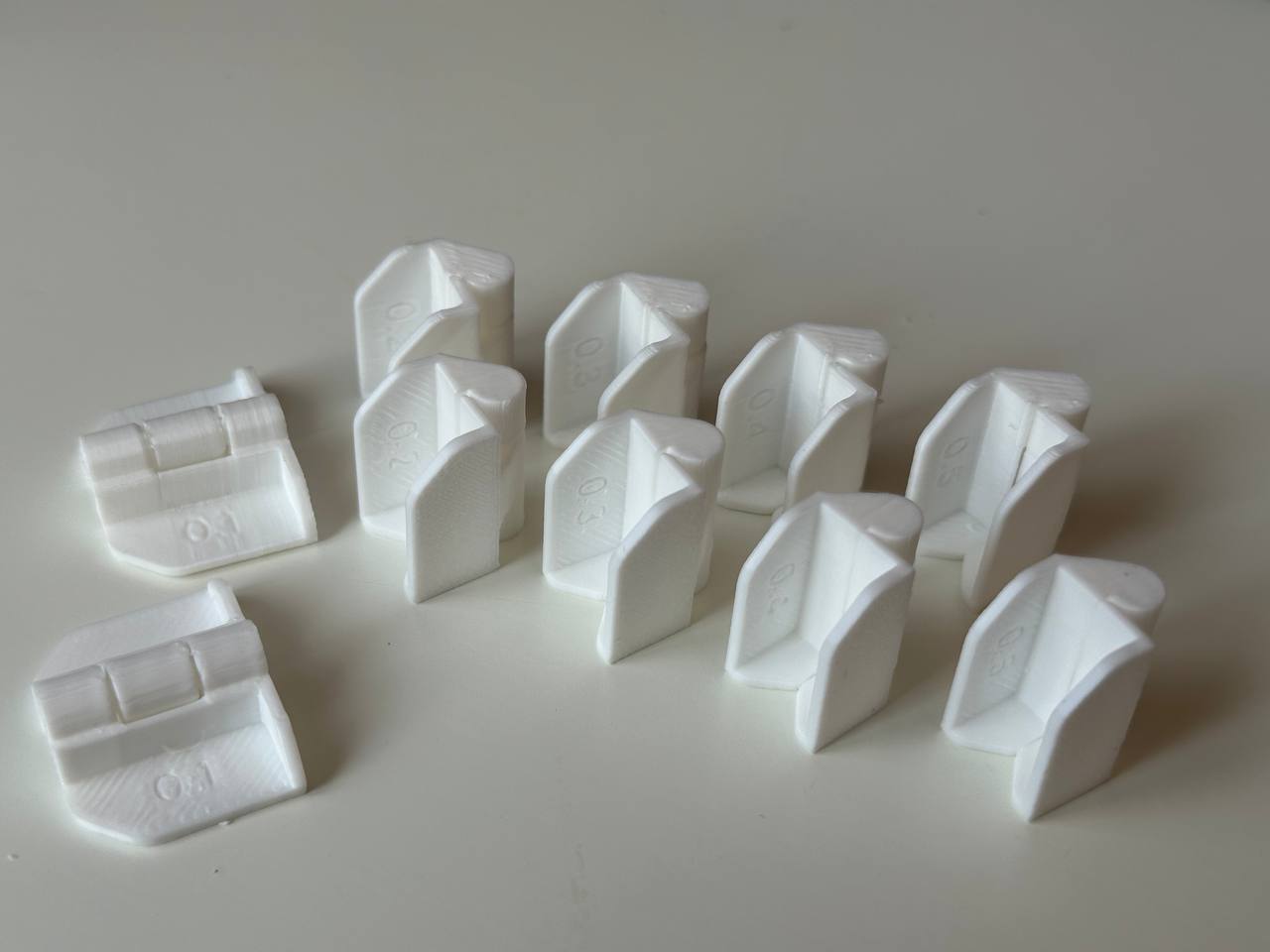

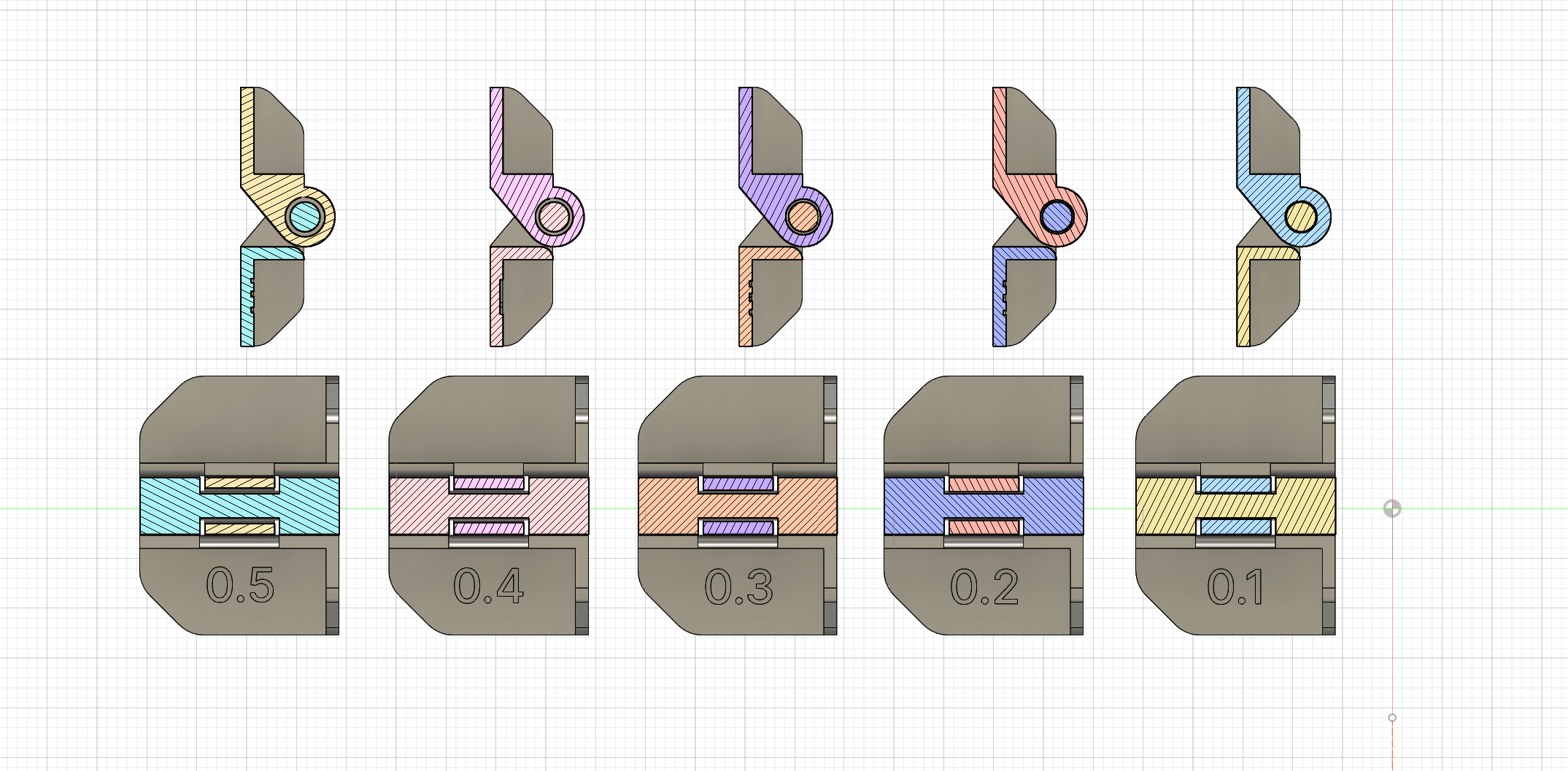

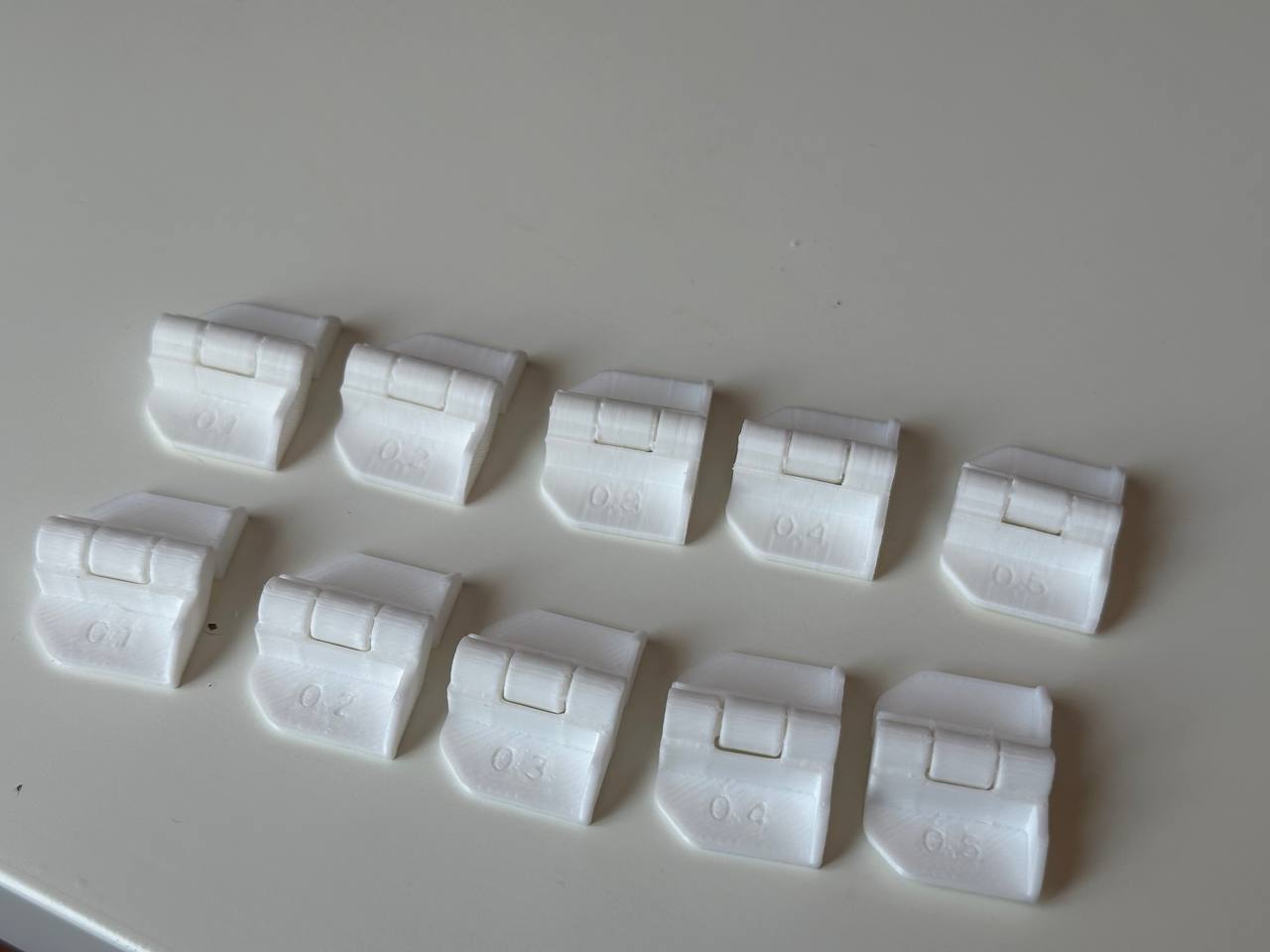

Hi, I couldn’t find a decent hinge tolerance test for print-in-place hinges, so I made one myself. This test is great if you want to model your own hinges but don't know what size of the gap you need. Feel free to use and modify it yourself. The gap varies between 0.1mm to 0.5mm in both horizontal and vertical positions. I was using my Ender V3 KE and got great results for 0.2mm and 0.3mm gaps in both directions. 0.1mm didn’t work, and 0.4mm and above were too loose. I used 15% grid infill, a 0.4mm nozzle, and a 0.12mm layer height (using supports). For horizontal (laying on its back) hinges, I designed it in such a way that you don’t need supports—only for vertical hinges to separate the middle part of the hinge.
Tags: box, print, test, hinge, printinplace, tolerance, resin print, nz made, made to order
Design credit: Original design by Atoi - licensed under CC-BY-SA.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Hinge tolerance test (build-in-place) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
