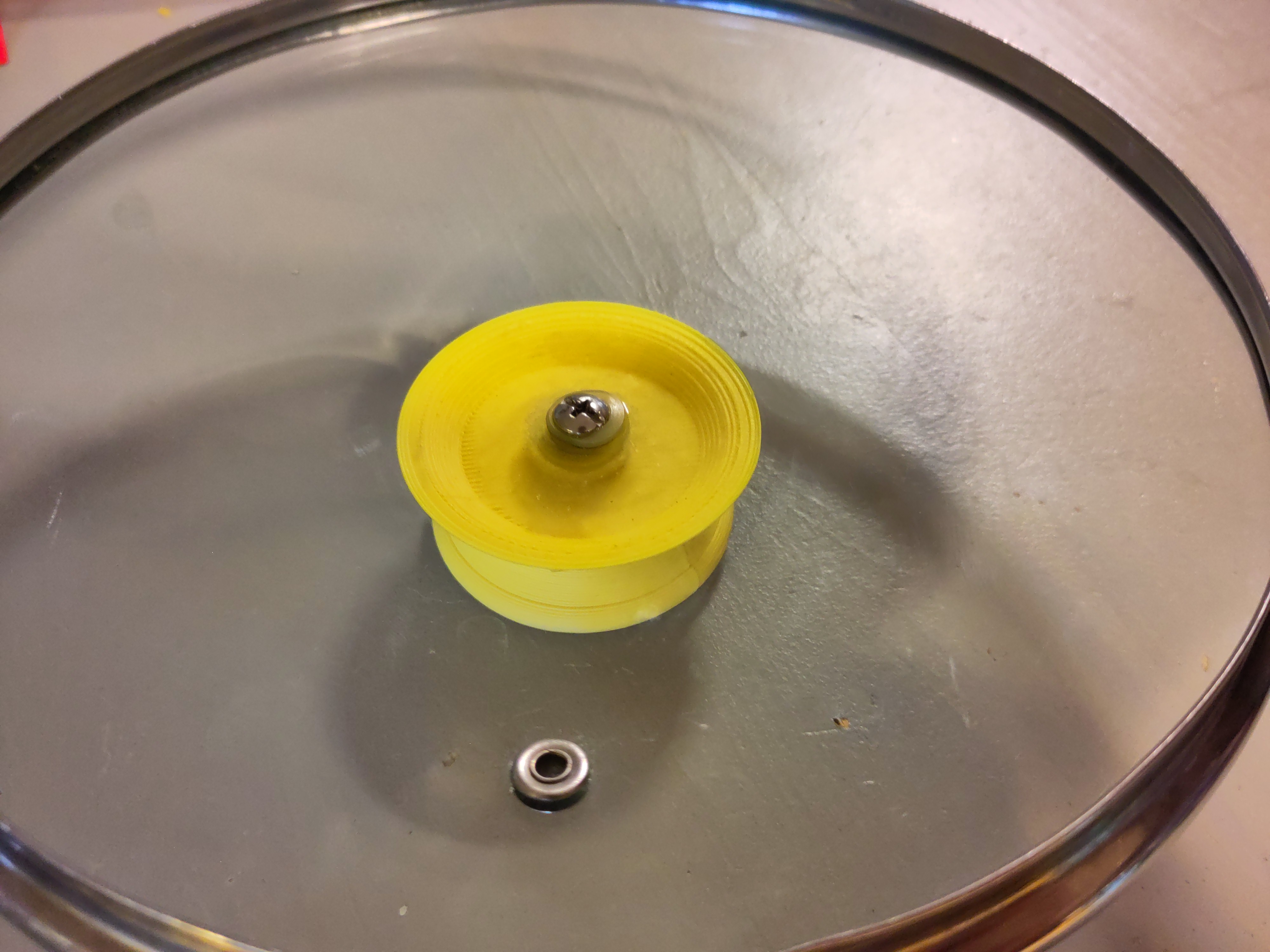

A replacement knob for the lid of the ANNONS 2.8L pan from IKEA. The knob is designed in two parts as to recreate the original. After dropping the lid(s) for this pan a couple of times the plastic knob sustained some damage and eventually broke off entirely. With the help of two broken knobs I was able to approximately recreate the knob. To replace the original knob, first screw off the original if it's still attached (make sure you don't lose the silicone rings). Then simply combine the two parts by pushing the knob into the skirt and screw in the original M5 screw with the silicone rings and washer in place. Both parts are printable in the original orientation. I used PLA to print the parts and found it to be able to stand the heat while cooking. However, a more heat-resistant material would be the better option.
