Ikea MAXIMERA / EXCEPTIONELL holes jig
SKU 3DPW-pr-56856
$19.50NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~17 g
- Print time
- ~0.9 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

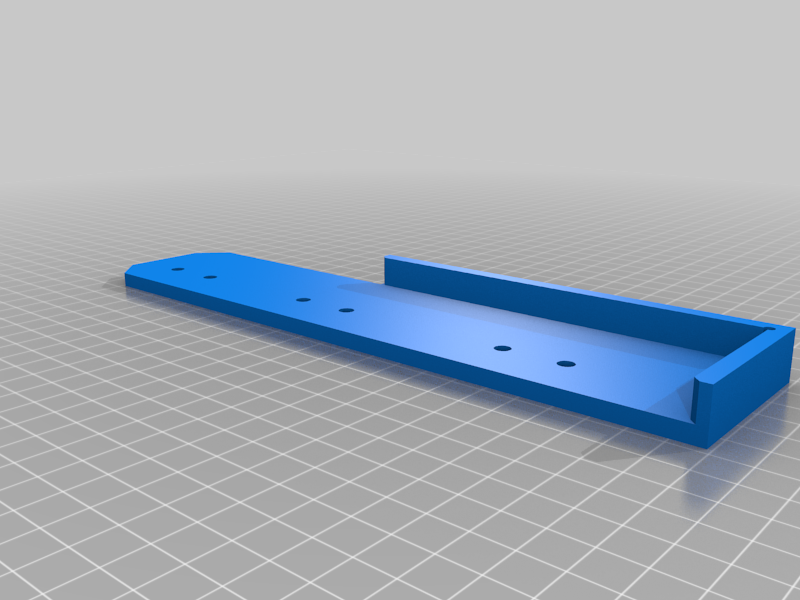

Jig I found were not correctly sized, so I decided to draw a correct one. Printable on any 22 or 23cm bed size. Left and Right Jig for installing custom front on Ikea Maximera/Exceptionell drawers Your front should be cut with -0.7mm than the cabinet size ( eg , 4040 front should be cut at 39.339.3 ) Hole are at 33mm from the side The pattern is from bottom to top : 40mm - 20mm - 60mm - 20mm - 50mm - 20mm Designed with OnShape, you can fork my design here : https://cad.onshape.com/documents/ba5725f6b7cc334f2180c001/w/4571c7c8b9355e24b17f2c59/e/811ab96641f8d3ca3b8f620f Print instructionsCategory: DIY Summary Jig I found were not correctly sized, so I decided to draw a correct one. Printable on any 22 or 23cm bed size. Left and Right Jig for installing custom front on Ikea Maximera/Exceptionell drawers Your front should be cut with -0.7mm than the cabinet size ( eg , 4040 front should be cut at 39.339.3 ) Hole are at 33mm from the side The pattern is from bottom to top : 40mm - 20mm - 60mm - 20mm - 50mm - 20mm Designed with OnShape, you can fork my design here : https://cad.onshape.com/documents/ba5725f6b7cc334f2180c001/w/4571c7c8b9355e24b17f2c59/e/811ab96641f8d3ca3b8f620f
Tags: ikeahack, jig, thingiverse, exceptionell, maximera, resin print, nz made, made to order
Design credit: Original design by Gilles - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Ikea MAXIMERA / EXCEPTIONELL holes jig is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
