Infinite hinge magnetic chess board

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~41 g

Print time

~2.3 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

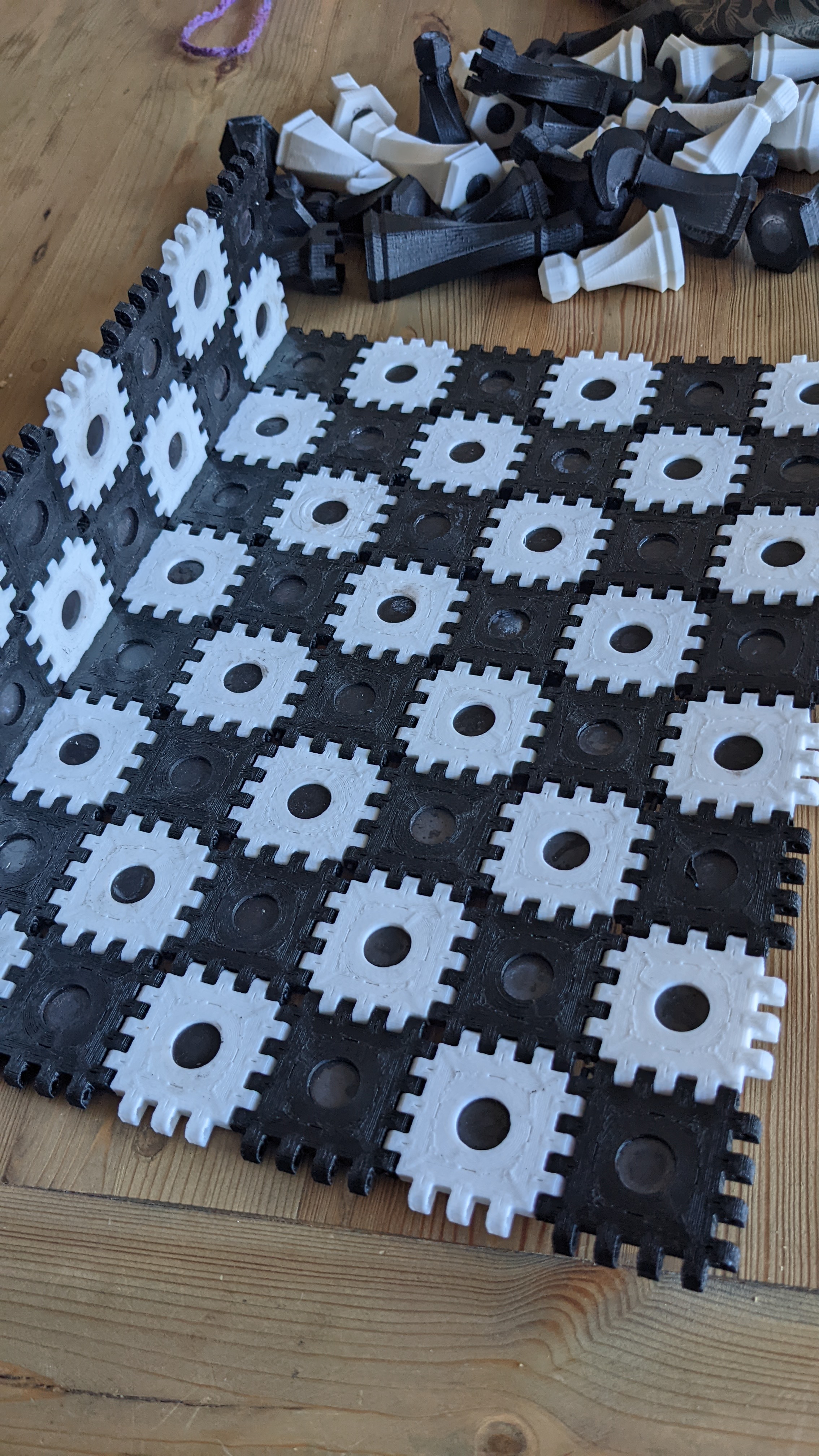

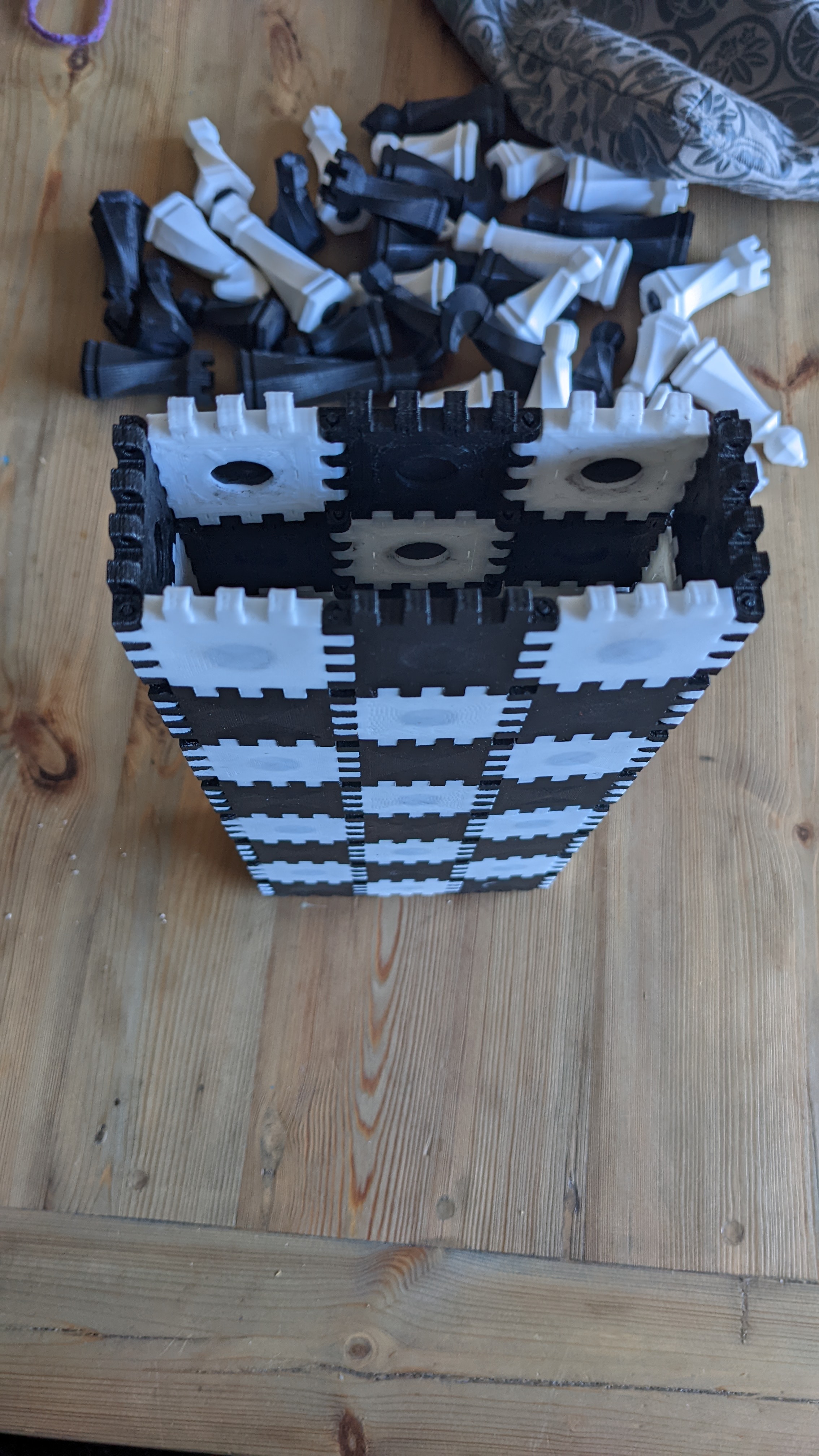

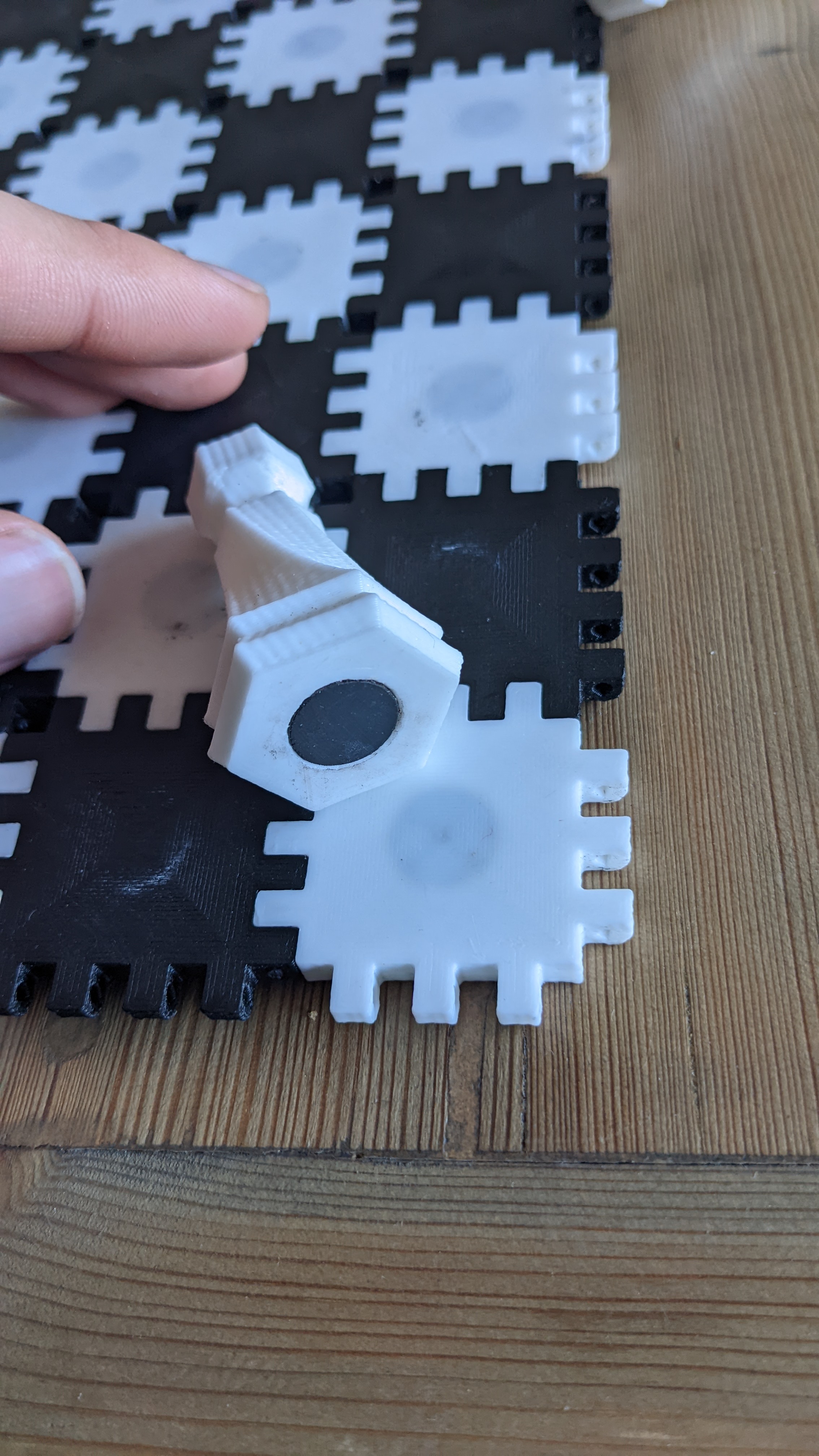

This is a folding chess board. How to fold it is up to you. The idea is to put the chess pieces inside once folded (of course). I haven't designed lids for the open ends yet though. Or a latching mechanism for the free ends. So it won;t function as a box until some thing like that is printed. Please tell me if you make something that will work :) The hinge pins are pieces of 1.75mm filament. Printing hints: Print the pieces face down. (you will see that the holes for the hinges are teardrop shaped to avoid post processing).Use concentric infill to get a nice cross pattern on the squares.Don't use black and white like I did. Follow FIDE reccomendations and use natural colours such as green, brown and ivory.Assembly Hints Glue magnets (12mm OD, up to 4mm thick) into the pieces with superglue if you want a magnetic board. Make sure all the magnets are the same way around. Wear gloves, or leave pieces of your fingertips behind. I suggest using some kin of rod to press the magnet into the slot once you have applied superglue.Assemble piece by piece, inserting a piece of filament and clipping it off (need a seperate hinge pin for each hinge joint.
