Laptop and portable-monitor vertical stand

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~10 g

Print time

~0.6 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

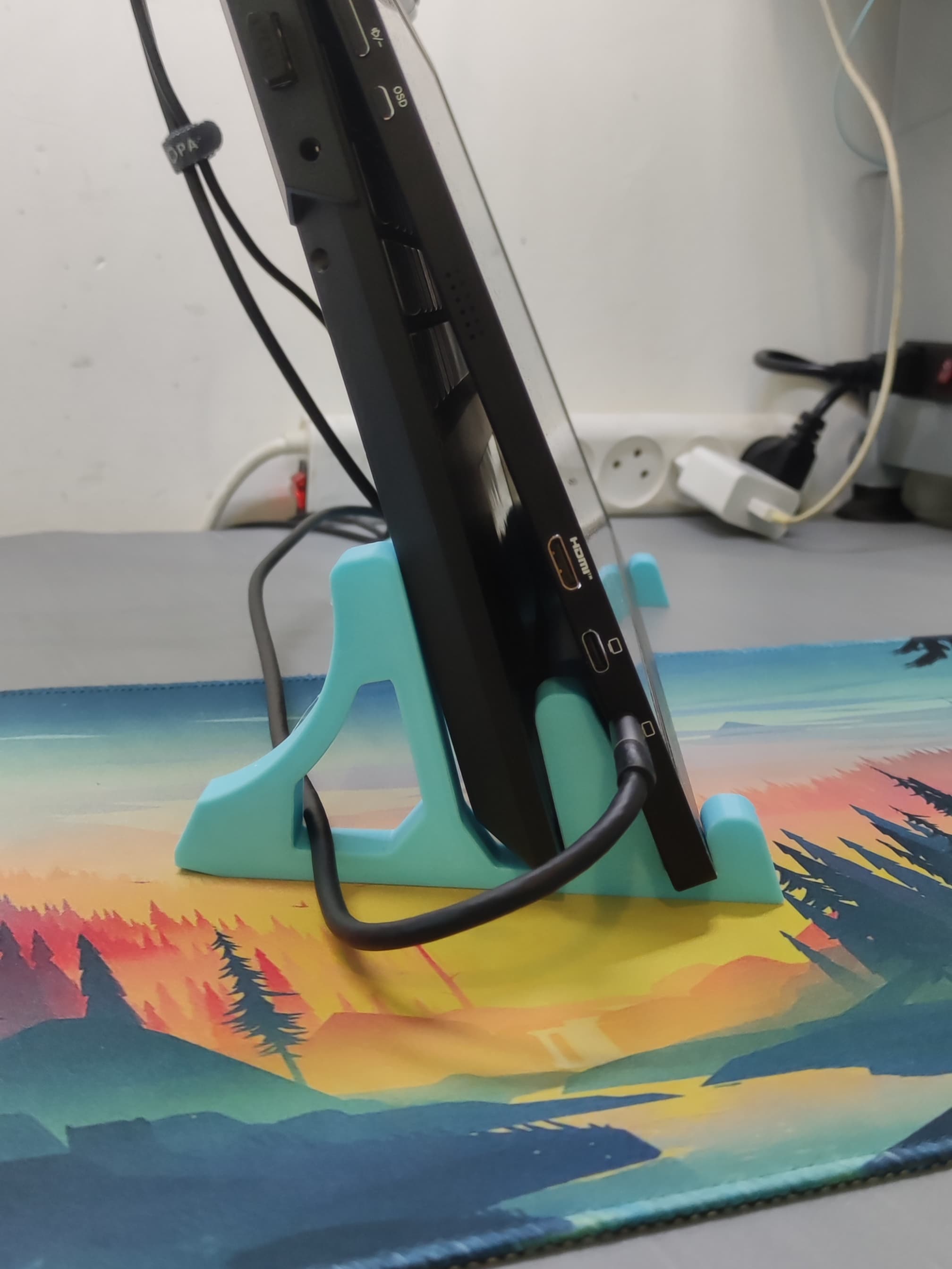

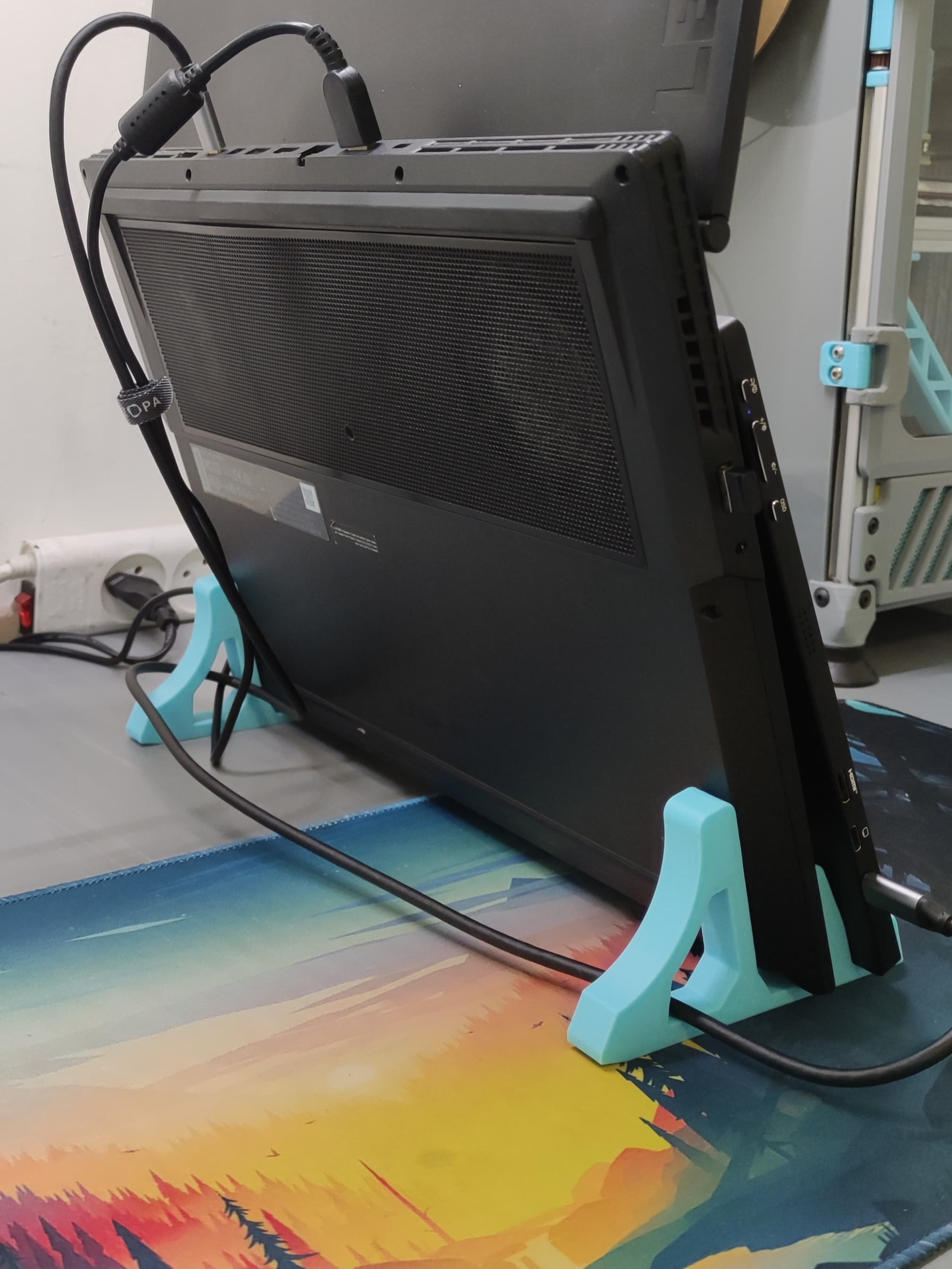

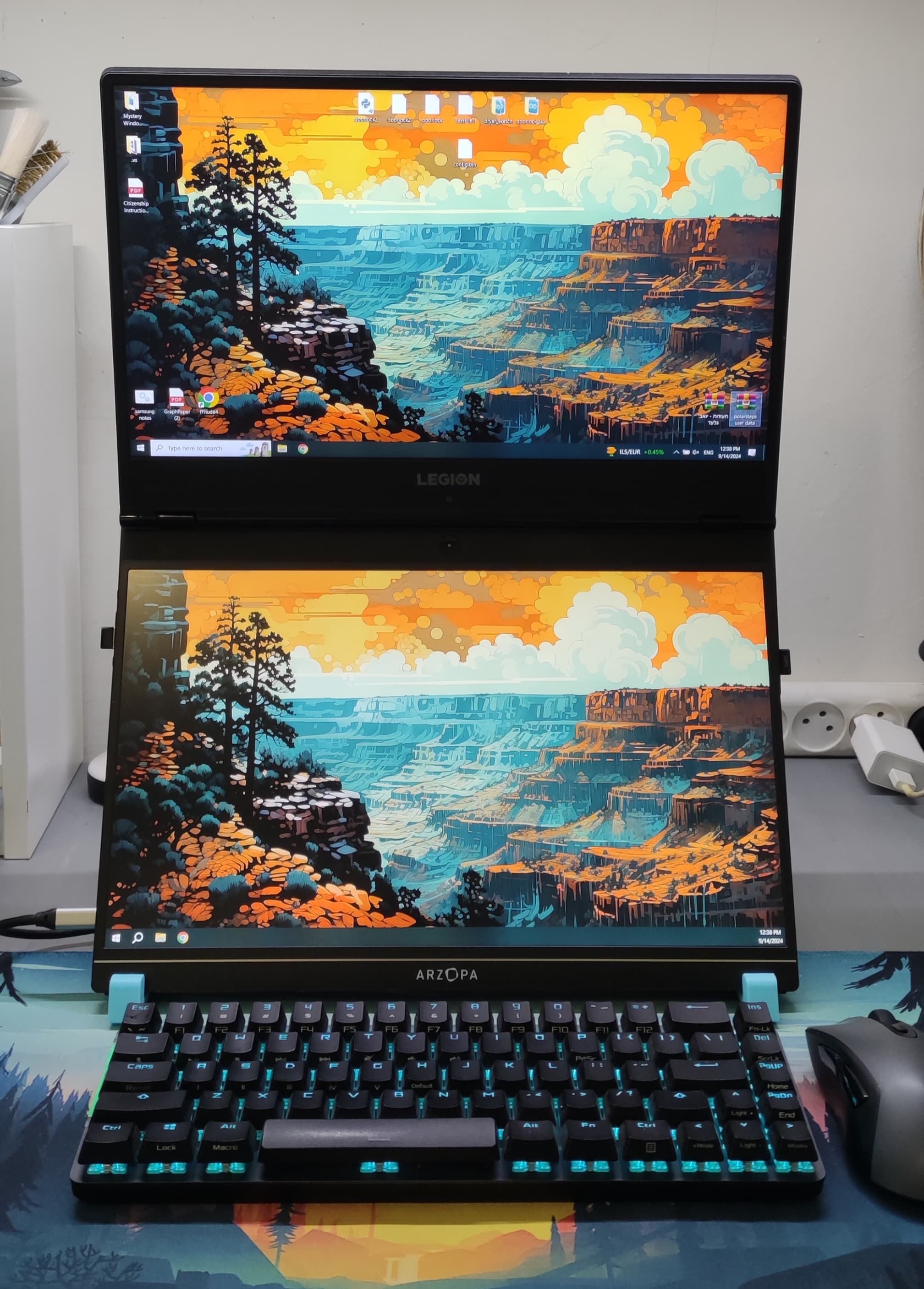

A small bracket that functions as a vertical laptop stand that can hold a portable monitor to function as a 2nd screen. I use a Lenovo Legion Y530 and an Arzopa S1-Table portable monitor. 2 brackets are required, and they can be printed on printers with a build plate as small as 120x120mm, such as the Voron V0. I recommend 20% Infill and 3 wall perimeters. The part should be laid flat on its' side on the build plate for maximum strength - don't print this vertically as the layers will separate under the laptop's and monitor's weight. Feel free to change, remix, copy, steal, and claim as your own work and design. If anyone's interested at copying the OnShape workspace and tweaking it to their liking, I added a link. The model is parametric, so there are two variables at the upper left corner of the link for the laptop's and monitor's thicknesses, and changing them to your needs will change the model. https://cad.onshape.com/documents/182358137137f1a26039749b/w/9a46100c754e366941530187/e/14878dedef277b2c000c5bc0?renderMode=0&uiState=66e59ef9b9fa683c1c82debc Sorry for all the Fusion360 fans - sadly I don't have a .f3d file…
