Mazda ND MX-5 Center Console Shelf

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~86 g

Print time

~0 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

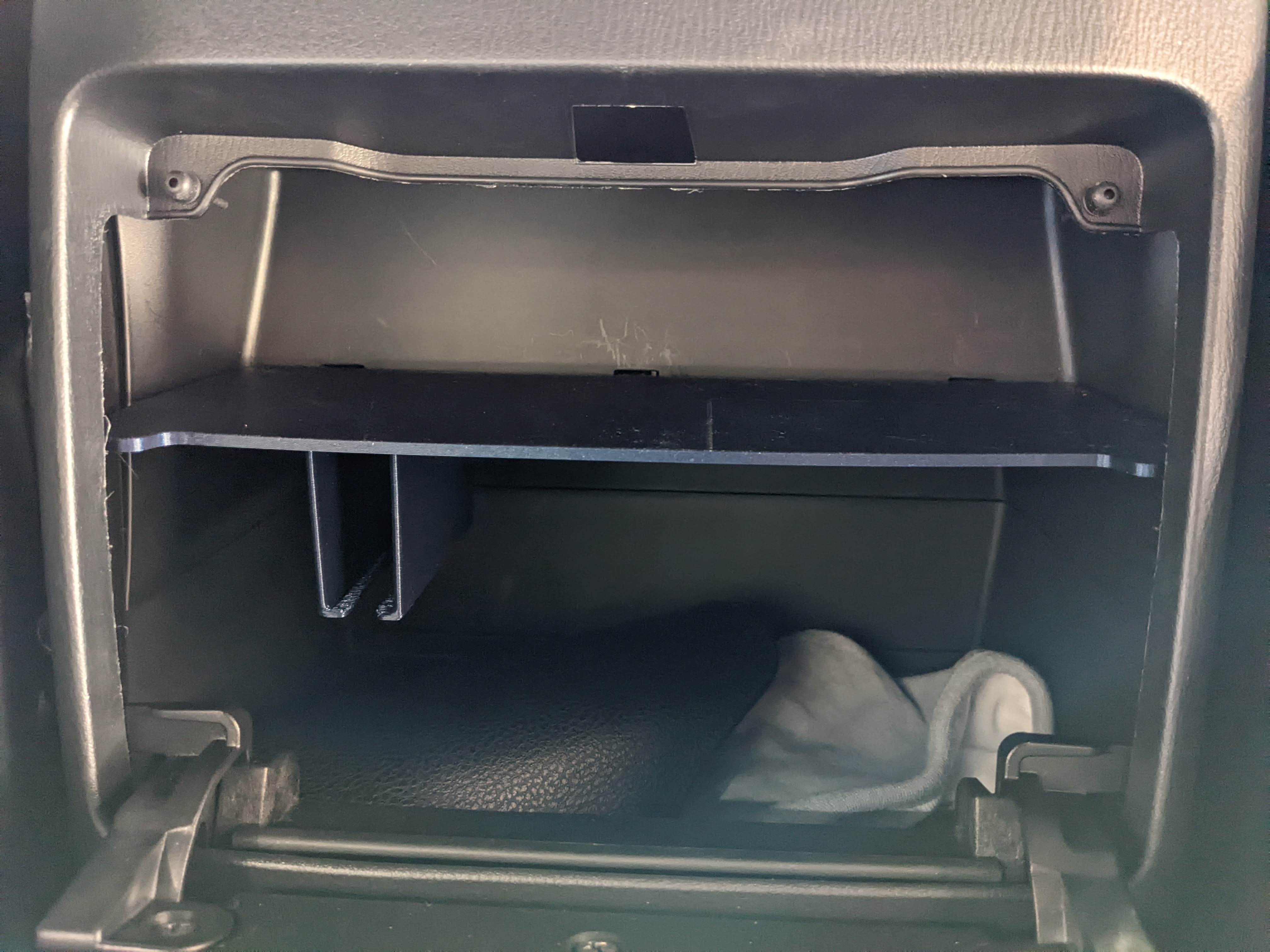

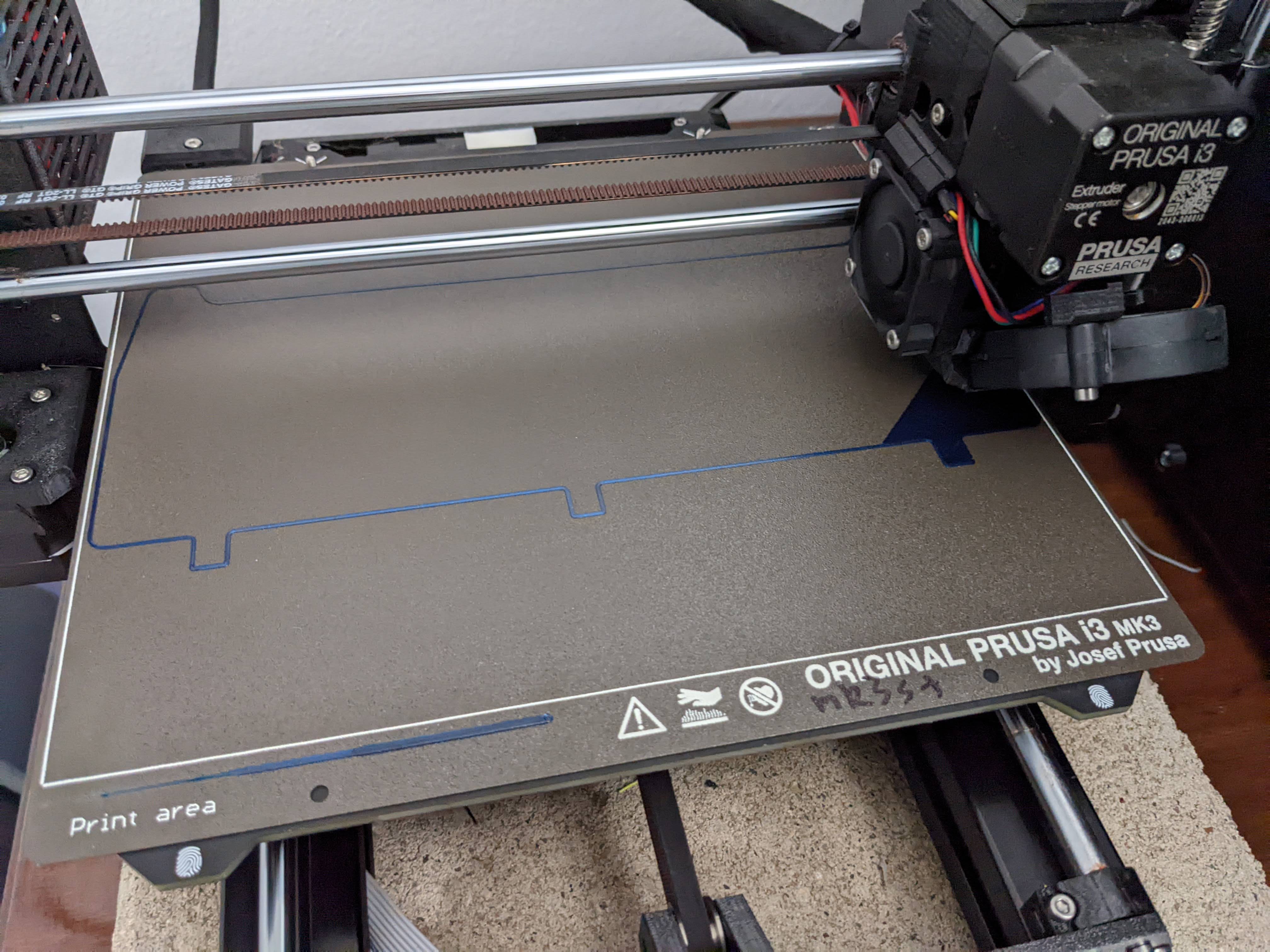

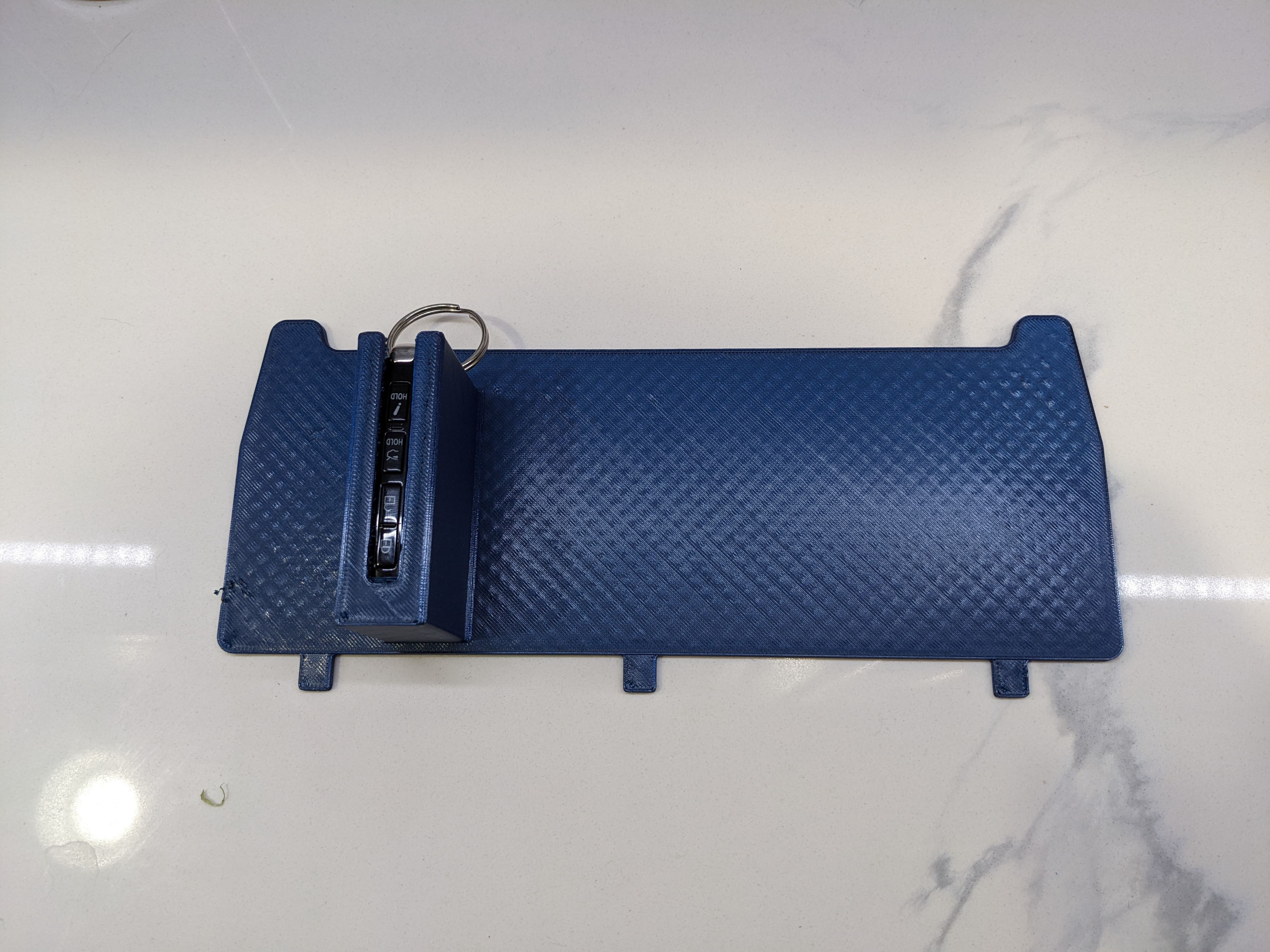

I decided to print my own parcel shelf for the ND MX-5 (and Abarth 124). The shelf is right at the limits of the size for the MK3 but does fit. There are three options currently (I might add more as I get ideas/use out of it): Default: Just a flat parcel shelf insertKey Pocket: Parcel shelf with a place underneath to slide the keyGrip Pad: a pad to print out of TPU or something to give items on the shelf more frictionThe key pocket has a slot in it to make sure that the buttons on the side don't get hit while taking it in and out. This slot has a single layer thick extrusion for printing to help with bridging. Once the print is done you can easily cut the slot out. Installation: The easiest way to install it is to get the whole shelf in the bottom half of the center console. Then with the front tipped down, insert the three tabs (they are not symmetric so there is a correct way up), then lift the shelf up and get it past the little ridges on the front of the center console that it sits on.
