NorcoT Creality K1 Max Glass Lid Raiser (with Sliding Vents)

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

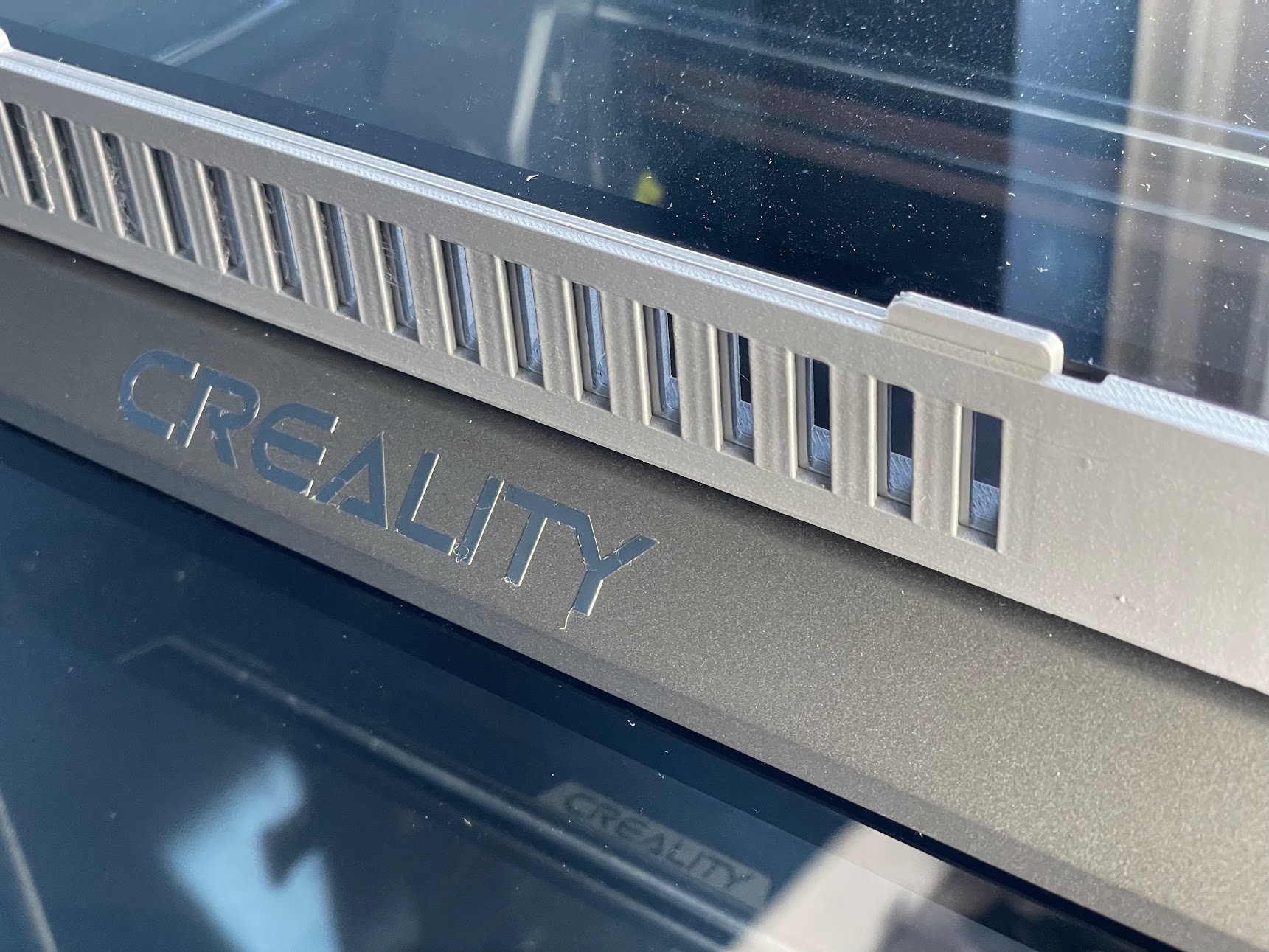

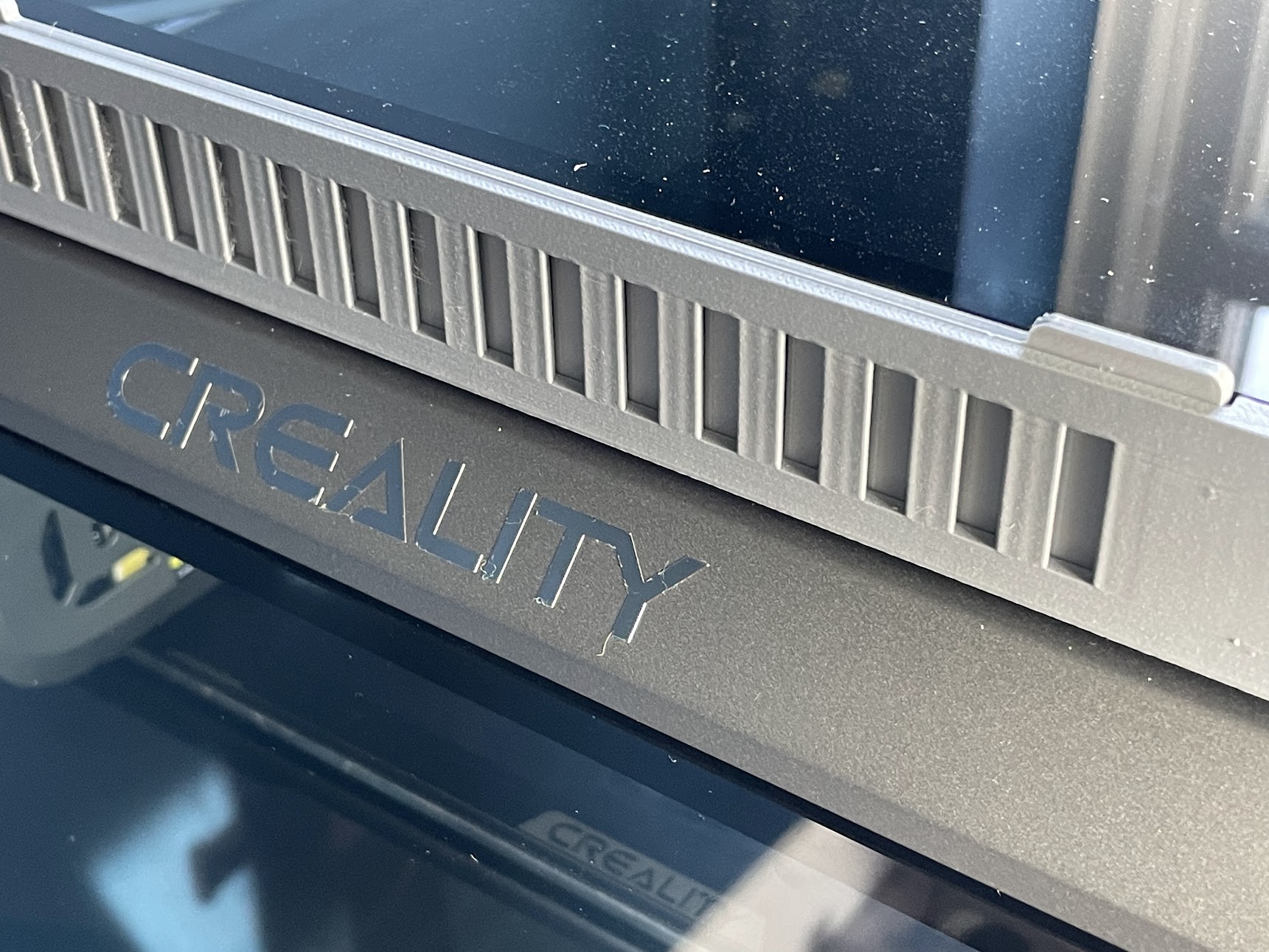

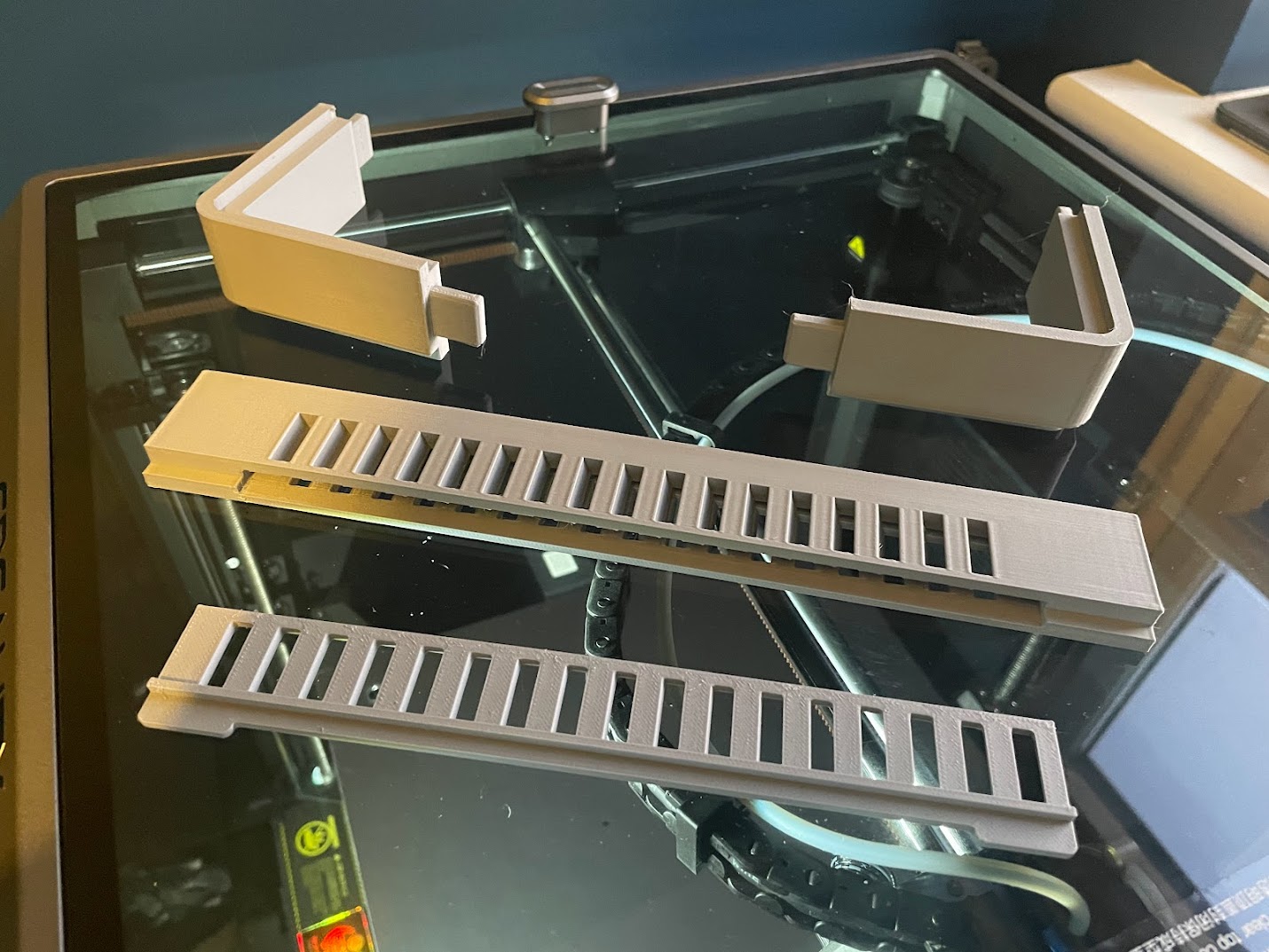

My custom designed lid raiser for the Creality K1 Max. I wanted a simple version which required no additional components but allowed me to open and close the vents on the fly. Lid raisers for the K1 Max help improve the clearance between the drag chain / filament tube and the glass top as Creality have designed it very very tight. The vents allow you to help prevent the temperature becoming too high inside the printer depending on the filaments you are printing. You will need to print: 4x Corners3x VentBar3x VentSlat1x FrontBarI printed mine in the orientation shown with supports, except for the VentSlate which I laid flat on the bed. Enjoy! ---------REVISION LOG---------- V1 - Original V2 - Fixed the FrontBar missing slots for the corner joint. Added chamfers to help glass seat. Added fillet to round the top outer edge. Increased the width for the glass by 1.5mm width and breadth to help glass fit easier.
