Office Chair Castor Bushing

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

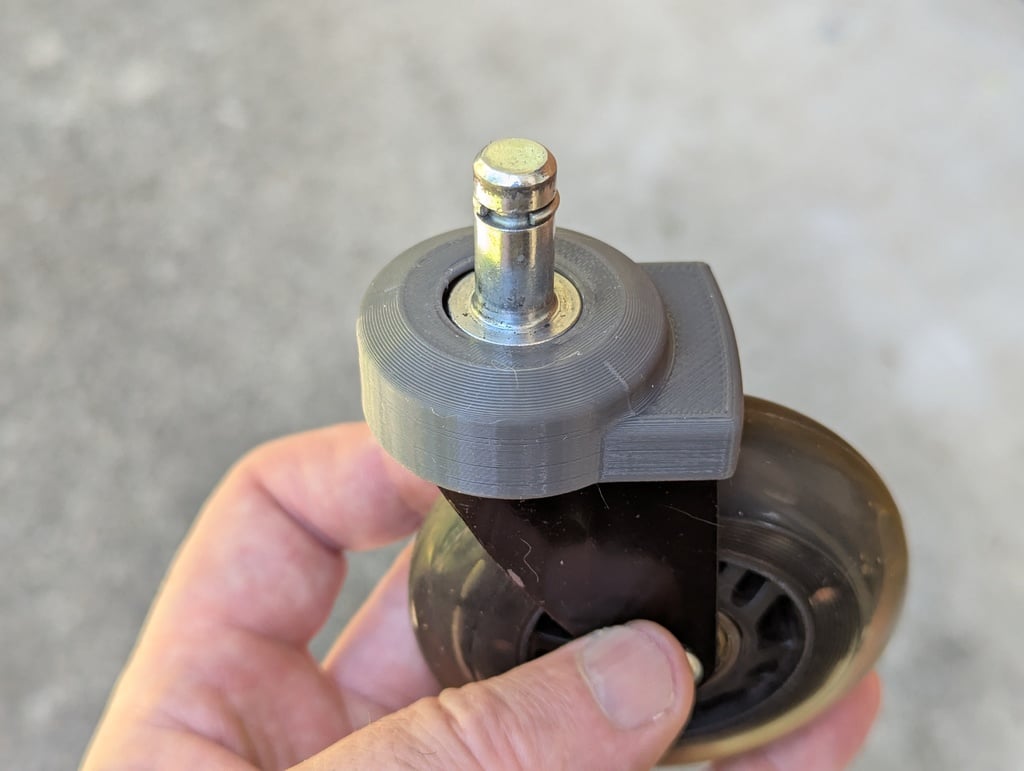

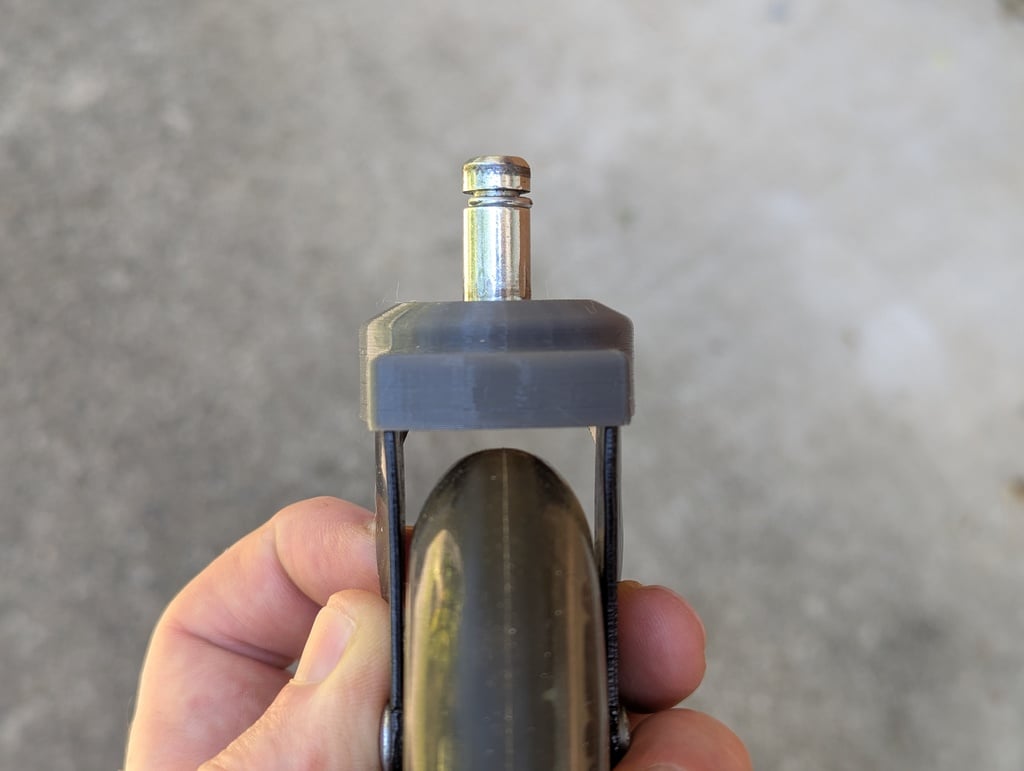

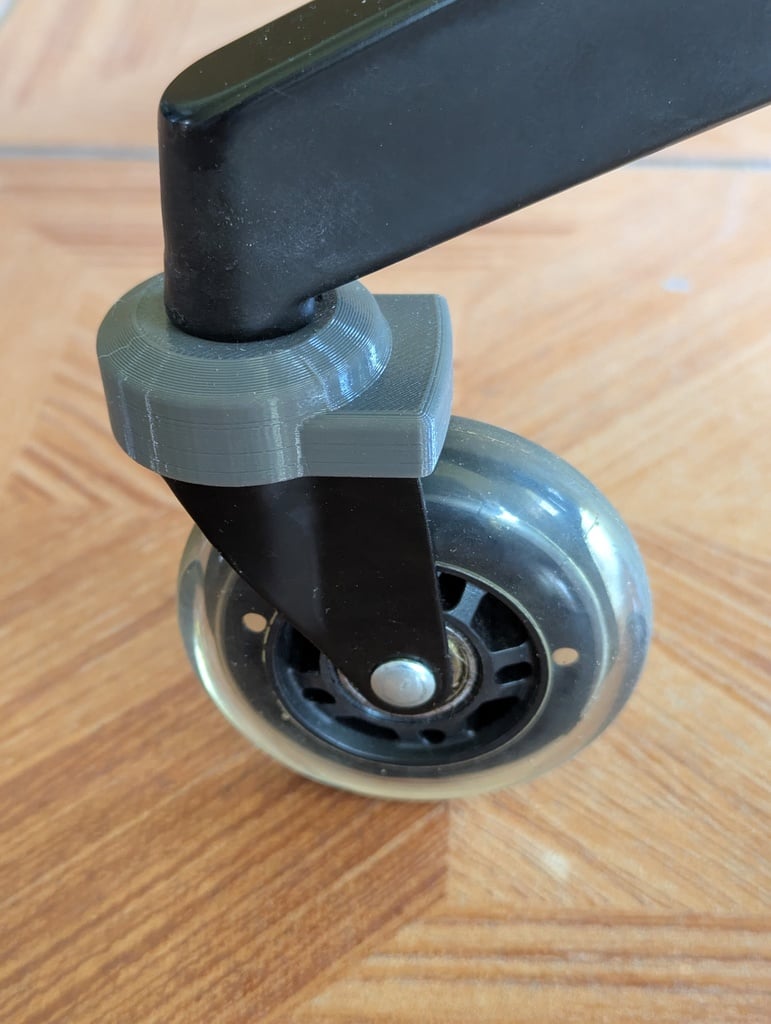

I put NAIERDI Office Chair Castor from aliexpress (https://www.aliexpress.com/item/32944808613.html) to my IKEA Markus chair and was very happy with them. However, after a year some debris (cat fur mostly) build up in top open axial bearing and it started to rust (see on picture). I've cleared the bearings (using WD40 and bike clearing liquid), lubricated it with bike's chain lubricant and put the bushings that I've modelled. I printed the bushings on Elegoo Neptune 4 in Jayo PETG with typical settings: Temperatures: 245/75C Layer height: 0.2mm Line width: ~0.6mm Speed: ~90mm/s Supports required (I used Normal/Snug) OrcaSlicer project 3mf file is uploaded, so you can see all other settings I used for printing. STEP file is uploaded. It is possible that the bushing will be compatible with other chair and castors from other manufacturer. You can also try to print if from TPU (I did not do that).
