Planetary Gear for Servo Motor
SKU 3DPW-pr-752263
$38.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~40 g
- Print time
- ~4.5 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

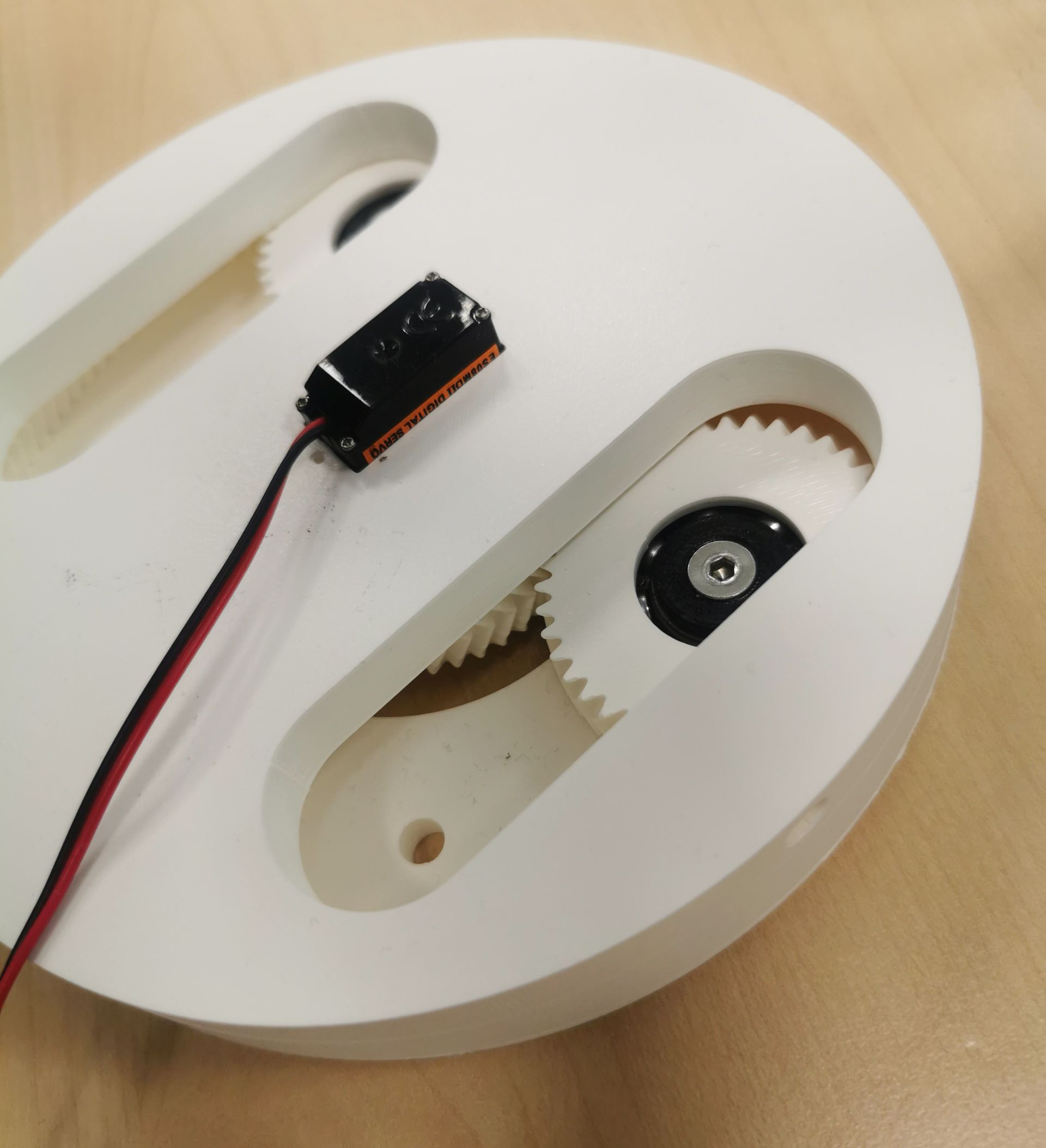

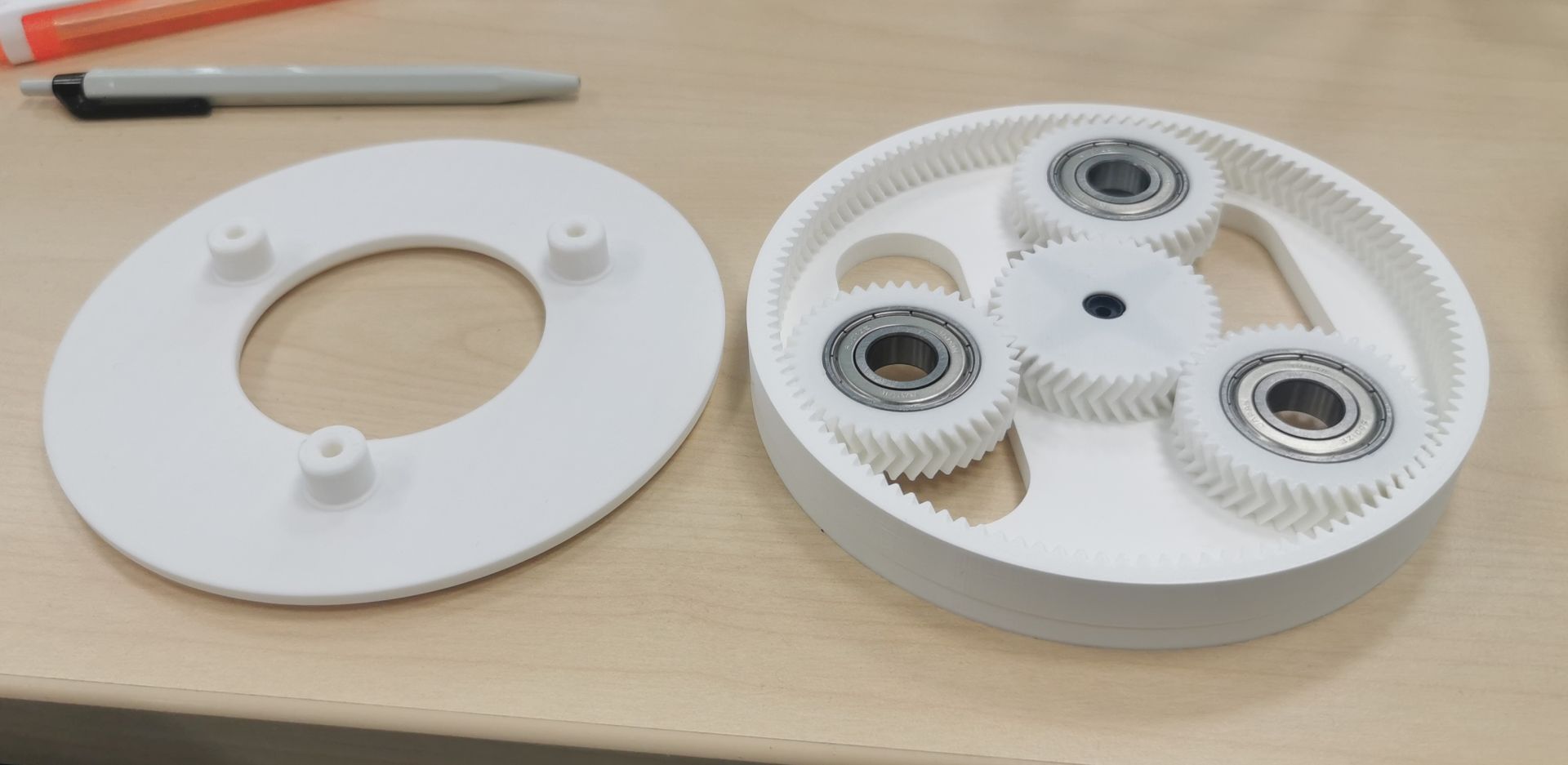

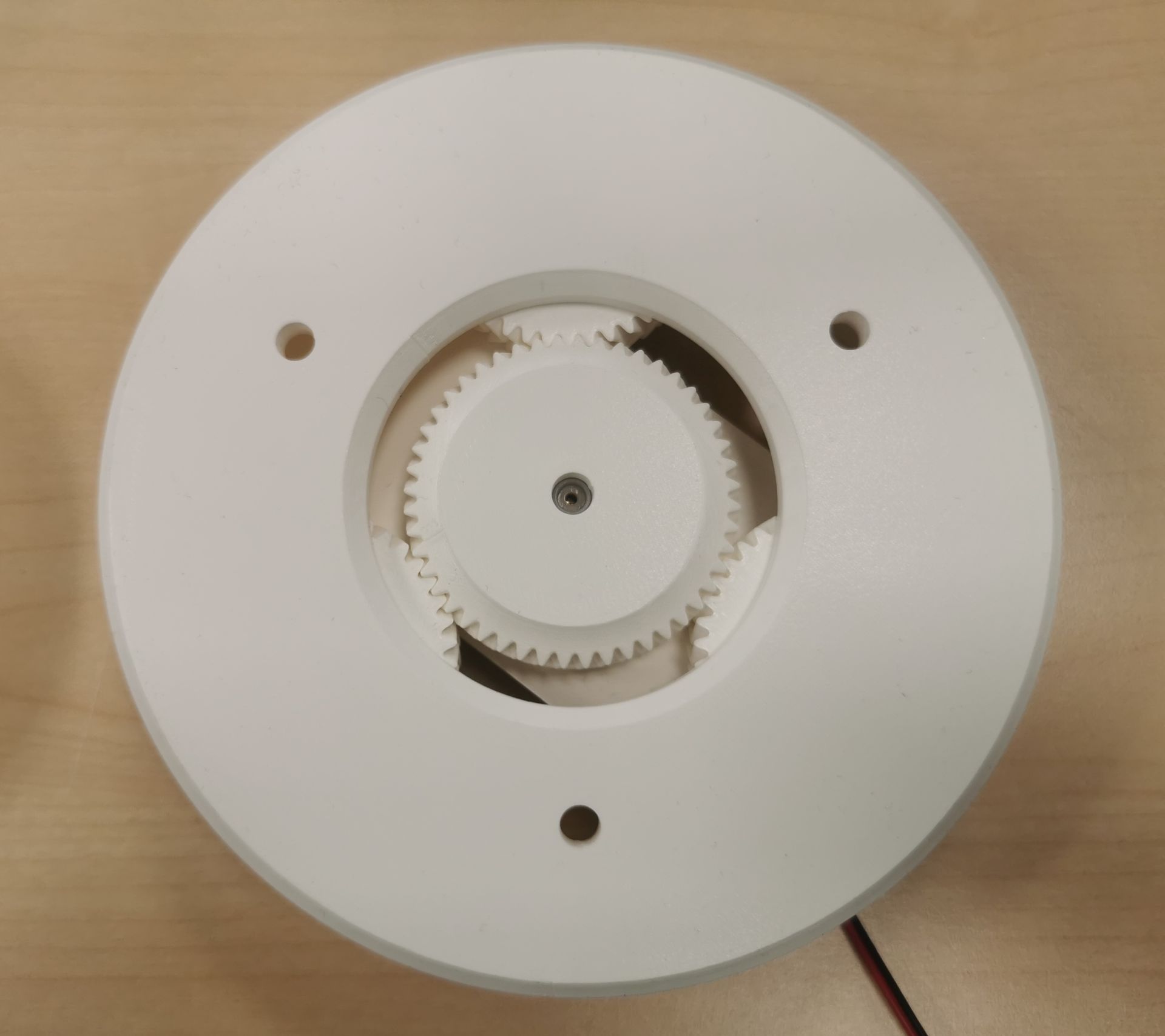

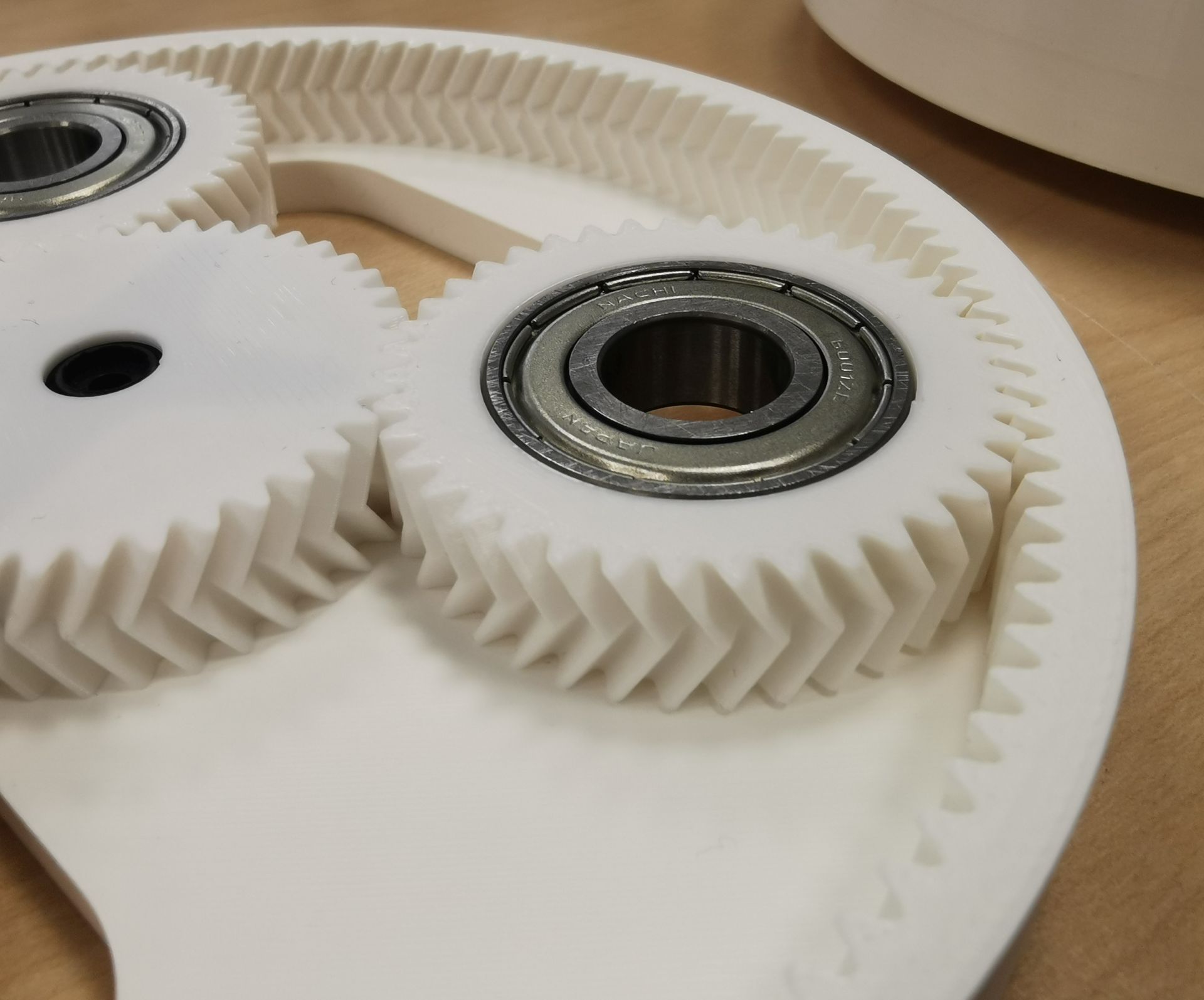

Allows to rotate large object with a small servo motor. Material1x emax Servo ES08MDII 13g (inside potentiometer removed, soldered cable directly to motor to allow 360° rotation)3x bearing 6001-Z or similar (OD 28mm, ID 12mm, Thickness 8mm)3x M4 x 8mm countersunk screwOptional 7x M4 heat thread inserts (3x top, 4x side) CAD Modelhttps://cad.onshape.com/documents/b67ccde58cd5918a06d64383/w/8b119bf43b62be637d772378/e/ae7abe41f3100be4ed87bec7?renderMode=0&uiState=65c0f5f6adb5f31920fab969
Tags: motor, gear, bearing, servo, motorized, planetary, resin print, nz made, made to order
Design credit: Original design by sternli27 - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Planetary Gear for Servo Motor is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
