Prusa MK4 Filament Guide & M10 pneumatic fitting adapter

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

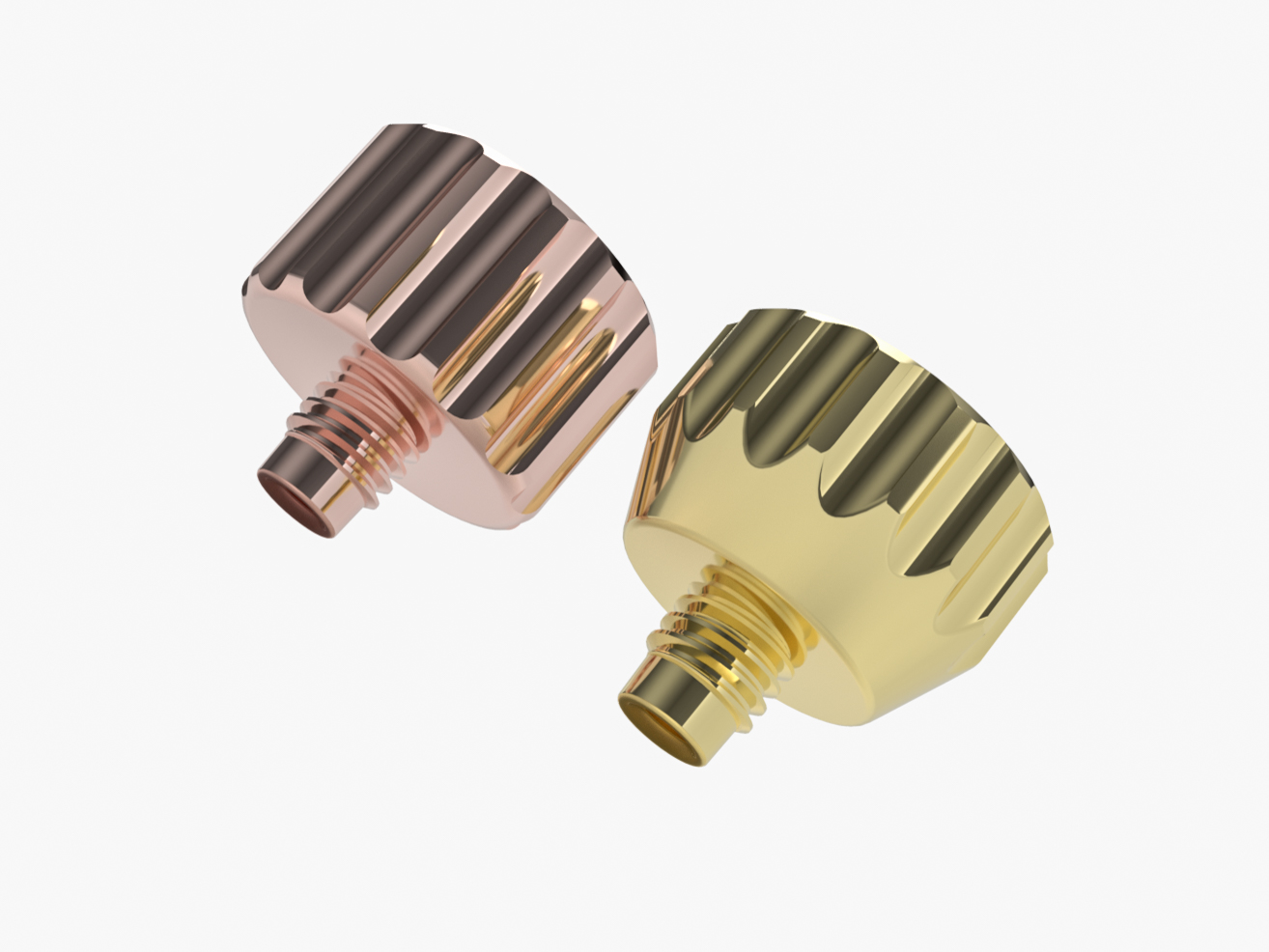

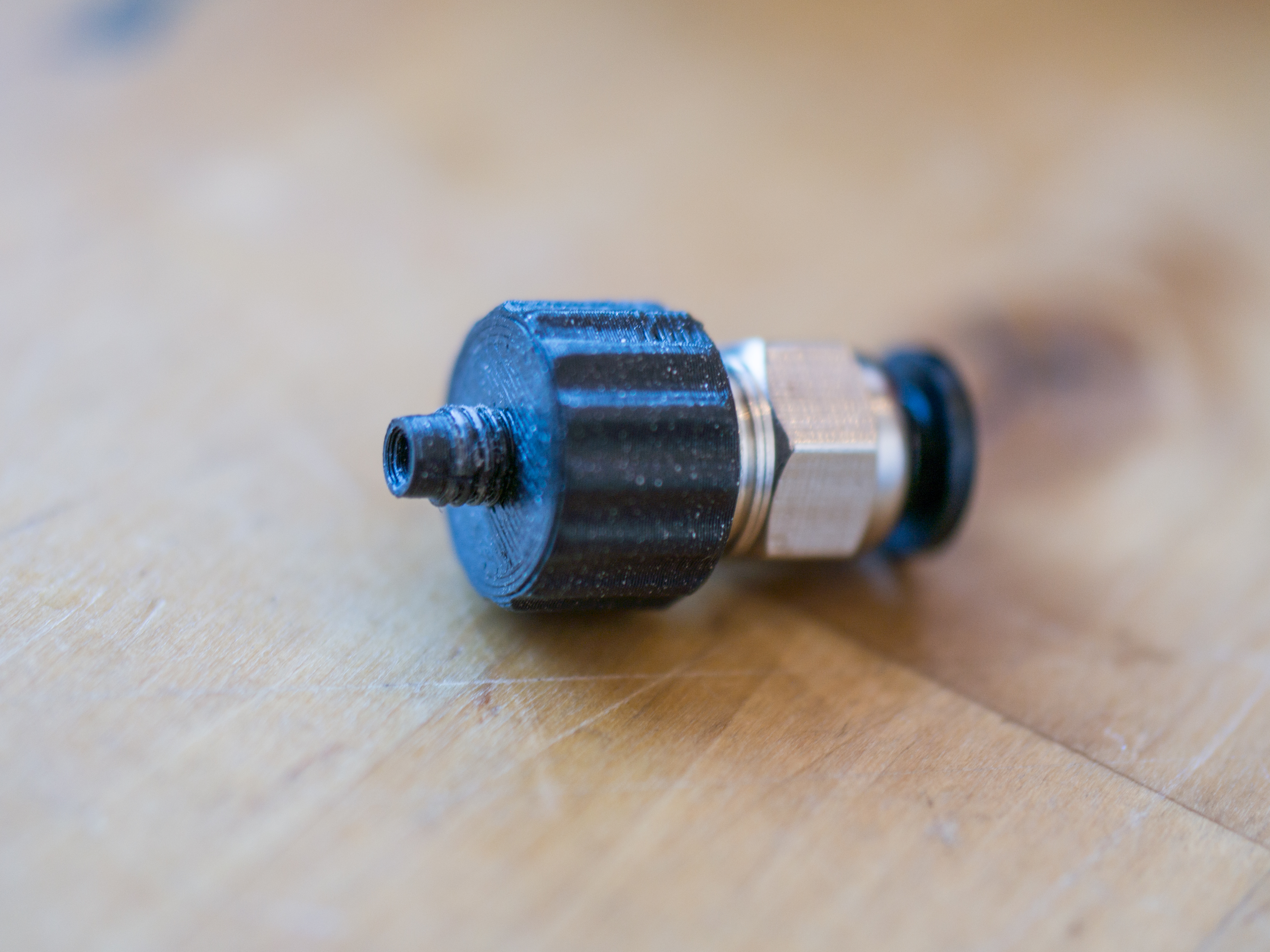

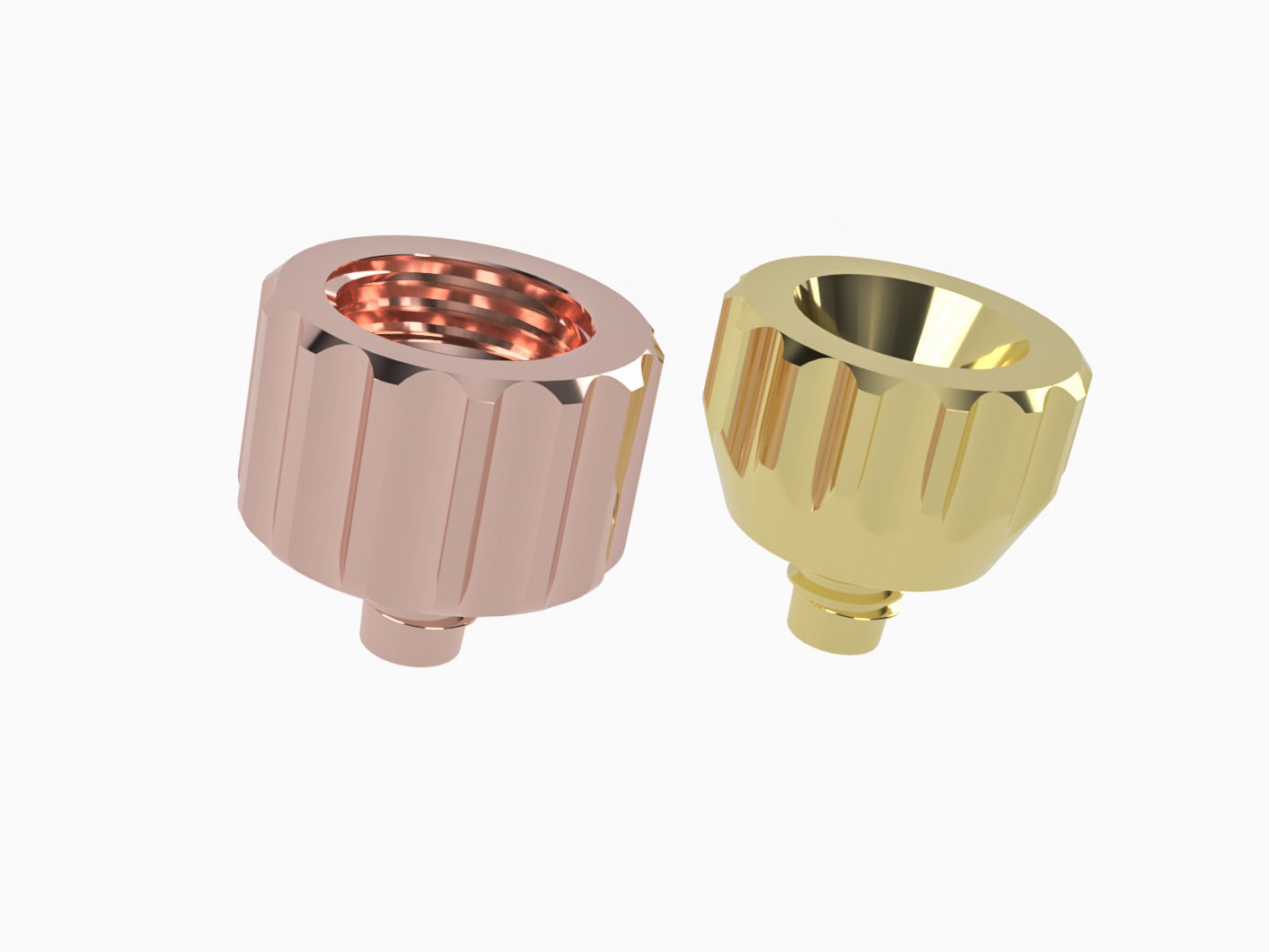

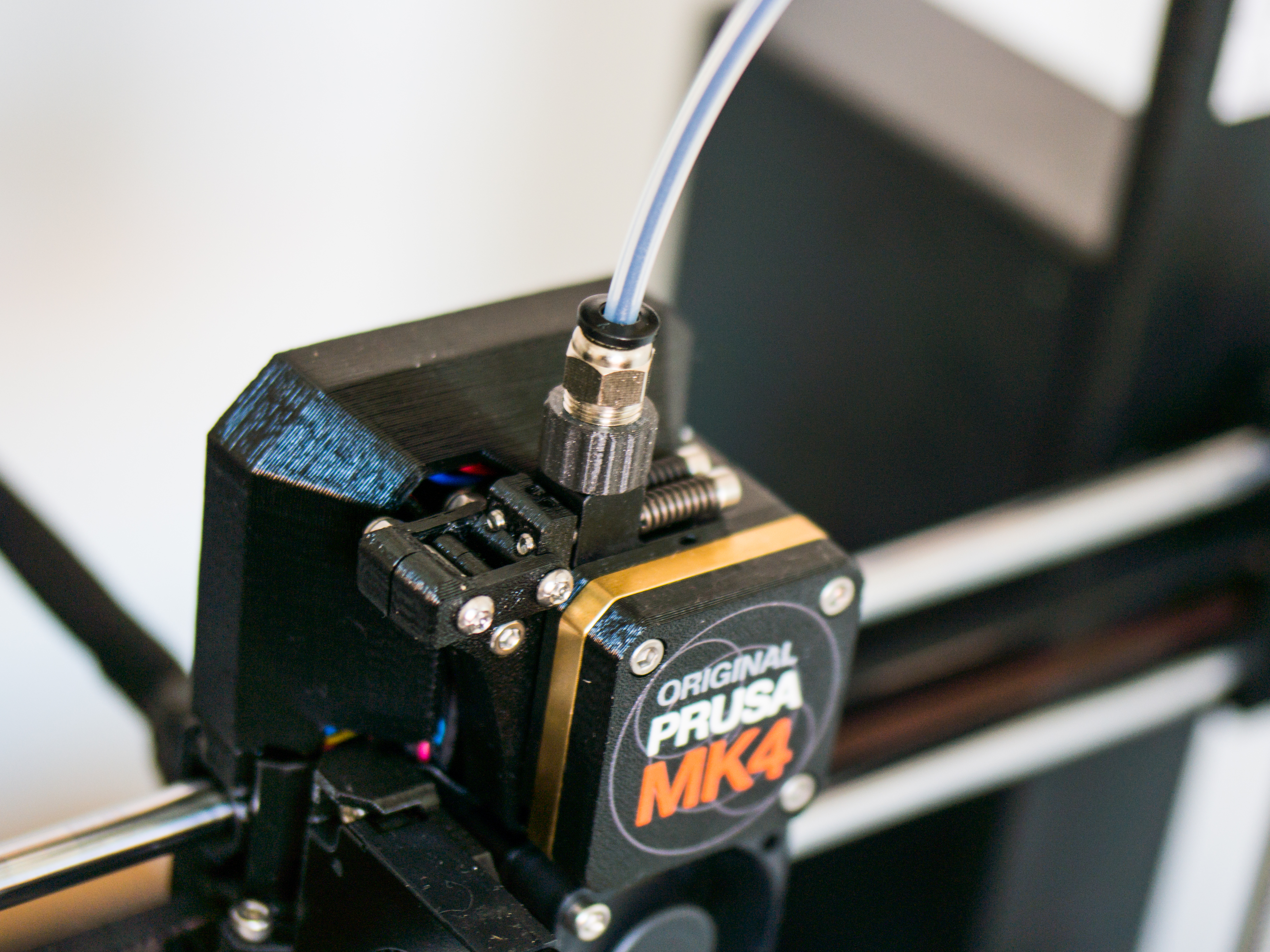

Heyho I have two designs here. The first is to prevent the filament from being pulled over the metal thread. The M5 -> M10 adapter is for people who don't have a suitable M5 pneumatic fitting at hand but, like me, have lots of M10 versions lying around. Obviously there is not much space left between 1,75 mm filament + tolerance to the M5 thread. Therefore it is very important that this adapter is printed as high quality as possible and with a good layer adhesion. If it breaks off, you have to carefully unscrew the plastic thread. To feel good I tried to break off the small M5 thread of the printed parts with a lot of force. But I didn't manage it :) I printed them with ASA 0,15 mm layer height & 0,4 mm nozzle. PETG or similar materials that are a bit more temperature resistant will certainly work well too! Have fun and keep pritnin! Alternative solutions The most obvious alternative is to get a pneumatic fitting with a M5 thread and combine it with some PTFE tube. Or you just put a 1-2 cm piece of PTFE tube around the filament. This should then stay in place in the extruder and prevent friction on the thread. Instead of a pneumatic fitting, you can also simply feed the PTFE tube directly into the extruder. But that doesn't feel so neat to me :)
