Repair/Replacement for a Salomon Sky Boot Heel

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

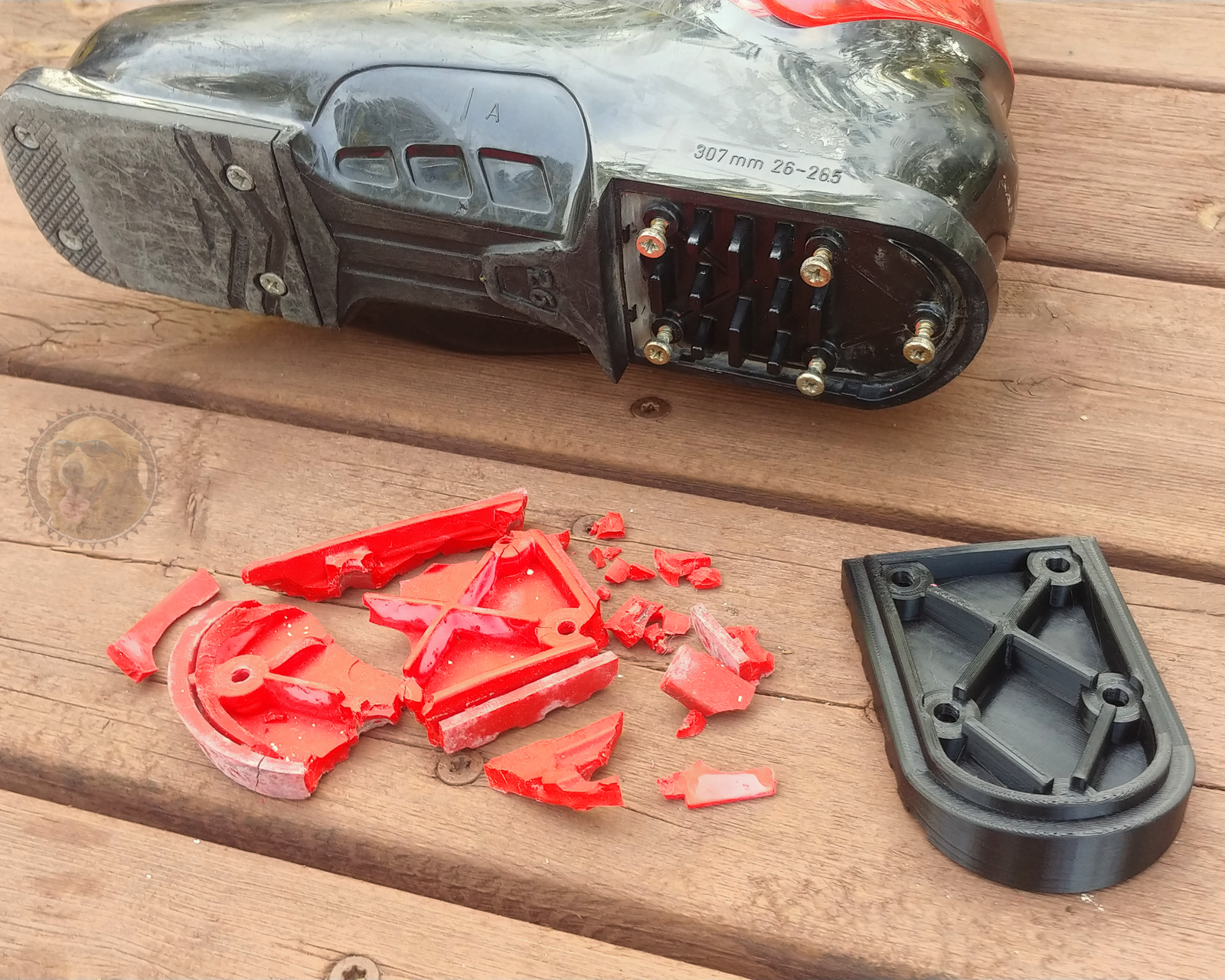

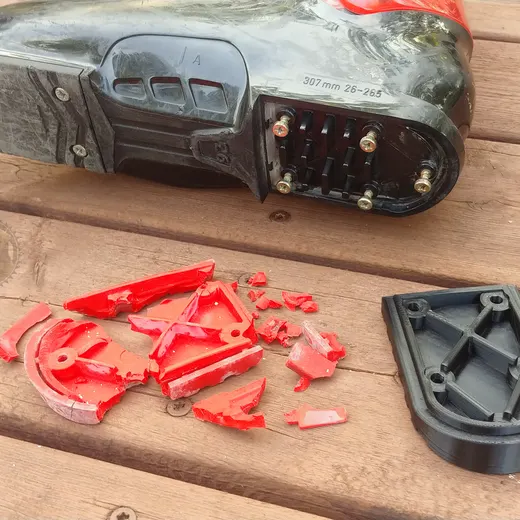

1.- IntroductionAs with all prints I do, all start or from a need, a fix or a lust-to-have. This model was designed as a fix for a broken heel in a sky boot from a good friend, that got deteriorated due to age and use. 2.- Design ProcessThe design process was straight forward. It was done iteratively preparing test prints for being sure that the estimated measurements were correct, such as hole placement, check that the heel angle is correct and that there is no problem with the fittings. Once all was perfect it was easy to finalize the design and print the complete part. It was fun to design the heel part with Fusion360, based on a very deteriorated part, especially when you don't want to touch the other heel pair part until you finish it (from the other boot) 3.- Printing the ModelFor printing, it is required to change the vertical shell perimeters to 4 (or more) to enforce the sole places where it gets attached to the boot (holes for the attachment screws) I did not turn on supports, although it is possible to add supports for the sole patterns to get well printed. I suggest printing in PET-G, or even in a hard TPU for having a better feeling. (I did not try TPU because I do not have TPU here) PrinterPrusa MINI+.FileSalomon-Impact-X7-Sky-Boot-Heel-Replacement.stlPrint Time4:33:03 hours. (Collected from Octoprint after printing)Filament used18.67mt (55.24gr) eSUN Black PETG. (Collected from Prusa Slicer)Layer height0.2mm.Printer Nozzle0.4mm.Perimeters4 to enforce walls around the holes.I have upload the GCODE file as well. Feel free to use the one that suits you best. 4.- Other Replacement prints I designed:Garden Tying Wire Reel.Repair/Replacement for a sliding door handle.Square Furniture Foot Leg Cover Cap (20x20x20 mm).Repair (Replacement) for a broken strainer handle.Tupperware Round Cake Taker Lock. 3.- Change Log:Upload: 2023-10-09: Initial Version. 4.- Last WordsPlease don't forget to ★ Rate and ❤ LikePost your Makes to earn Prusameters! Do not hesitate to ask questions, feedback is essential to making better models. You are kindly invited to follow me to get updated when upload new models. Happy printing & Greetings from the Galilee. Hope it was not TL;DR
