Sprockets/Gears For Print In Place Gear Chain - Fischertechnik

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

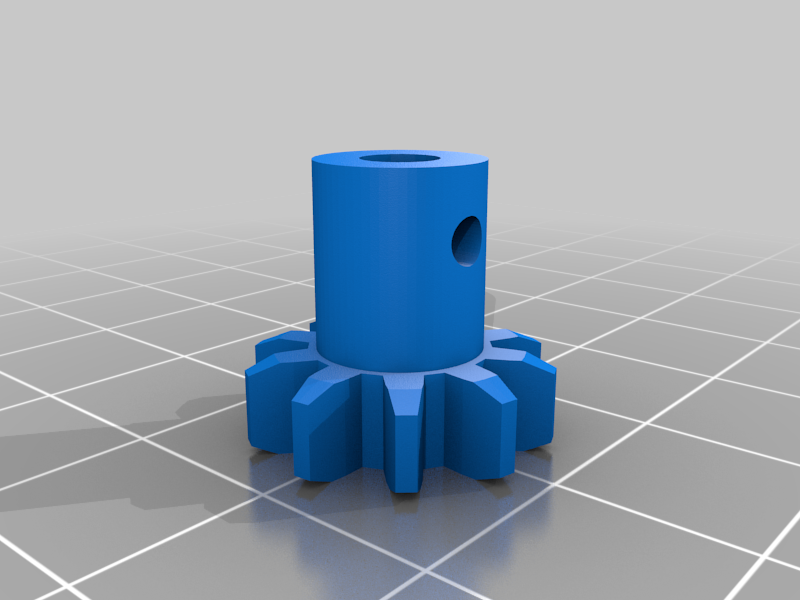

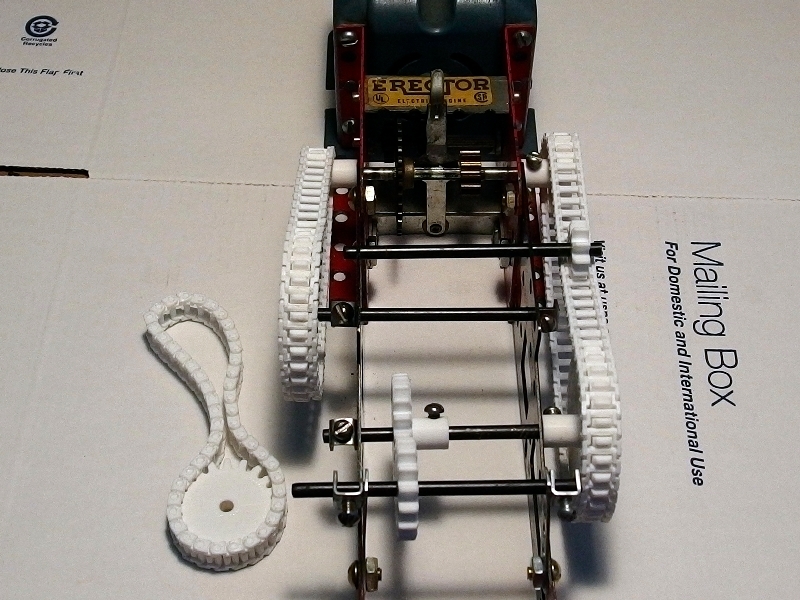

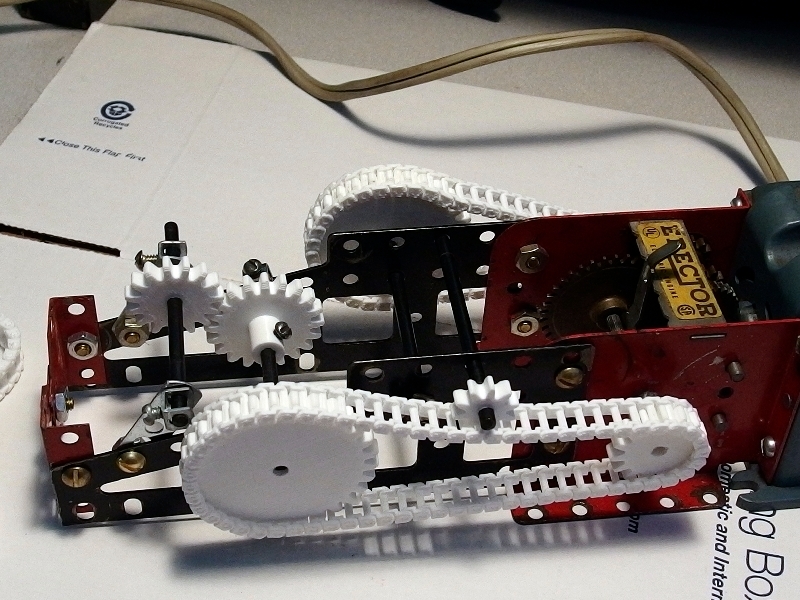

Set of sprockets or gears for the chain listed below. Each pair is a set screw locking hub and a idler style. 10, 15, 20 and 30 tooth to get many ratio options. https://www.thingiverse.com/thing:3313211 fischertechnik compatible parametric print in place gear chain This chain looked like it would work with sprockets. These sprockets/gears are designed to be used with the vintage Gilbert Erector Set of which I have a collection. The axle size is 4mm nominal for the pulleys and gears in the construction set. The axle holes may have to be drilled as needed to fit. The set screw holes need to be drilled 2.5mm and threaded for 6-32. I followed instruction for printing the chain and had good results with 0.16 layer and 3 walls and triangle 50% infill. The chain needs each link broken free, using care, by hand with a flat style needled nose plyers. Use these Tinkercad links to modify for your own use: https://www.tinkercad.com/things/26aHBOcTcv1 https://www.tinkercad.com/things/11dVm8HRFgD https://www.tinkercad.com/things/7yYsuiGNrAP https://www.tinkercad.com/things/1VgmrO9DXt2 Print Settings Printer Brand: Creality Printer: Ender 3 Rafts: No Supports: No Resolution: 0.16 Infill: 50% triangle Filament: Hatchbox PLA White Notes: Bed temp 60 Nozzle 205 Speed 60 Category: Construction Toys
