SSD 5.25 bay adapter

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

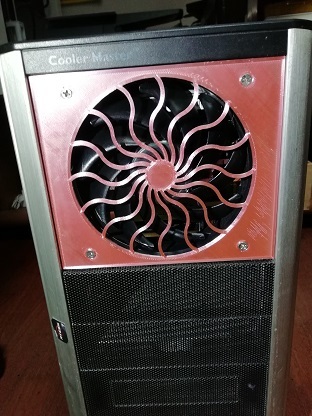

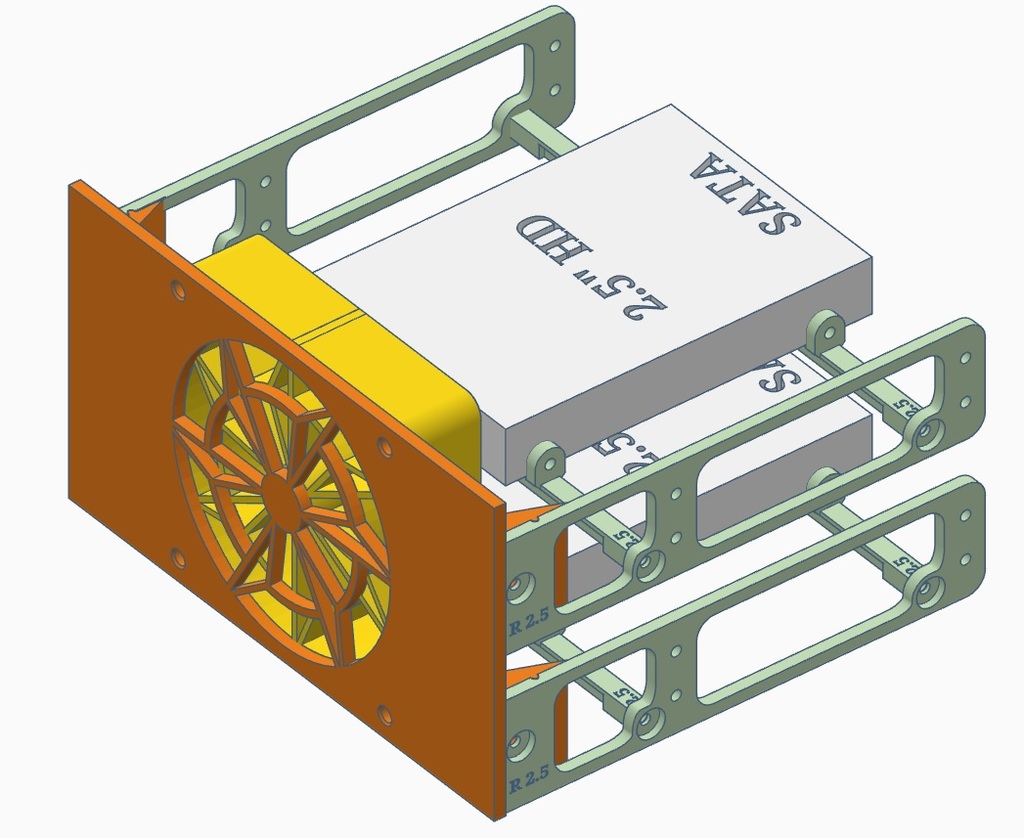

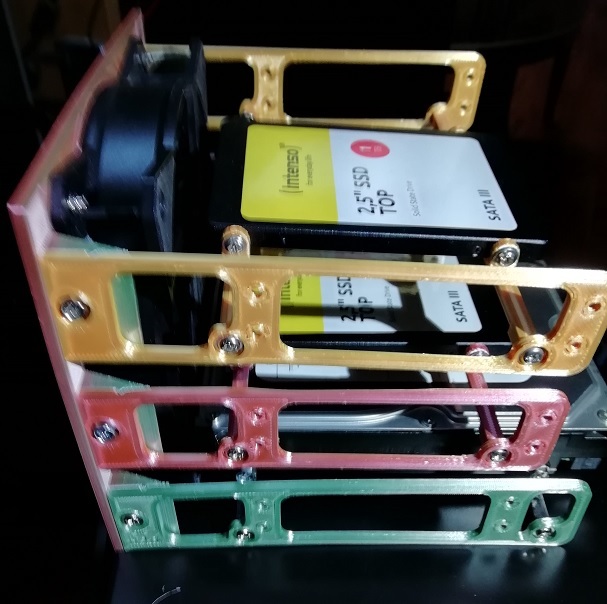

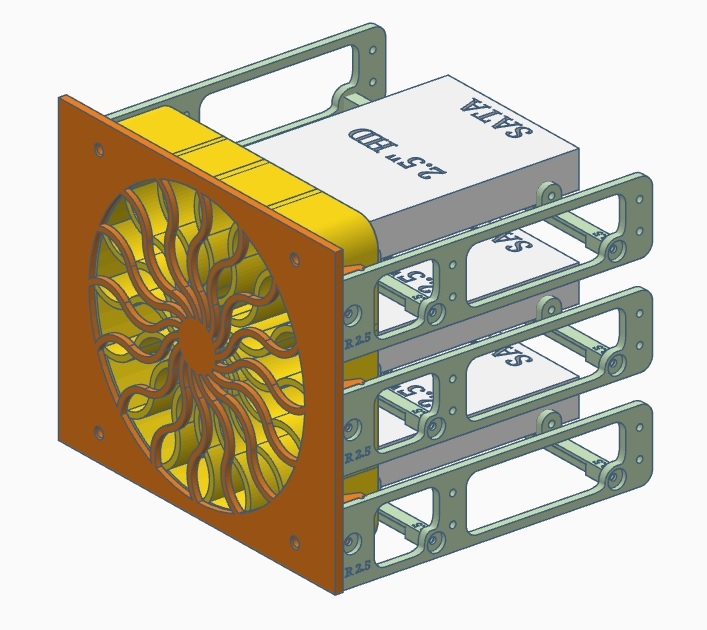

A 5.25-inch slot adapter that accommodates 3.5 and or 2.5-inch drives as well as an optional 80 or 120mm fan Available in 3 versions: 1 slot with or without honeycomb ventilation holes. 2 slots with or without honeycomb ventilation holes or with an 80 mm fan 3 slots with or without honeycomb ventilation holes or with a 120mm fan I have printed and I am using the three slots with 120mm fanversion, I have tried to print the 1 slot version with ventilation (see photo) all the others are to be tested. Both 3.5-inch and 2.5-inch disks (ssd) can be installed (in any mix), you must print two lateral supports for each hard disk (attention there is the right and the left) and two bars on which to screw the disk, the bars will then go screwed to the side supports; everything must then be screwed to the front mask. for each disk you will need 10 screws plus two more to fix the adapter to the case. edit online in tinkercad: https://www.tinkercad.com/things/628c29Pxj19 You can find all my models here, thank you who will appreciate with a download or with a like
