Gears & Mechanisms
Tchibo Beko Grundig SMEG Severin Oster gear
SKU 3DPW-pr-1212060
$33.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~40 g
- Print time
- ~4.5 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

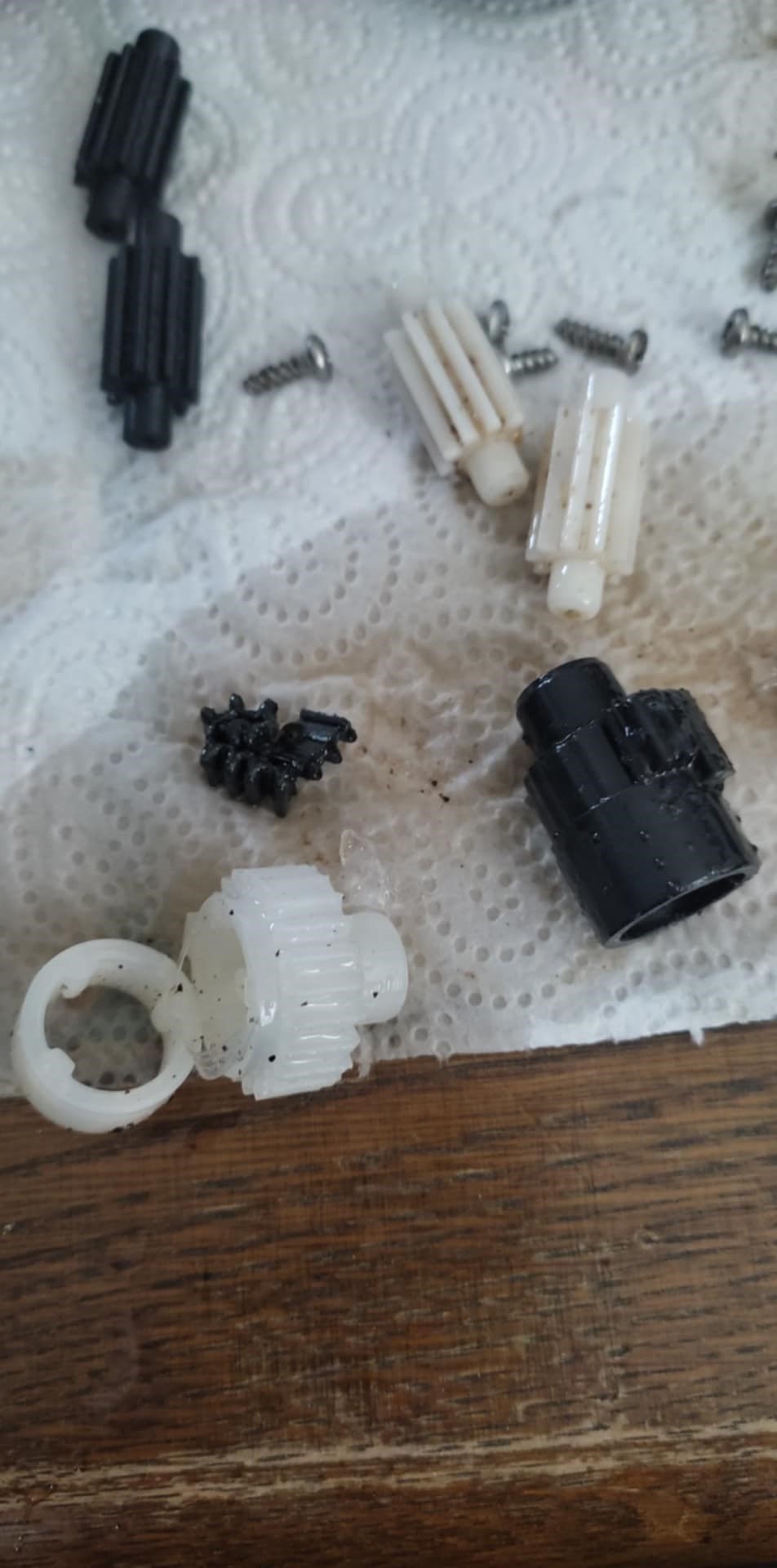

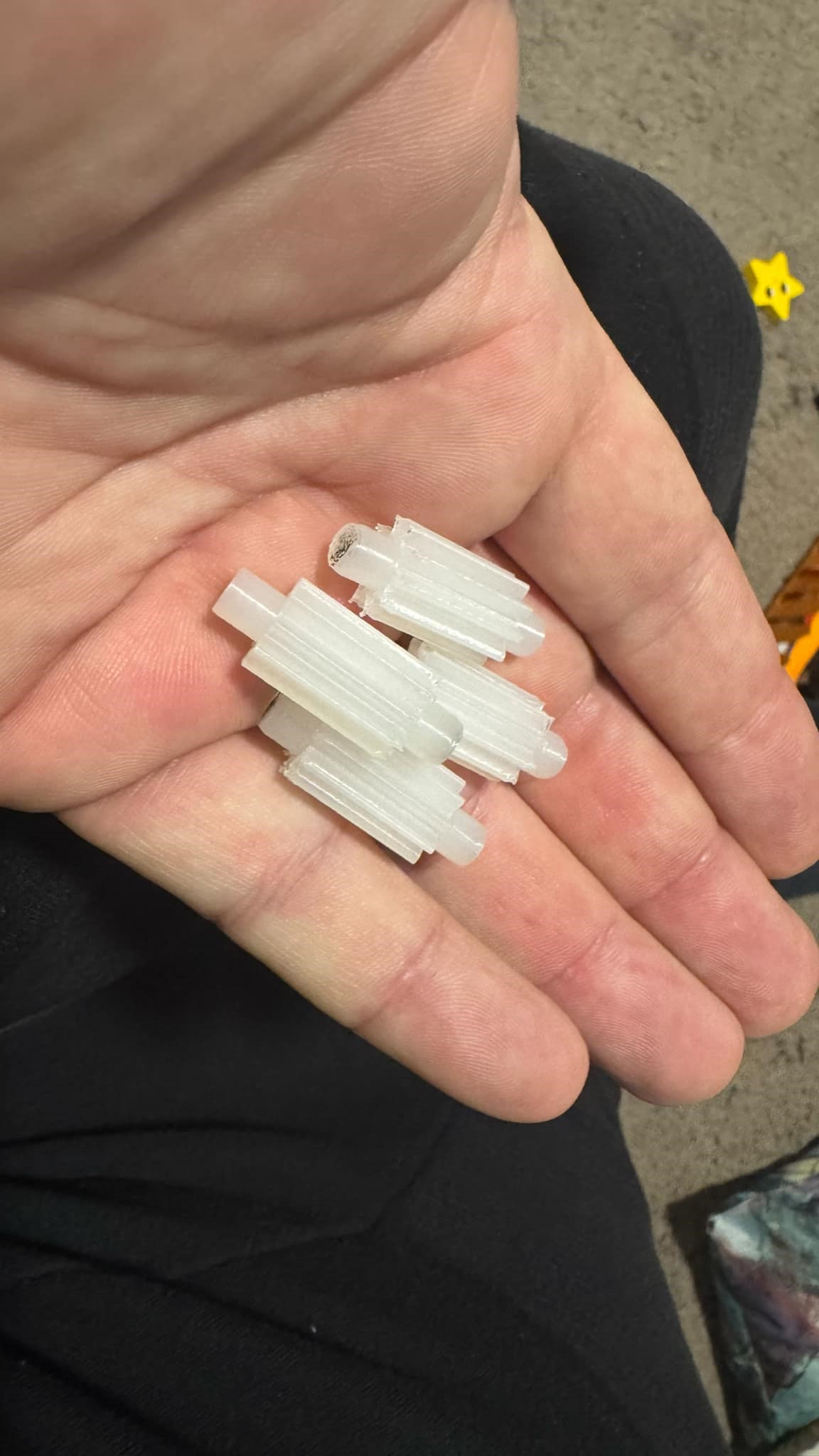

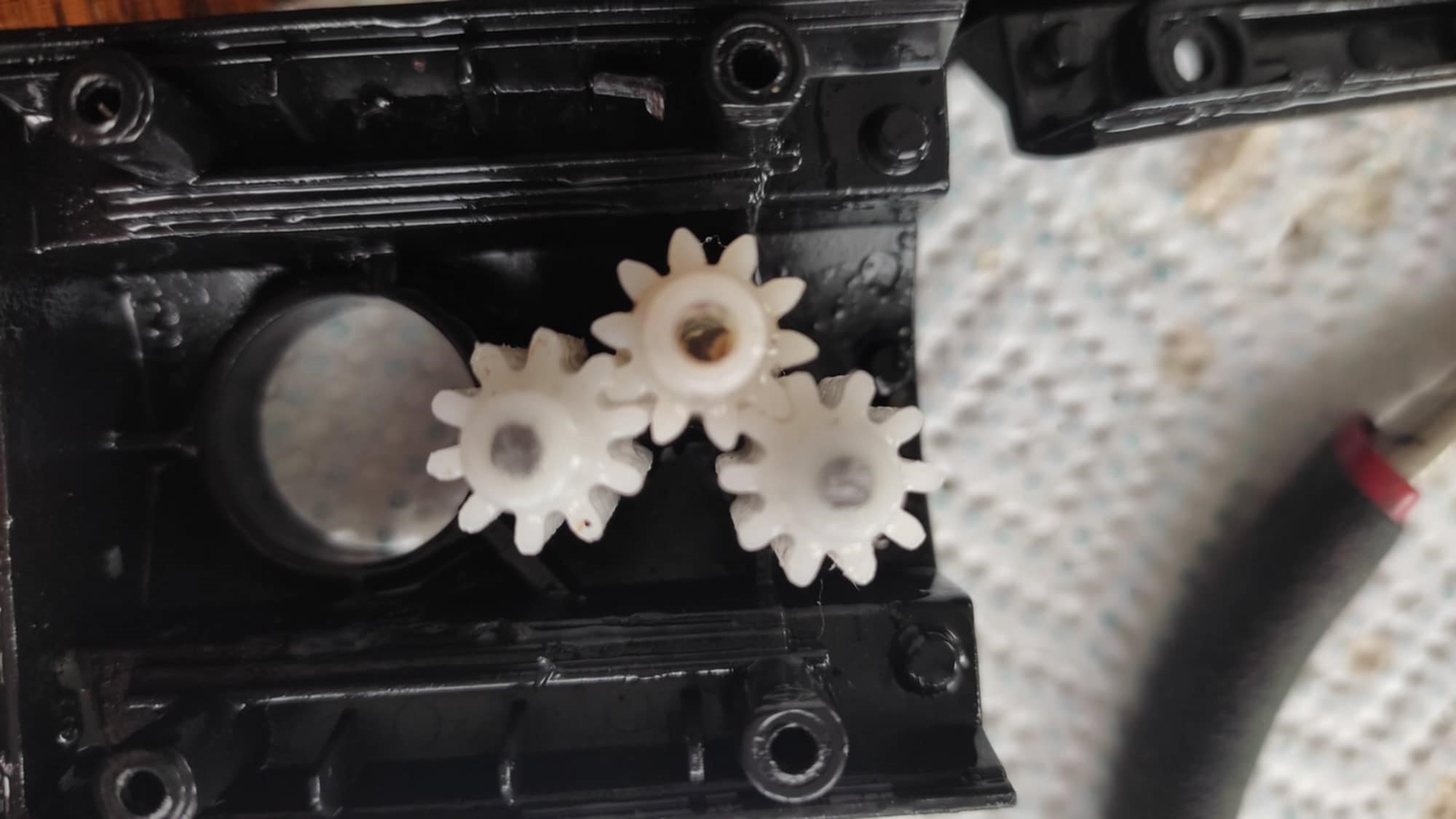

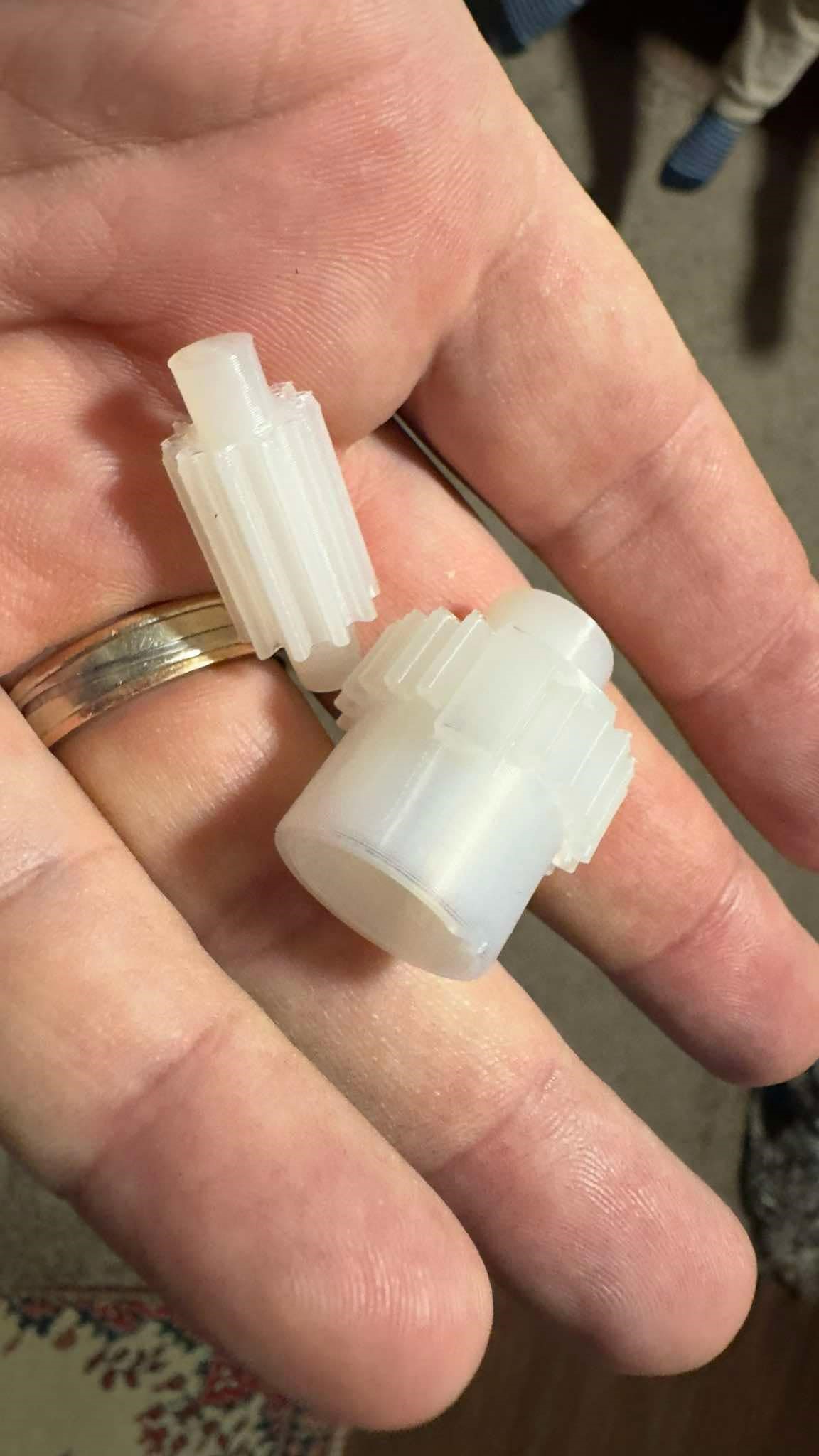

Hello ! If you like my work, please rate it. My brother repairs coffee makers as a hobby. A regular problem in a Tchibo Esperto coffee machine is that these gears break. Often, aftermarket gears don't last long either. That's why when he ordered it, I drew it for him. As it turned out, these gears also occur in other coffee makers: -Tchibo Esperto Series -Beko CEG 5301 -Grundig KVA 4830 -SMEG BCC01, BCC02 -Severin KV 8090 -Oster BVSTEM8100 I haven't tried it with a resin printer, only with FDM. PETG and CF PLA broke quickly. I haven't tried ABS. Nylon filament holds up well. The support shown in the pictures worked for me. 4-wall thickness, 0.2mm layer height, 100% infill. Slower printing and lower layer height increases layer adhesion. I printed the nylon material at 245 degrees on a Buildtak Nylon+ surface with a bed temperature of 60 degrees. There is a pin inside the larger gear. It is necessary because it presses a switch. Bb.
Tags: crash, gear, drive, machine, brewing, fix, resin print, nz made, made to order
Design credit: Original design by Krisztián Adorján - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Tchibo Beko Grundig SMEG Severin Oster gear is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
