Ultimate DIY Replacement Knob Pack (for Samsung, Smeg, Toyota & More!)

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

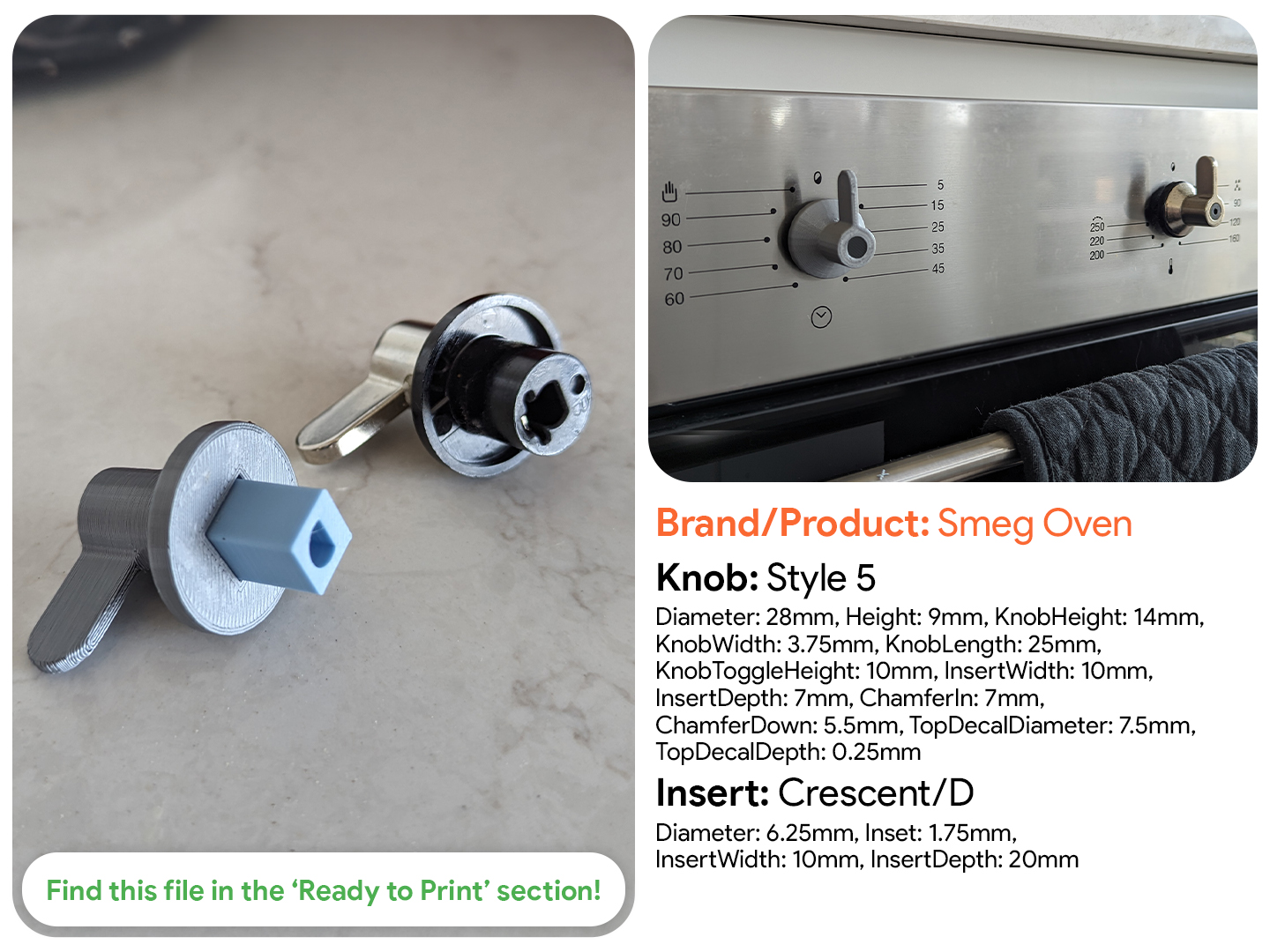

I originally designed a replacement 3D printed knob for a Smeg oven after struggling to find a replacement. I've since added a total of 7 customisable Knob designs and 5 customisable Inserts that can be mixed and matched to create the perfect replacement knob for almost any brand. Please share your makes (along with the customisation settings you used and your exact product) and I'll add it to the brand guide at the bottom of this page. My designs are also open source (CC BY-SA 4.0), so please feel free to remix and adjust the models to your exact needs. I'm continuing to update this model and documentation, please let me know if you have any suggestions! There is a wide variety of knob styles on the market. To get the best match between your 3D printed knobs and your existing knobs, follow these steps: Choose your Knob style. There are over 7 styles to choose from below.Customise your Knob using Fusion 360 and the customisation instructions below.Choose your Insert style. There are 5 styles to choose from below.Customise your Insert using Fusion 360 and the customisation instructions below.3D print your customised Knob and Insert. You can print them seperately, or combine them.Test your finished replacement Knob. If the Insert doesn't fit, print a new one.Glue the Knob and Insert togetherShare your completed prints and settings for others to use.Thanks to @3DPrintSmith for creating the following video tutorial: All models can be customised using the free or paid versions of Fusion 360. Appliance brands have varying sizes and styles of knobs. Because of this, the Knobs and Inserts have all been designed parametrically so that they can be easily adjusted to fit the exact dimensions of the knob you're replacing. Each model has different customisation options (such as diameter, height, inset, etc) that can be viewed in the Component List section below. Enter your knob measurements into Fusion 360 (using the instructions below) to get a good fit. 1. Download the .f3d files for your chosen Knob and Insert style. 2. Open the downloaded files in Fusion 360. 3. Open the Parameters window in Fusion 360. Click here for help. 4. Change the values to customise your Knob or Insert. More information about the customisation options can be found in the Component List section below. 5. Export your customised model and 3D print. Each style of Knob and Insert have different customisation options that are listed below. You can easily edit the files using Fusion 360 and the customisation instructions above. Below are optimal settings that have been found for specific brands. You can find these models in the “Ready to Print” section. Please share any optimal settings (along with photos) that you find and I'll add them below. Brand/ ProductDetailsSmeg Oven (SFA562X2) Find this model in the “Ready to Print” section. Knob: Style 5 Diameter: 28mm, Height: 9mm, KnobHeight: 14mm, KnobWidth: 3.75mm, KnobLength: 25mm, KnobToggleHeight: 10mm, InsertWidth: 10mm, InsertDepth: 7mm, ChamferIn: 7mm, ChamferDown: 5.5mm, TopDecalDiameter: 7.5mm, TopDecalDepth: 0.25mm Insert: Crescent Diameter: 6.25mm, Inset: 1.75mm, InsertWidth: 10mm, InsertDepth: 20mm Prusa MK3 3D Printer (MK3S+) Find this model in the “Ready to Print” section. Knob: Style 6 Diameter: 25mm, Height: 15mm, PointerDepth: 0.01mm, InsertWidth: 15mm, InsertDepth: 10mm Insert: Round Diameter: 6mm, GripLength: 0.2mm, GripQuantity: 50, InsertWidth: 15mm, InsertDepth: 10mm Artusi Clothes Dryer (ACD45A) Credit to @Rebikbok for sharing these settings Find this model in the “Ready to Print” section. Knob: Style 7 Diameter: 42mm, Height: 15mm, GripCount: 32, GripHeight: 0.5mm, GripWidth: 2mm, Chamfer: 0.5mm, InsertWidth: 17.5mm, InsertDepth: 10mm Insert: Eye Diameter: 6mm, RectangleLength: 15mm, RectangleHeight: 2.5mm, AsymmetricalOffset: 2mm, InsertWidth: 17.5mm, InsertDepth: 20mm Blue Yeti Microphone v Knobs: Style 7 • Back Knobs: Diameter: 15mm, Height: 7mm, GripCount: 36, InsertWidth: 7.5mm, InsertDepth: 5mm, Chamfer: 0.5mm, GripHeight: 0.25mm, GripWidth: 0.5mm • Front Knob: Diameter: 15mm, Height: 15mm, GripCount: 20, InsertWidth: 7.5mm, InsertDpeth: 10mm, Chamfer: 0.75mm, GripHeight: 0.5mm, GripWidth: 1mm Inserts: Crescent/D Diameter: 6.125mm, Inset: 1.5mm, InsertWidth: 7.5mm, InsertDepth: 13mm / 19mm / 22.5mm Lepy LP-269s Find this model in the “Ready to Print” section. Knob: Style 6 Diameter: 13mm, Height: 10mm, InsertWidth: 8.25mm, InsertDepth: 5mm, Chamfer: 0.25mm, PointerDepth: 1mm, PointerWidth: 2mm, PointerHeight: 2mm Insert: Round Diameter: 6.66mm, GripLength: 0.5mm, GripQuantity: 16, InsertWidth: 8.25mm, InsertDepth: 5mm Toyota 2017 Land Cruiser Prado Kakadu Credit to @3DPrintSmith for sharing these settings Find this model in the “Ready to Print” section. Knob: Style 6 Diameter: 12mm, Height: 13mm, InsertWidth: 7mm, InsertDepth: 10mm, Chamfer: 1mm, PointerDepth: 1mm, PointerWidth: 2mm, PointerHeight: 3mm Insert: Crescent/D Diameter: 5mm, Inset: 1mm, InsertWidth: 7mm, InsertDepth: 5mm 11 Sep 2023V1. Initial release.13 Sep 2023V2. Improved customisation options.14 Sep 2023V2.1. Added Style 7 Knob and Eye Style Insert. Added ready-to-print files.18 Sep 2023V2.2. Added more customisation options and ready-to-print files.22 Sep 2023V2.3. Updated documentation, added photos, small fixes.26 Sep 2023V3. Updated knobs with greater customisation options. Redesigned Knob 1,3, and 4. Improved documentation with diagrams.2 Oct 2023V3.1. Updated documentation.5 Oct 2023V3.2. Added more ready-to-print files and updated documentation.
