architect lamp base (desk clamp)

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

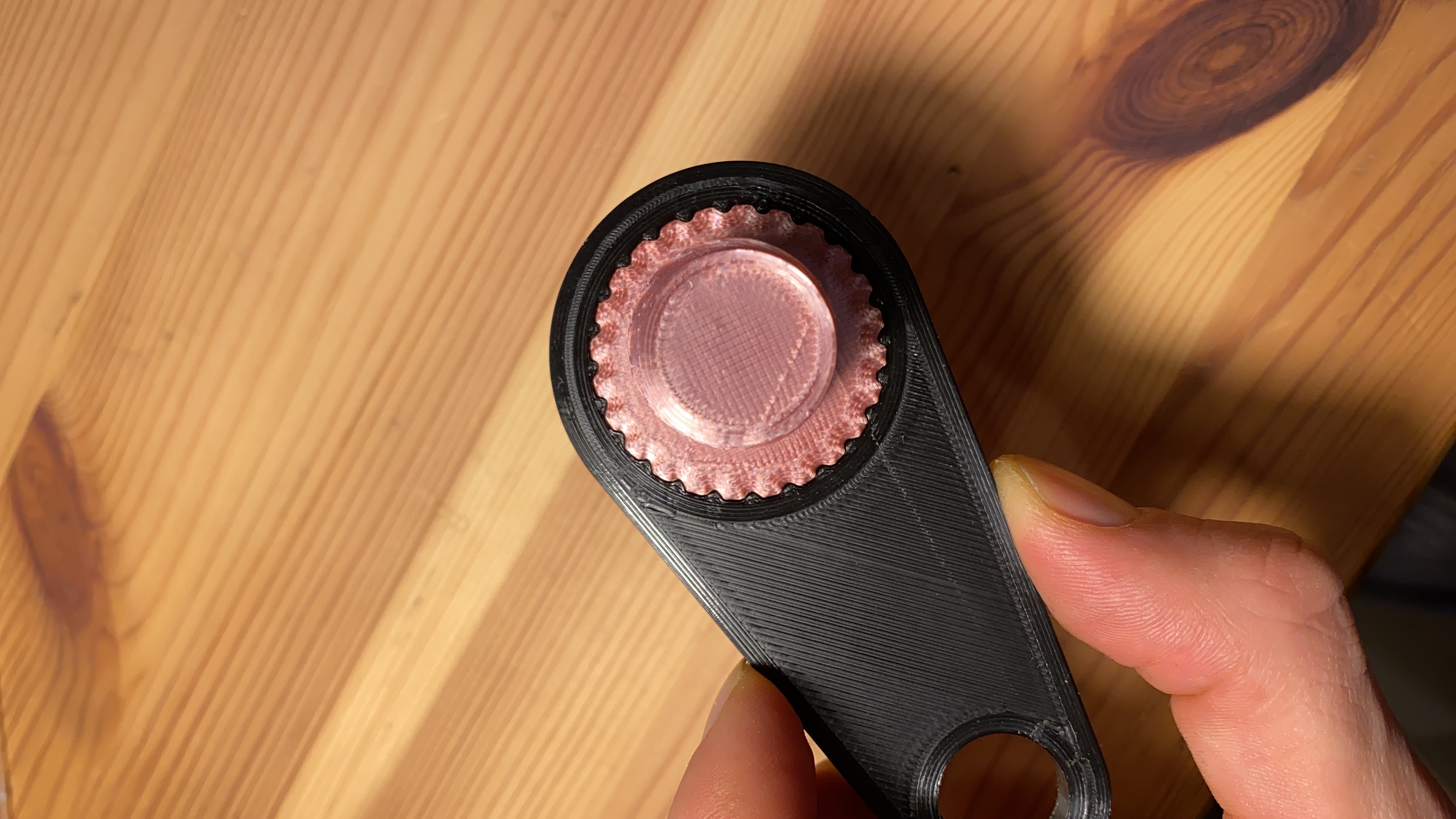

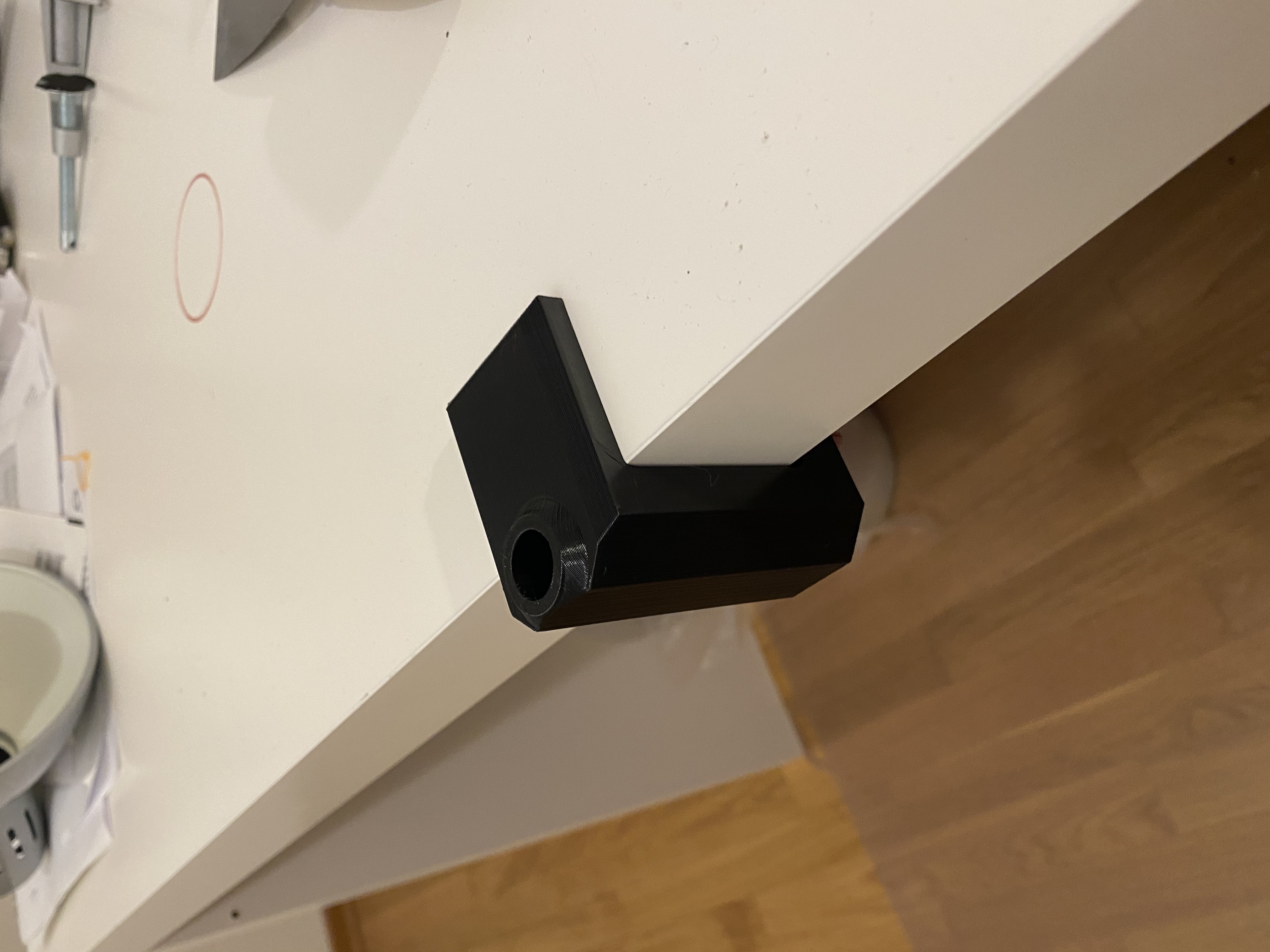

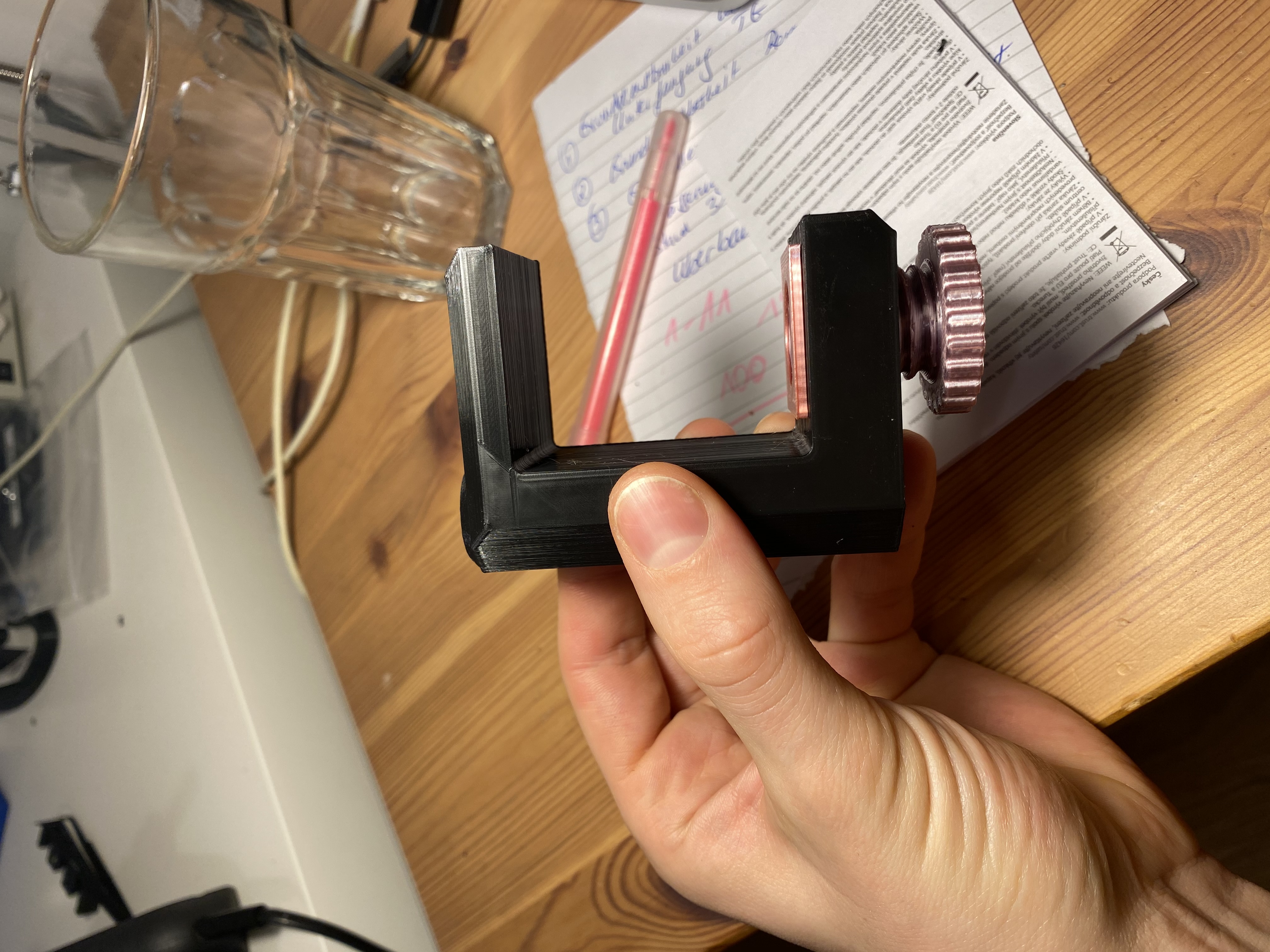

I bought a cheap architect lamp from amazon, but the original base/clamp of the lamp didn't fit my desk, so I made my own. The clamp is made of 3 parts. clamp body: Print laying on the side, so the layers are in the same plane as the bending forces. I recommend at least 3 shells, better 4 for good strength of the part. Infill as you like. I would also recommend to use supports if you have problems with bridging or overhangs.thread insert: Print laying flat, that way the surface of the threads is optimal. Use this part to adjust the fitting to screw and clamp body via horizontal expansion parameterscrew: Print with screw head on the buildplatetightening tool: print if you need to. You can tighten the screw with gloves as well.
