IKEA Navlinge Mount Replacement
SKU 3DPW-pr-790859
$34.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~57 g
- Print time
- ~3.1 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

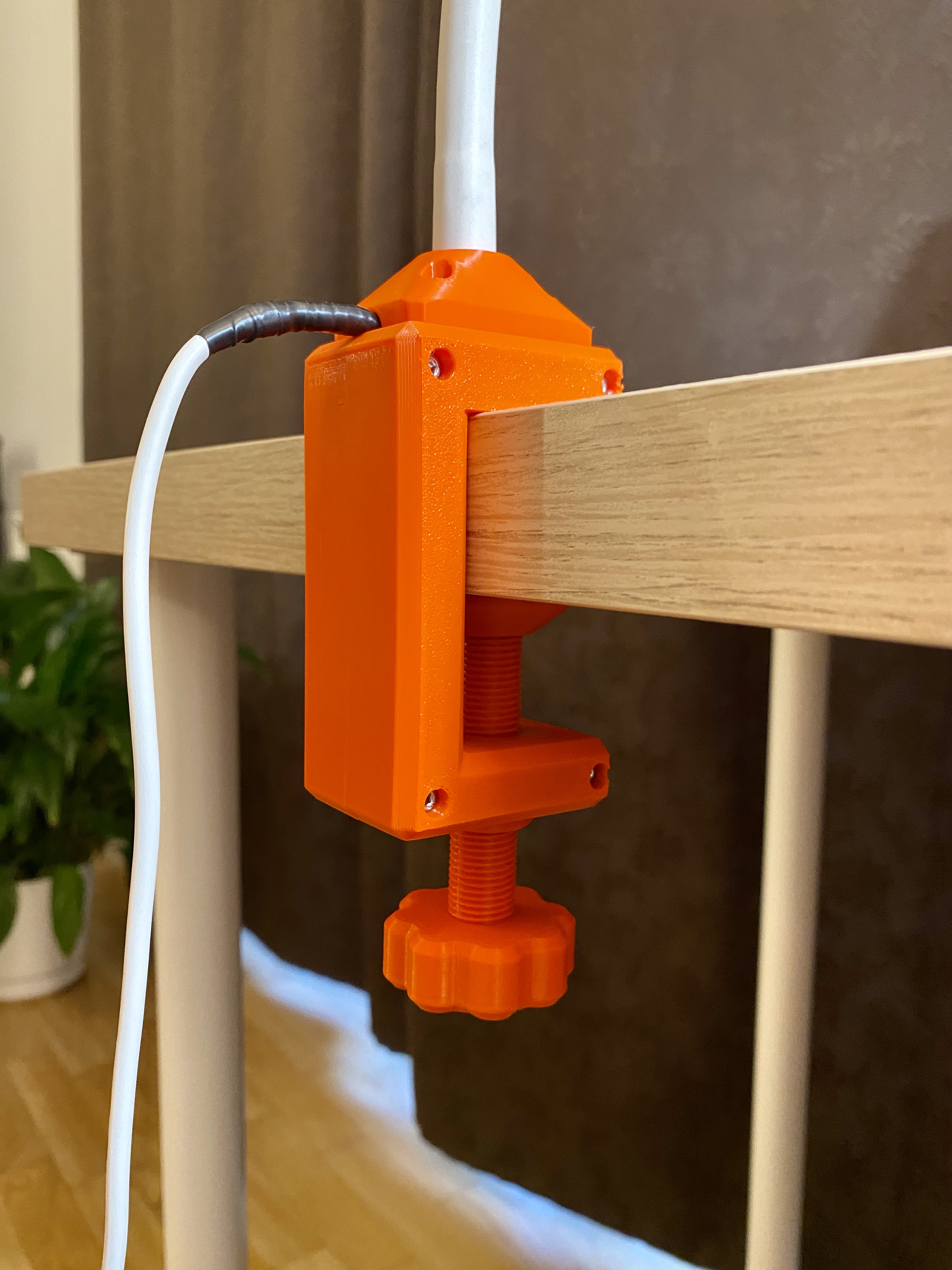

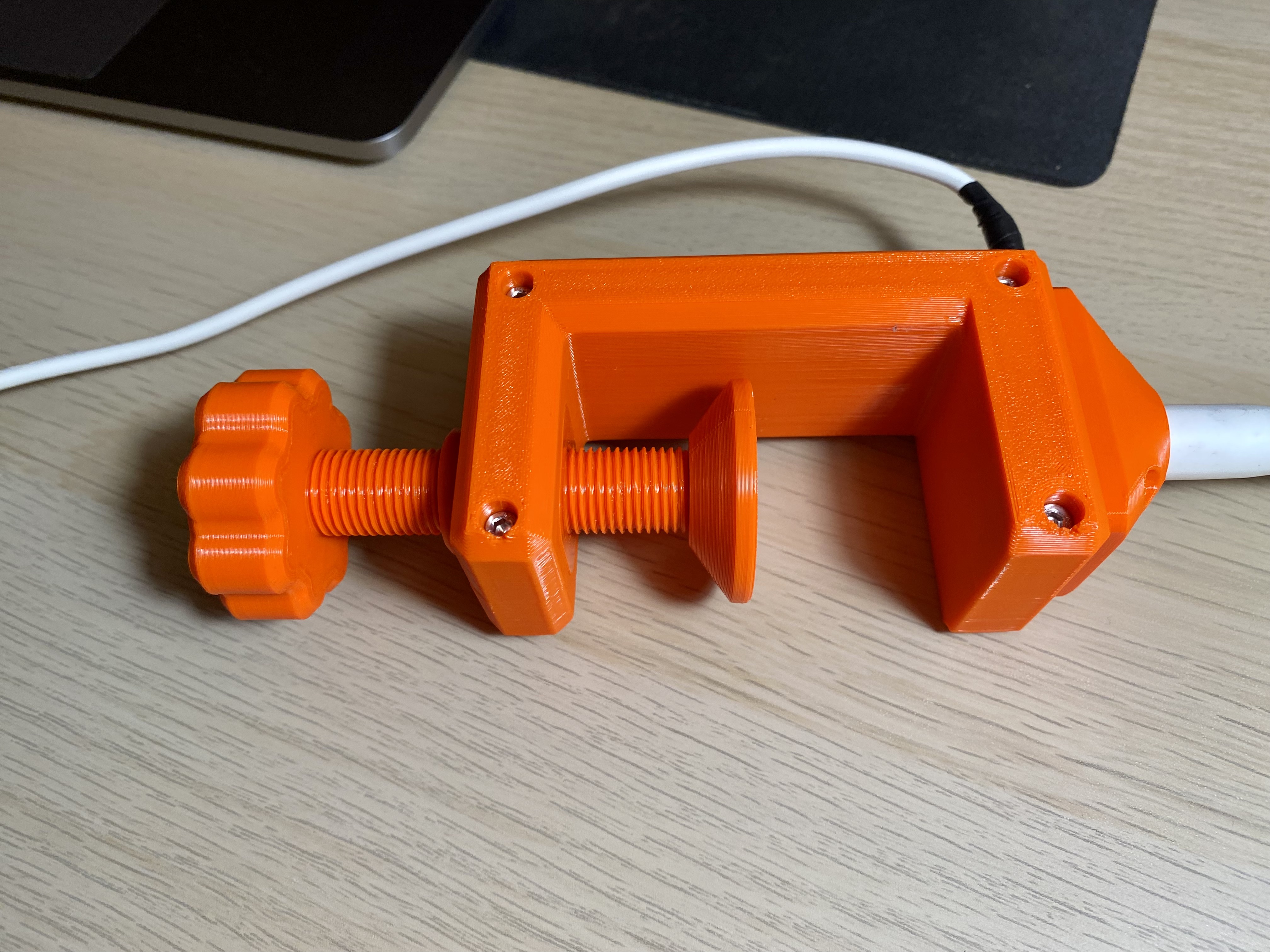

This model is aimed to replace the broken spring clip for the IKEA Navlinge table lamp that tends to break when attached to a thick table deck for a while. Minimal deck thickness: 15 mm. Maximum deck thickness: 50 mm. DisassemblyThe original mount clip could be simply unscrewed without any issues. Then, wires could be simply unsoldered after removing the heat-shrink isolation to completely remove the broken clip. Print SettingsThe table below contains the print settings used to build the model. PropertyValueFilamentPETG, ABSInfill20%Walls5Top/bottom layers5Layer0.2Please note: As the thread is designed without a tolerance gap, it's advisable to adjust the X-Y hole compensation in the slicer when printing the nut (a 0.2 setting should suffice for PETG). Extra BOMScrew M3x30 SHCS - 4Screw M3x16 SHCS - 4Screw M3x10 BHCS - 1Shim M3 - 1Nuts M3 - 4
Tags: ikea, replacement, fix, replacementpart, navlinge, resin print, nz made, made to order
Design credit: Original design by JetSteam - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
IKEA Navlinge Mount Replacement is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
