MK3 + Delta PSU Support Bracket

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~88 g

Print time

~0 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

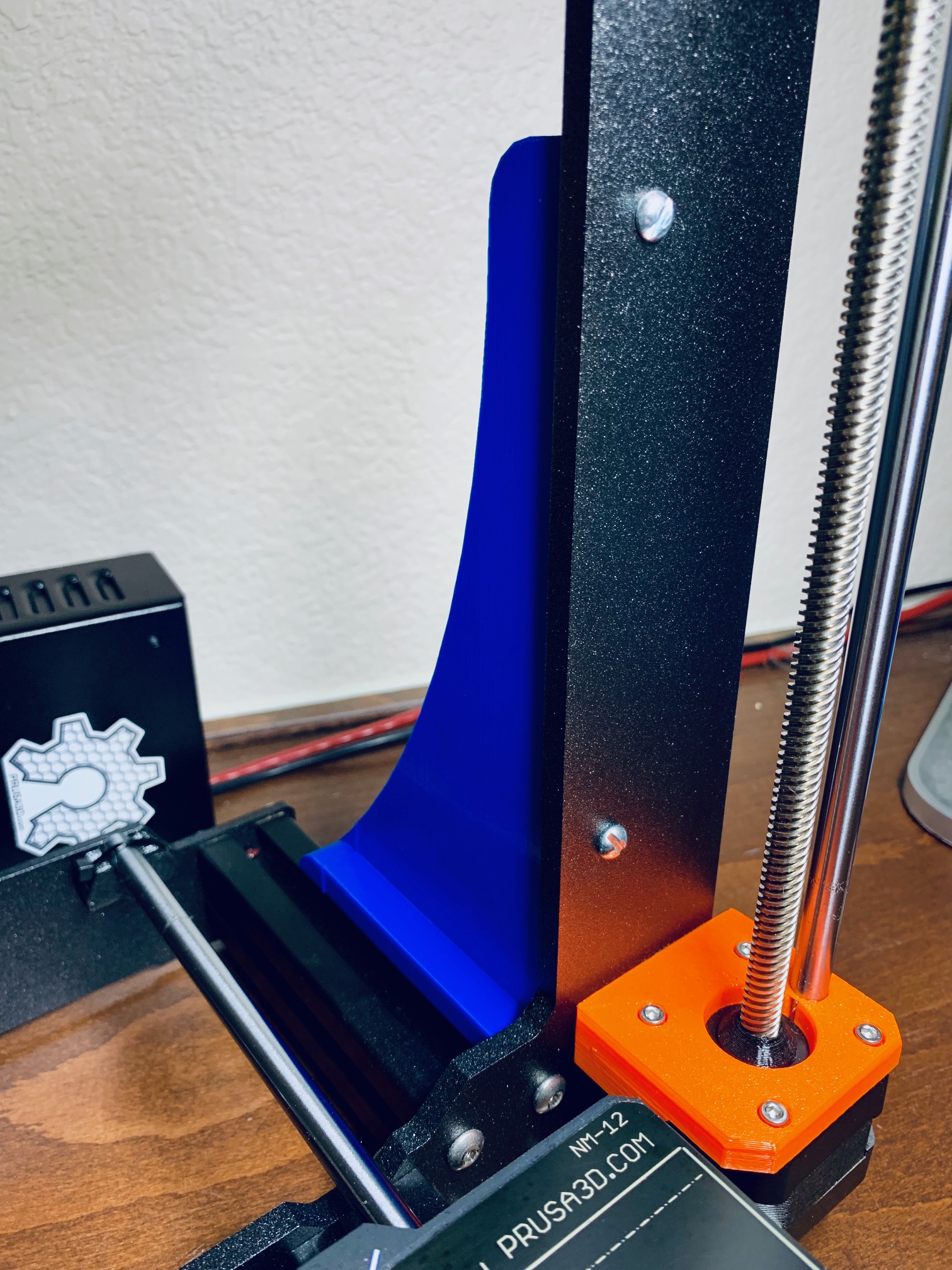

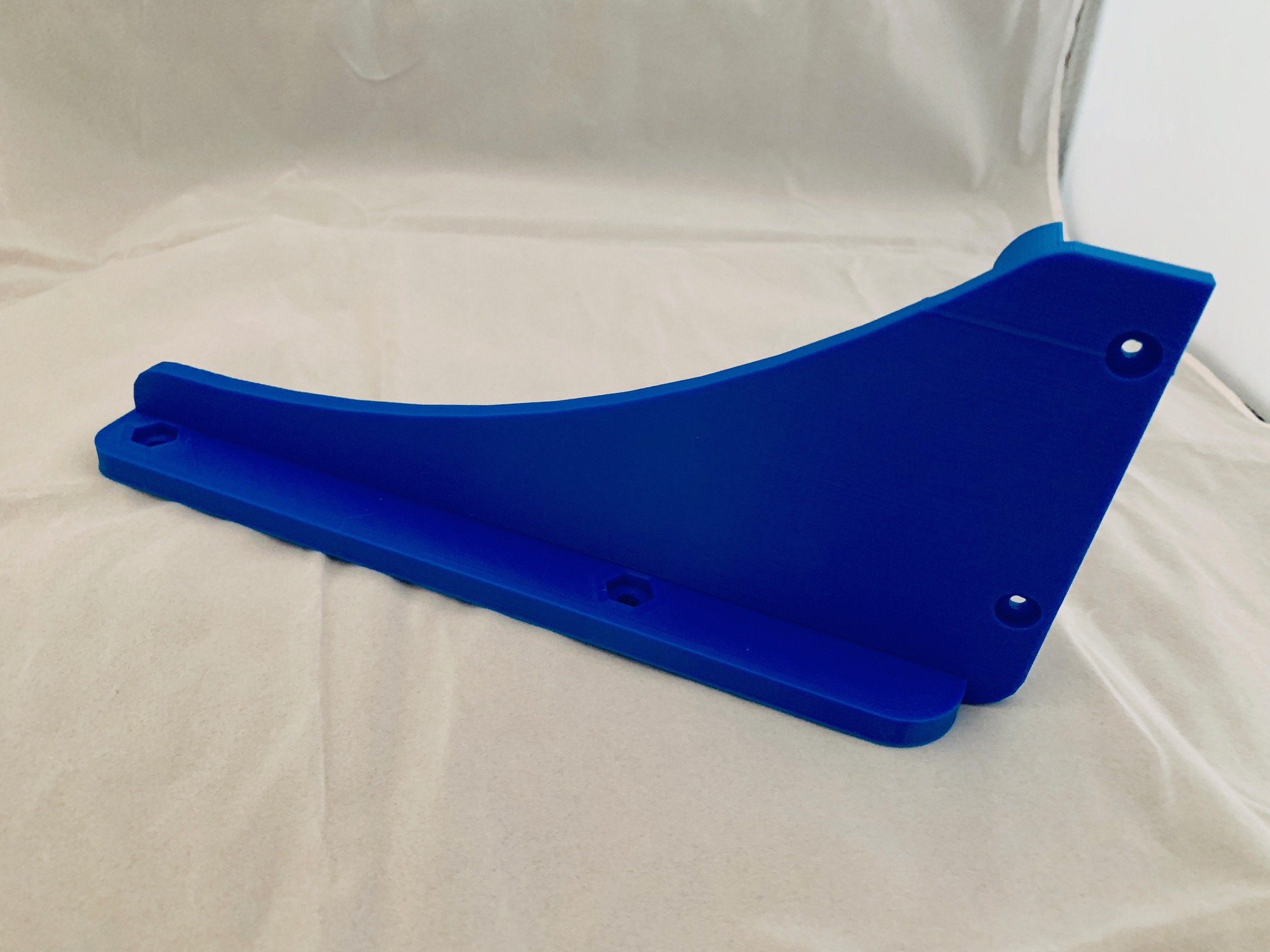

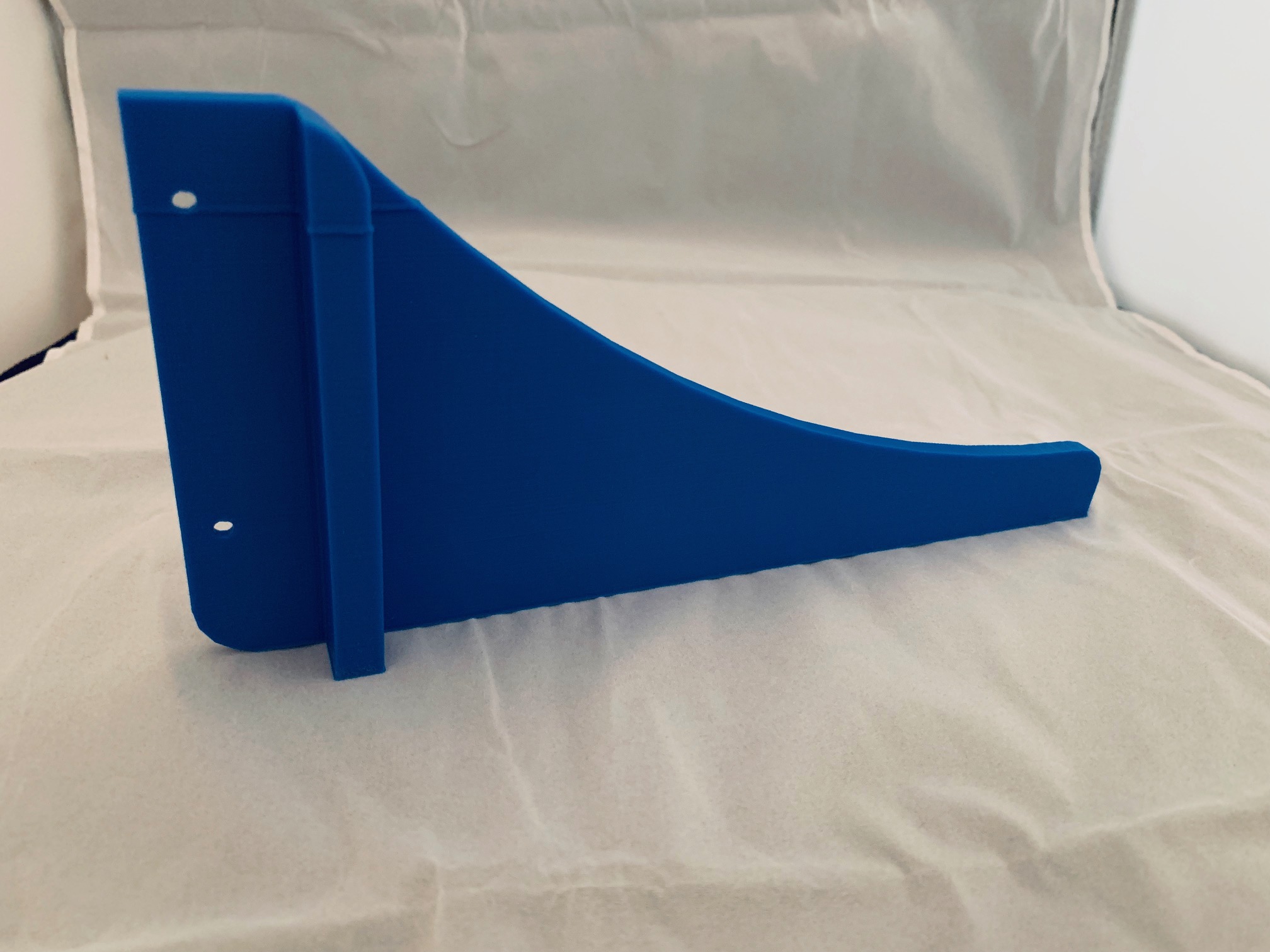

Support bracket for the MK3 with the new Delta PSU. This is used when removing the PSU to make an enclosure for printing things like ABS. (Power supplies don't appreciate the heat like ABS filament does!) Print instructionsSuggested Settings Slic3r PE .15 quality with the following modifications: 6 perimeters (prevents infill in the large sail support) 50% infill (for more rigidity) Other notes Print it so the hex nut holders are facing up. I didn't need supports, a raft, or anything else. You'll need to replace the PSU upright bolts when attaching this stand with a bolt/nut. I used #8-32 button-head bolts to secure the uprights, but the hole and hex inset should fit metric bolts as well.
