Prusa Bear PSU Replacement Brace

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~76 g

Print time

~0 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

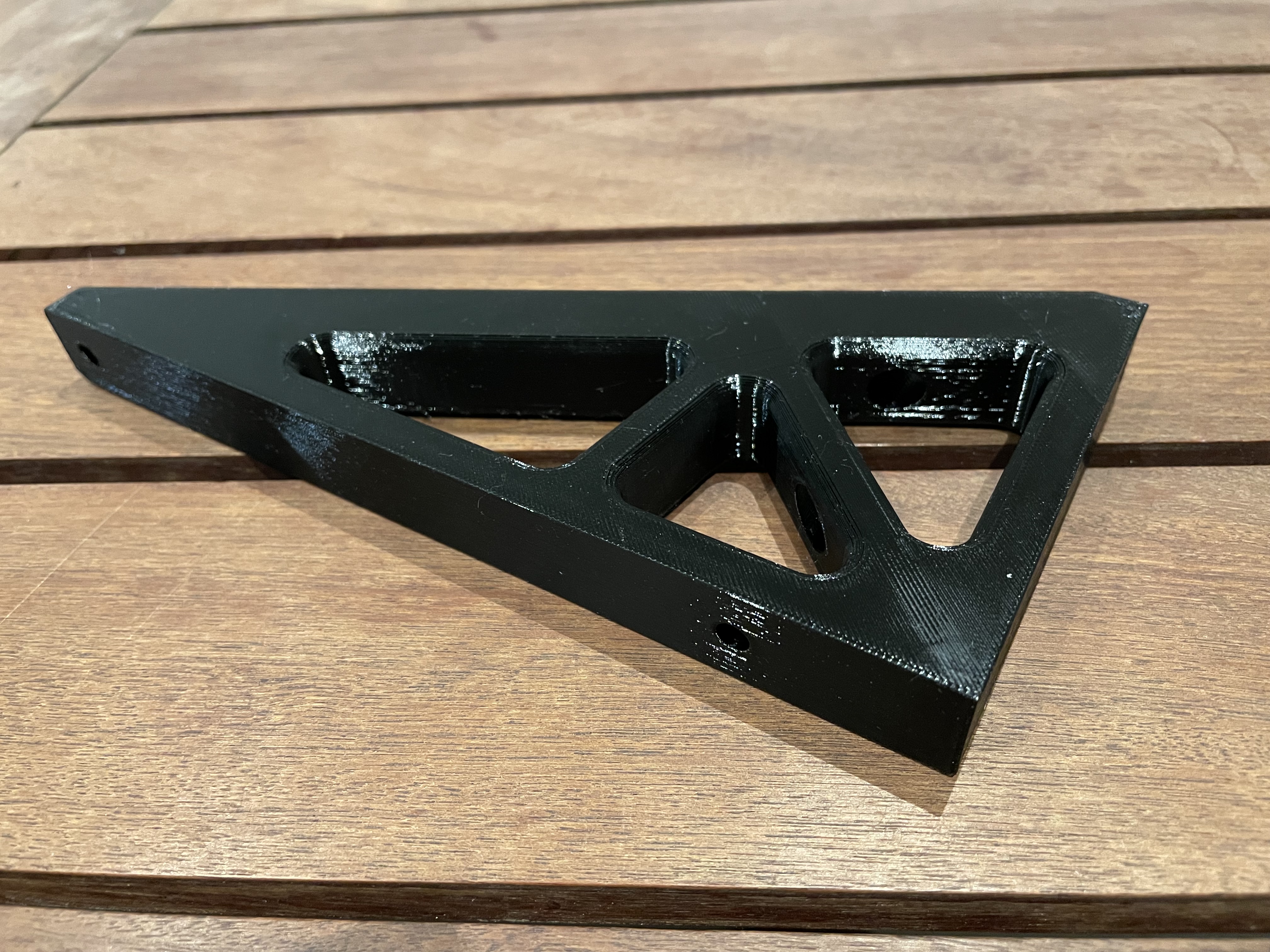

After placing my Prusa i3 Mk3S Bear Upgrade in an enclosure I realised it would be better to remove the power supply unit (PSU) and place it outside the enclosure to improve cooling. I searched for a replacement brace but the Bear Upgrade uses a 2040 extrusion for the z-axis frame and I couldn't find one that was suitable so I decided to create one from scratch. This one is a 200 x 100 mm 90 degree brace with a thickness of 20 mm in order to match one half of the 20 x 40 mm extrusion. It could be used for other applications as well. For the Bear 2040 extrusions you will require three M5 x 10 mm bolts and three drop in M5 tee-nuts. I used M5 hexagon flat head screws that I had left over from the Bear upgrade. For the print I used three perimeter layers and set the top and bottom to six layers for a little extra strength. I printed with PETG because it is slightly stronger and able to operate in a warmer environment. I have also included a file for PLA if that's what you would prefer.
