Xiaomi Aqara square Temperature and humidity Sensor Bracket for screw or zip-tie

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~24 g

Print time

~1.3 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

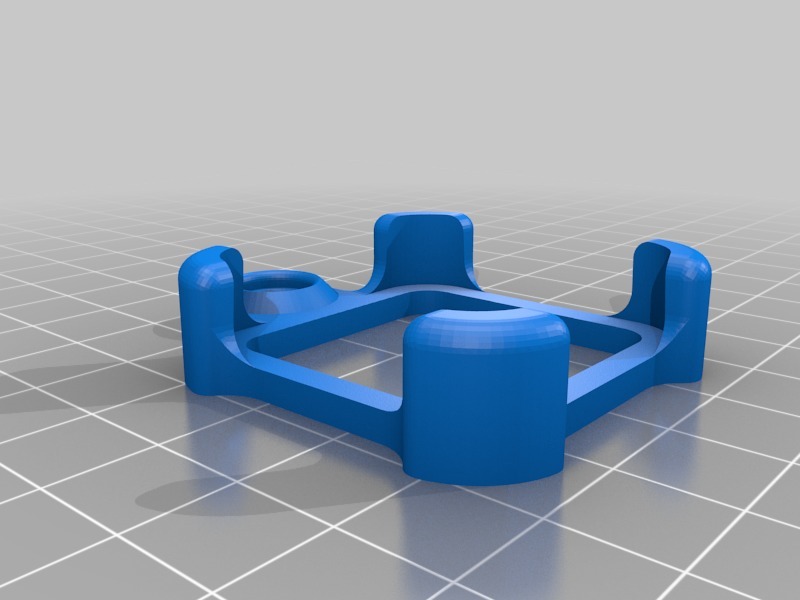

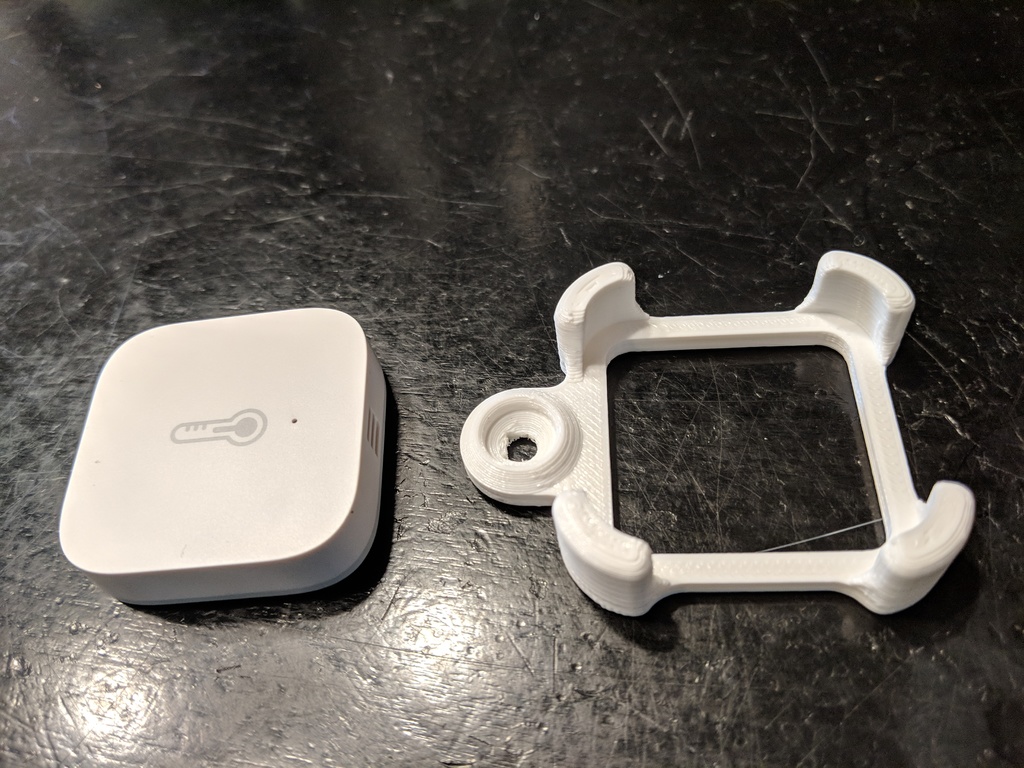

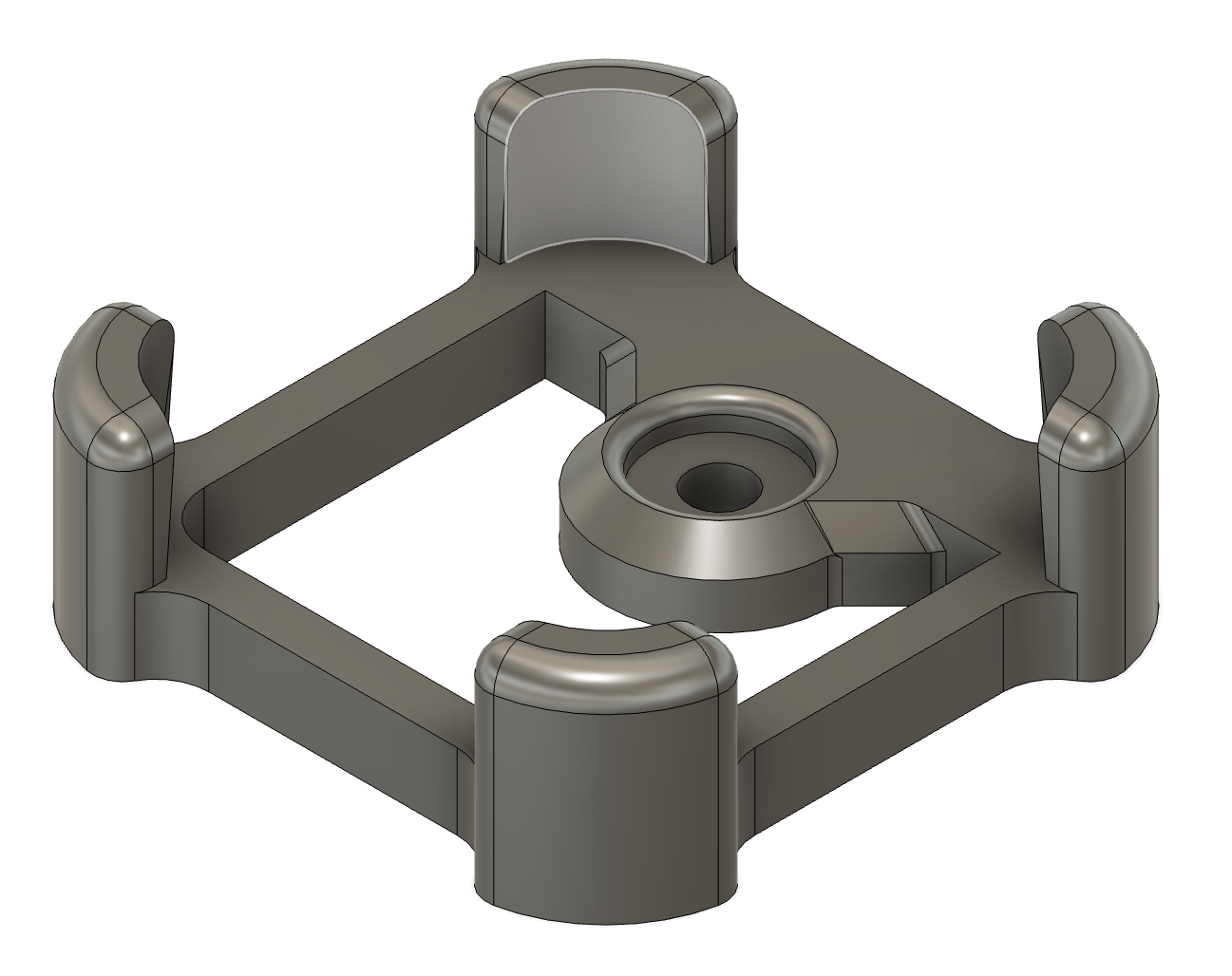

Holds the square Xiaomi temperature and humidity sensor. (I think this is the Aqara version?) It mounts with a common drywall screw, or with a zip-tie. (There's a flat bit at the top of the screw hole to make zip-tie mounting a little easier). I tried to minimize material usage on this one. The sensor is not quite a cube (the top is not as wide as the bottom) and the 4 prongs on this holder have a 6 degree chamfer to hold the sensor in place. I made this to use with @Galto2000 Stevenson screen for wireless meteorological sensor, so I can safely mount this sensor outdoors. UPDATE Nov 18 2022 At the request of Chaoz, I've added a variant with the screw behind the sensor instead of above. To keep the screw recessed below the sensor, the holder depth increased by 2mm. This has been printed and the fit verified. Print SettingsPrinter Brand: Prusa Printer: Prusa Clone Rafts: No Supports: No Resolution: .2 Infill: 20% Filament: Hatchbox PLA White Category: Household
